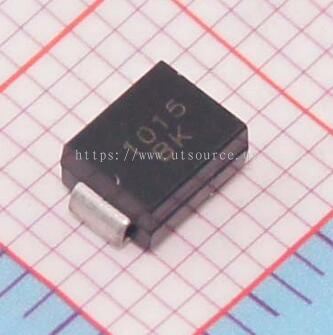

BUY SMBJ14-E3/5B https://www.utsource.net/itm/p/8648536.html
| Parameter |
Symbol |
Conditions |
Min |
Typ |
Max |
Unit |
| Breakdown Voltage |
V(BR) |
I_T = 1 mA |
|
14.0 |
|
V |
| Operating Junction Temp. |
T_J |
|
-55 |
|
150 |
°C |
| Pulse Power Dissipation |
P_P |
t_P = 10 ms, T_A = 25°C |
|
600 |
|
W |
| Reverse Current |
I_R |
V_R = 14 V, T_J = 25°C |
|
1.0 |
|
μA |
| Capacitance |
C |
f = 1 MHz, V_R = 0 V |
|
130 |
|
pF |
Instructions for SMBJ14-E3/5B:
- Mounting: Ensure the device is mounted on a PCB with adequate clearance to prevent short circuits and ensure proper heat dissipation.
- Handling: Use appropriate ESD protection measures during handling and installation to avoid damaging the component.
- Soldering: Follow recommended soldering profiles to avoid thermal damage. Peak reflow temperature should not exceed 260°C.
- Testing: Test the device under specified conditions (e.g., at room temperature) to ensure it meets the required performance parameters.
- Storage: Store in a dry environment to prevent moisture damage. Follow the manufacturer’s guidelines for storage duration and conditions.
(For reference only)
