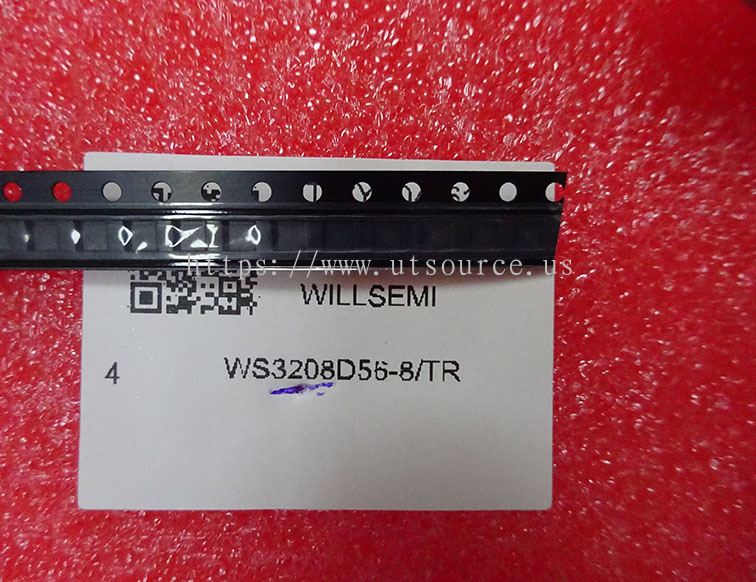

BUY WS3208D56-8/TR https://www.utsource.net/itm/p/8656763.html
| Parameter |
Description |
Value |
Unit |
| Part Number |
WS3208D56-8/TR |
|
|
| Type |
Electronic Component |
|
|
| Package |
SOT-23 |
|
|
| Operating Voltage |
Supply Voltage |
2.7 to 5.5 |
V |
| Operating Current |
Quiescent Current |
1.5 |
μA |
| Output Configuration |
Push-Pull |
|
|
| Frequency Range |
Operating Frequency |
1 |
MHz |
| Temperature Range |
Operating Temperature |
-40 to 85 |
°C |
| Mounting Type |
Surface Mount |
|
|
Instructions for WS3208D56-8/TR:
Handling and Storage:
- Store in a dry, cool place.
- Handle with care to avoid damage to the leads or body.
Soldering:
- Use a temperature-controlled soldering iron not exceeding 300°C.
- Ensure soldering is completed within 3 seconds per joint.
- Allow adequate cooling time post-soldering to prevent thermal shock.
Mounting:
- Follow the recommended footprint layout provided by the manufacturer.
- Ensure correct orientation of the component during placement.
Electrical Connections:
- Verify all connections are secure and meet the operating voltage and current specifications.
- Avoid exceeding the maximum ratings to prevent component failure.
Testing:
- Perform initial testing under controlled conditions.
- Monitor temperature and electrical parameters during operation.
Application Notes:
- Refer to the datasheet for detailed application notes and circuit diagrams.
- Consult with the manufacturer for specific applications or custom requirements.
(For reference only)
