Description
Jikowa Deco Panel is a modern, simple stripe-corrugated profile which combines strength with lightness, rigidity and economical, ideal for both commercial and residential applications. Jikowa Deco Panel utilizes hidden screw concept to prevent rusting aesthetic look in the long run, and also available as a single skin sheet.
Due to its flexible curve feature, it can be used to build up an insulated system, over clad an existing wall or on its own to provide a solid weatherproof covering on any building. The most special feature of Jikowa Panel is its ability to bend easily following the wall curve shape.
Characteristics & Advantages
Able to bend easily following the wall curve shape
Aesthetic Appearance
Environmental Friendly
Low Maintenance
Lightweight Solution
Non-combustible
Protection & Strength
Design Flexibility
Variety of Colors
Application
Facade
Wall Cladding
Facial Wall
Interior & Exterior Decoration
Signboard
Specification
| Profile | Jikowa™ 305 Deco Panel |
| Effective Width | 305 mm |
| Steel Grade | Zincalume G300 Steel, Zincalume G550 Steel |
| Finishing | Zacs, Zacs Cool, Zacs Natural, Vermoe, Colorbond |
| Recommended Screw | DSTH 310 |
| Thickness Available | 0.36 mm, 0.40 mm, 0.47 mm |
| Tolerance | Length ± 2 mm, Width ± 2 mm, Metal Thickness ± 0.03 mm |
|
Thickness BMT (mm) |
Thickness TCT (mm) | Weight (kg/meter) |
| 0.30 | 0.36 | 1.10 |
| 0.35 | 0.40 | 1.30 |
| 0.42 | 0.47 | 1.50 |
.png)

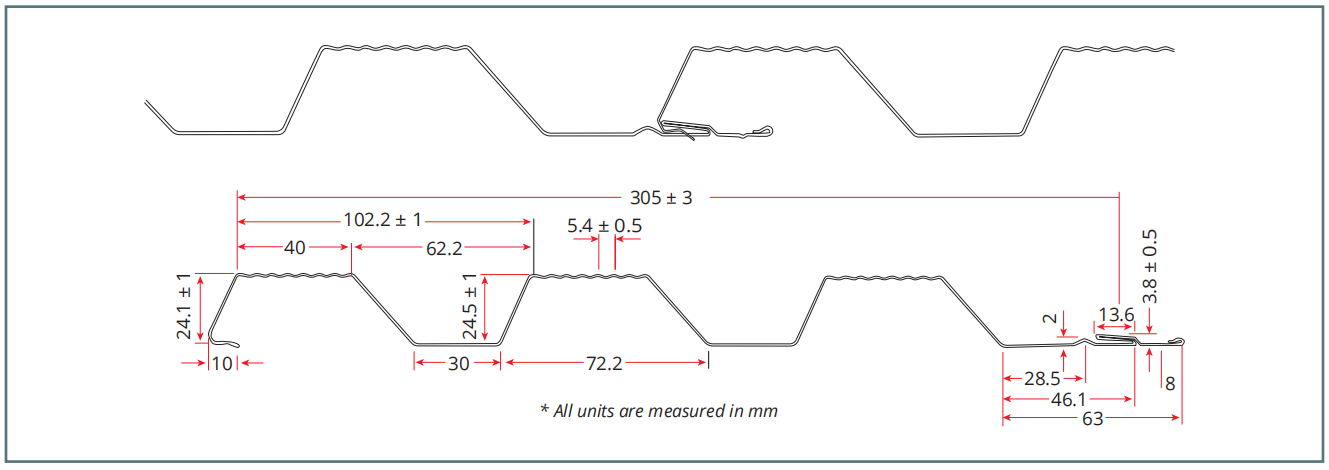

Specification Drawing
.png)
Recommended Installation Specification
| Thickness TCT (mm) | Recommended Max. Length (m) |
Recommended Span (mm) |
Available Color |
| 0.36 | 6.0 | 1200 | Zacs Natural, Element |
| 0.40 | 10.0 | 1500 | Zacs Natural, Element |
| 0.47 | 12.0 | 1500 | Vermoe |
.png)
Material warranty on perforated by corrosion (term & condition apply)
Up to 10 years – Bluescope Zacs Cool AZ90, Bluescope Zacs Natural AZ90

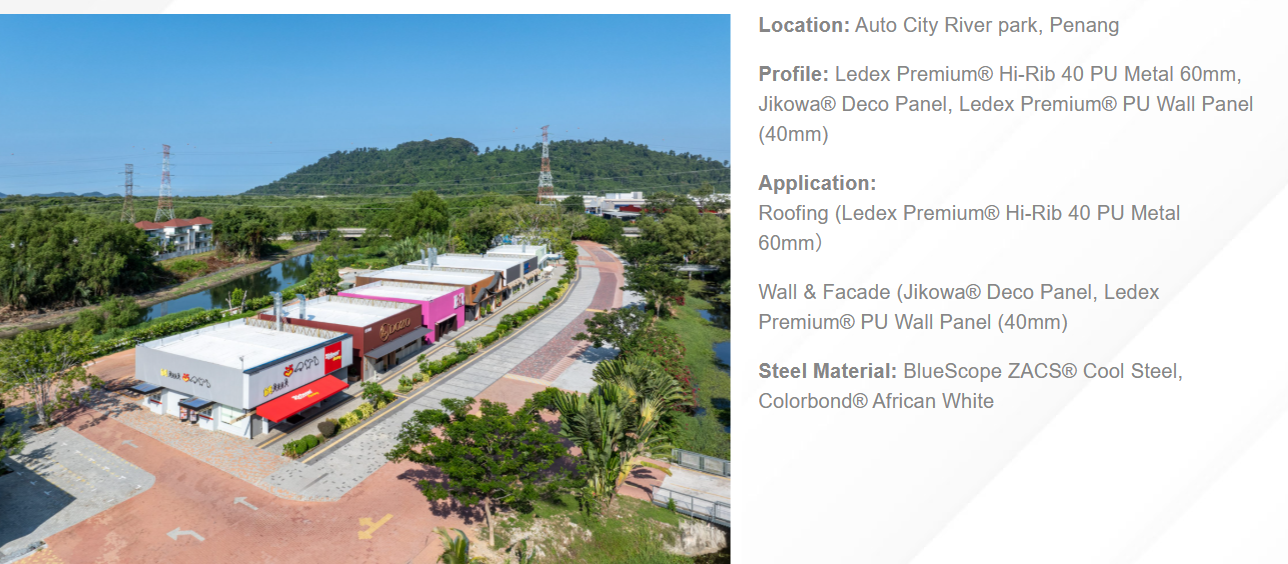

Project Reference
.png)
Malaysia
