Description

IMITOS LED T8 Casing 1.2M SJ-120 Iron Fitting

The IMITOS LED T8 Casing 1.2M (Model: SJ-120) is a premium, heavy-duty 4-foot iron light fitting designed for residential, commercial, and industrial LED upgrades across Malaysia. Built with a robust white-coated iron chassis and signature blue T8 holders, it measures a slim 1200 × 34 × 17.5mm. It provides a reliable, safe, and modern housing solution for energy-saving single-ended or double-ended 1.2M T8 LED tubes, guaranteeing easy installation and long-lasting thermal stability.

Full Detailed Description:

Optimal Standardized Dimensions for Easy Retrofitting
Replacing old, humming fluorescent fixtures with sleek LED alternatives has never been simpler. The IMITOS SJ-120 boasts exact physical dimensions of 1200mm in length, 34mm in width, and 17.5mm in depth. In the local Malaysian market, this is universally recognized as a standard 4ft (4 Kaki) / 1.2-meter casing. Its ultra-slim profile ensures that it remains low-profile and visually unobtrusive when mounted directly onto walls or ceilings. Whether you are outfitting a narrow corridor, a vast office floor, or a kitchen ceiling workspace, its streamlined silhouette offers a clean layout without bulky visual clutter.

Universal T8 Holder Compatibility
The core of the SJ-120's design relies on its integrated T8 Holder system. It is pre-wired and structurally configured to accept standard 1.2M LED T8 tubes. Because modern LED tubes bypass the traditional, power-hungry ballast and starter assemblies used by obsolete fluorescent tubes, this casing features a direct-wiring setup. This translates to an immediate reduction in standby energy consumption, zero annoying hums, and instant-on illumination when flicking the light switch. The blue rotatable socket mechanisms firmly lock the tube pins in place, eliminating the risks of loose connections, flickering lights, or accidental drops during routine maintenance.

Versatile Applications Across Malaysia
From cozy residential kitchens to high-traffic commercial spaces, the utility of the IMITOS 1.2M iron light fitting spans multiple sectors:

• Residential Homes: Perfect for living rooms, kitchens, dry yards, and residential garages where bright, reliable overhead lighting is critical.
• Commercial Offices: Ideal for creating seamless continuous rows of modular lighting over corporate desks, meeting rooms, and reception areas.
• Retail Shops & Cafes: Offers a sleek, minimal aesthetic that can either hide beautifully against white walls or stand out cleanly in raw industrial minimalist decors.
• Industrial Warehouses & Corridors: Strong iron framing makes it robust enough to handle the minor vibrations and dust levels typical of covered loading bays and walkways.

Quick and Safe Installation Guide
Engineered for efficient field deployment, the IMITOS SJ-120 casing features pre-punched mounting holes located evenly along the spine of the iron channel. This permits immediate anchor anchoring into timber, masonry, or light-gauge steel frameworks. Ample rear and center knockouts allow clean wire entry from any standard concealed ceiling point, hiding raw electrical connections behind the white iron cover plate. Simply attach the casing to your chosen structural surface, connect your incoming AC live and neutral lines directly to the T8 holder block, pop on the cover plate, twist your 4-foot LED T8 tube into place, and your space is instantly illuminated.


• Model: SJ-120
• Holder: T8 Holder
• Color: White Casing,Blue Holder
• Materials: Iron Casing

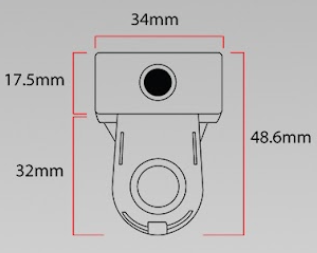

• Size: 1200*34*17.5mm

Q1: Can I use an old fluorescent tube inside the IMITOS LED T8 Casing SJ-120?
A: No, you cannot. The IMITOS SJ-120 is designed exclusively for energy-efficient LED T8 tubes. It does not contain an internal ballast or starter, which traditional fluorescent lights require to ignite gas. Running an old fluorescent tube in this casing will result in the light failing to turn on.

Q2: What are the exact dimensions of the IMITOS SJ-120 1.2M light casing?
A:The exact physical dimensions are 1200mm in length, 34mm in width, and 17.5mm in height/depth. It is perfectly optimized for all standard 4-foot (4ft) lighting installations across Malaysia.

Q3: Is the IMITOS T8 Casing made of metal or cheap plastic material?
A:The IMITOS SJ-120 is manufactured using a heavy-duty Iron Casing body coated in a premium white enamel. This provides vastly superior durability, resistance to bending, and better passive heat dissipation compared to thin PVC or plastic alternatives.

Q4: Does the IMITOS LED T8 Casing SJ-120 come with a single-ended or double-ended wiring configuration?
A:The IMITOS SJ-120 is easily customizable but generally arrives pre-wired to support standard local LED tubes. Always cross-check your LED tube's specific power input instructions (Single-Ended or Double-Ended AC input) before making final terminal block connections.

Q5: Is an LED tube included when I purchase the IMITOS LED T8 Casing 1.2M?
A:No, this product SKU is for the casing/fixture only. It includes the white iron chassis, internal internal wiring harness, and blue T8 pin holders. The 1.2M LED tube must be selected and purchased separately according to your desired color temperature (e.g., Daylight, Cool White, or Warm White).

Q6: What does the "1.2M" specification refer to in Malaysian light fittings?
A:The "1.2M" stands for 1.2 meters, which equals 1200mm. In typical Malaysian hardware terms, this is widely known and searched for as a standard 4-foot (4 kaki) long lamp position.

Q7: Can this T8 iron casing be installed outdoors exposed to rain?
A:No. The IMITOS SJ-120 is built for indoor use or well-sheltered outdoor zones (like covered carporch ceilings or indoor dry yards). It does not have a weatherproof IP65 rating to resist heavy rain jets or direct water exposure.

Q8: Why are the holders on the IMITOS SJ-120 colored blue?
A: The signature blue color visually denotes a high-quality, reinforced T8 holder socket. It acts as a safety identifier for technicians to instantly recognize the product line while assuring a tight, spark-free grip on your tube's pins.

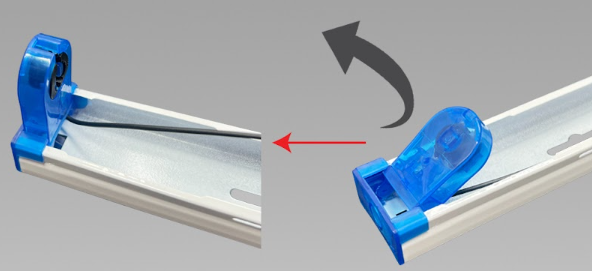

Q9: How do I install or change an LED tube in this IMITOS T8 fitting?
A: Ensure your main wall switch or DB board breaker is off. Align the pins on both ends of your 1.2M LED tube vertically with the blue holder slots, push it firmly into place, and twist the tube 90 degrees until you feel it click securely into position.

Q10: Where can I buy bulk wholesale quantities of IMITOS SJ-120 in Malaysia for project use?
A: Genuine IMITOS lighting accessories can be sourced through verified online distributors on platforms like Shopee/Lazada Malaysia, or via wholesale electrical suppliers headquartered in hubs like Seri Kembangan, Selangor.
