Description
Jikowa Panel Louvre System is a classic architectural louvre solution designed for straight, curved, and angled façade applications.
Jikowa Panel Louvre System is available in multiple carrier angles (0°, 25°, and 45°), allowing flexible design options to meet different aesthetic and functional requirements in both commercial and architectural applications.
Characteristics & Advantages
Suitable for straight, curved, and angled façade applications
Elegant, lightweight appearance with smooth curved edge design
Roll-formed steel construction for high precision and consistency
Stronger and more durable than standard aluminium louvre systems
Manufactured using BlueScope Steel Element™ material for enhanced quality and reliability
High durability, ideal for long-term architectural use
Modern aesthetic finish suitable for commercial and architectural projects
Versatile system supporting both functional and decorative façade designs

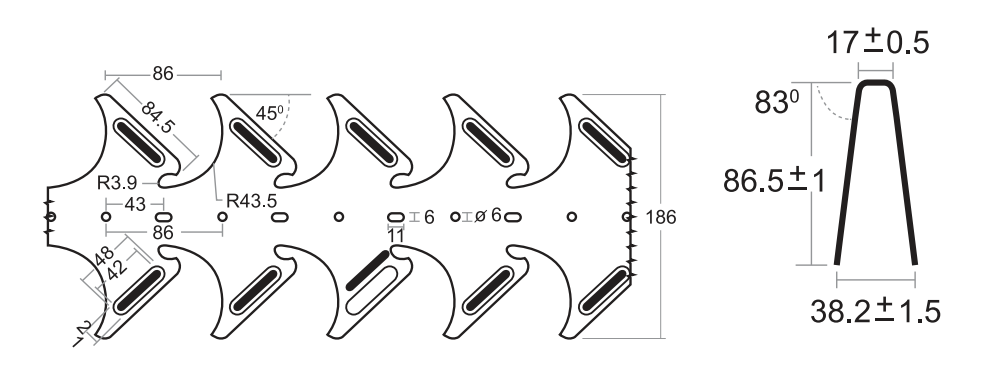

Specification
| Profile | Jikowa™ Louvre Carrier 191 |
| Dimension | 17 mm (Width) x 86.5 mm (Height) x 1000 mm (Length) |
| Steel Grade | Zincalume G300 Steel |
| Finishing | Zincalume |
| Available Thickness (TCT) | 0.60 mm |
| Weight | 0.85 kg / meter |
| Pitch | 45º |
| Tolerance | Length ± 0 mm, - 3 mm, Thickness ± 0.03 mm |
.png) |
.png) |

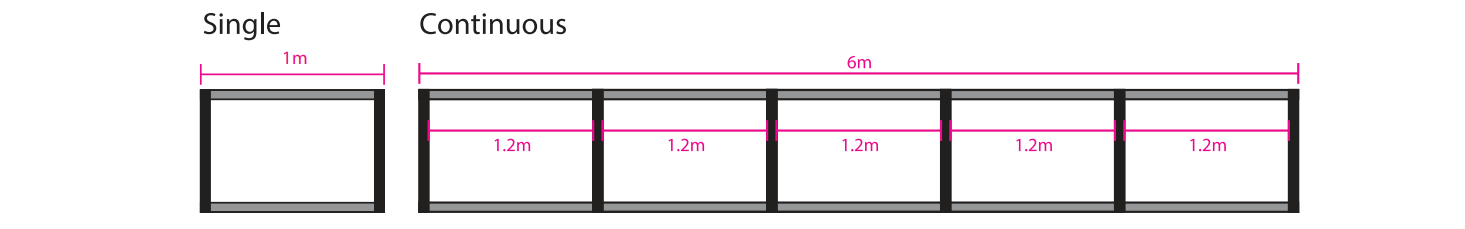

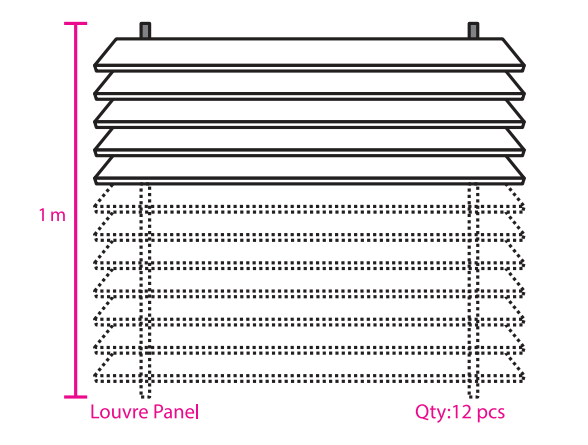

Installation Guides
.png)
.png)

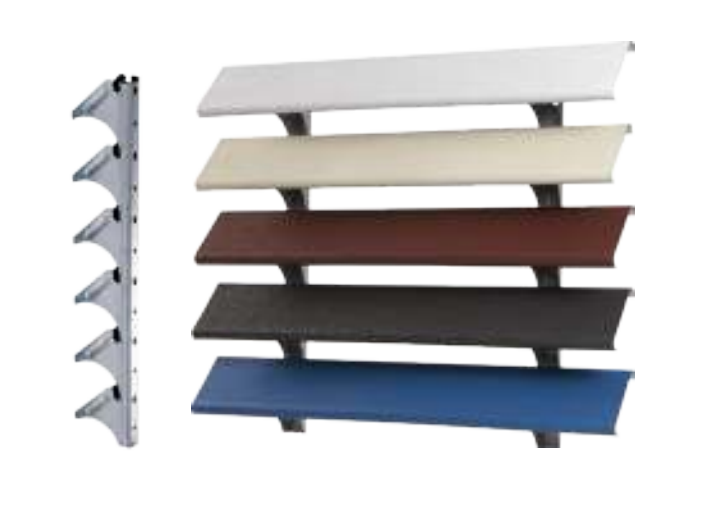

Colour
Material warranty on perforated by corrosion (term & condition apply):
Up to 10 years – Bluescope Zacs Cool AZ90, Bluescope Zacs Natural AZ90

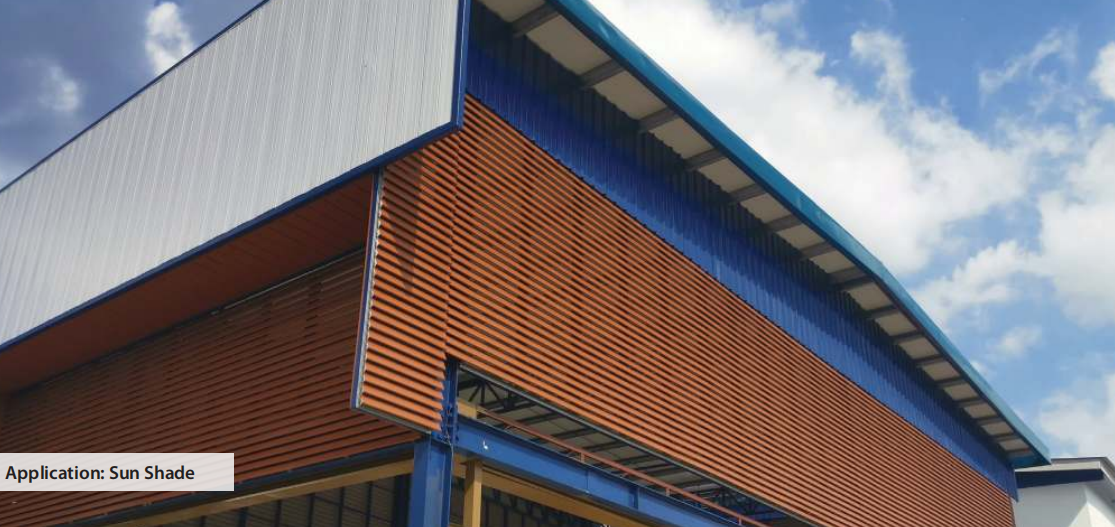

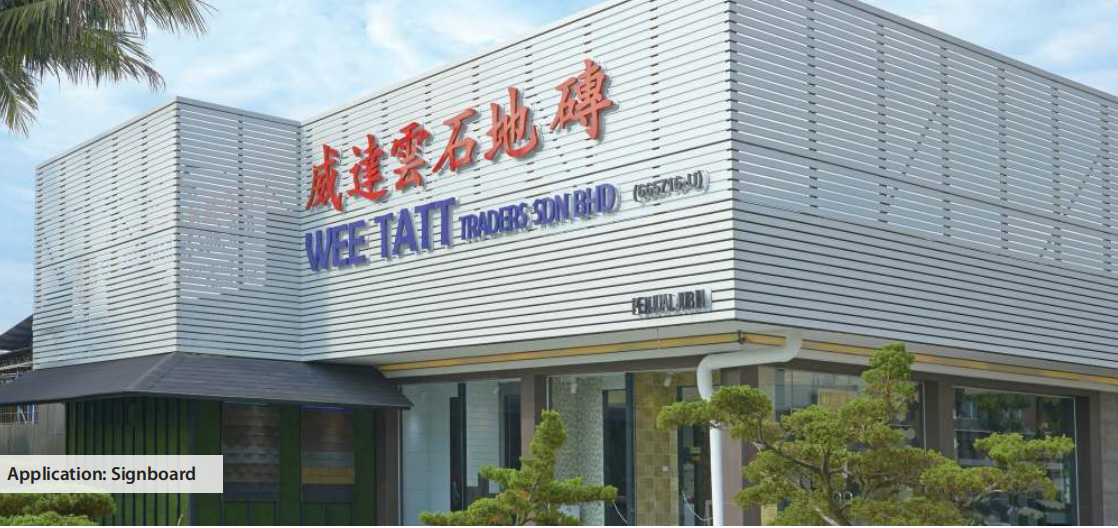

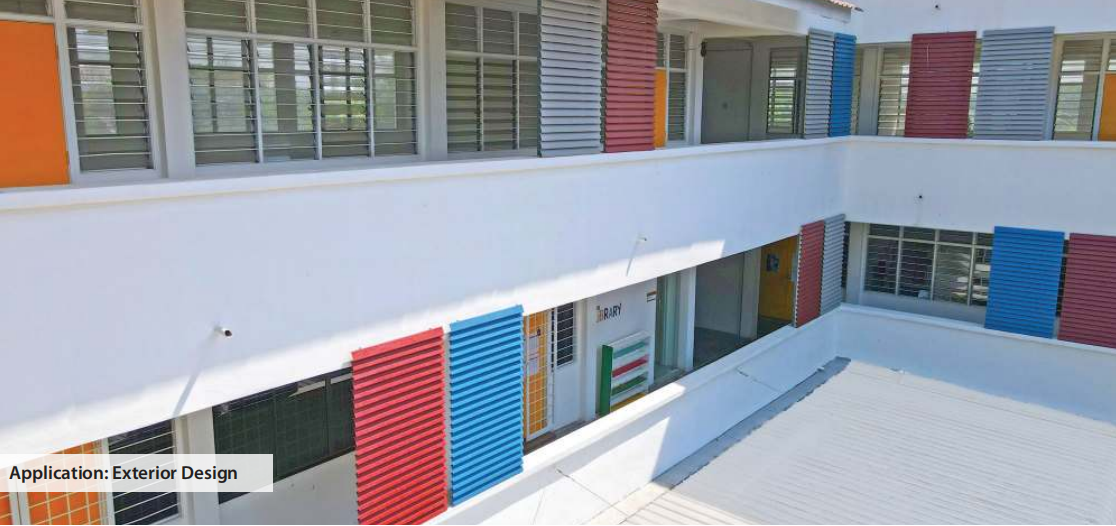

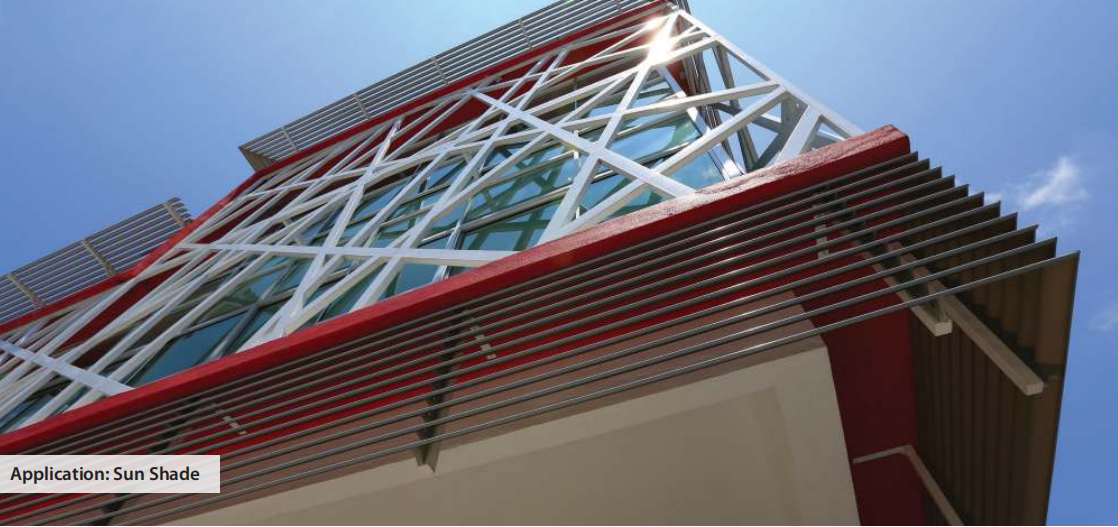

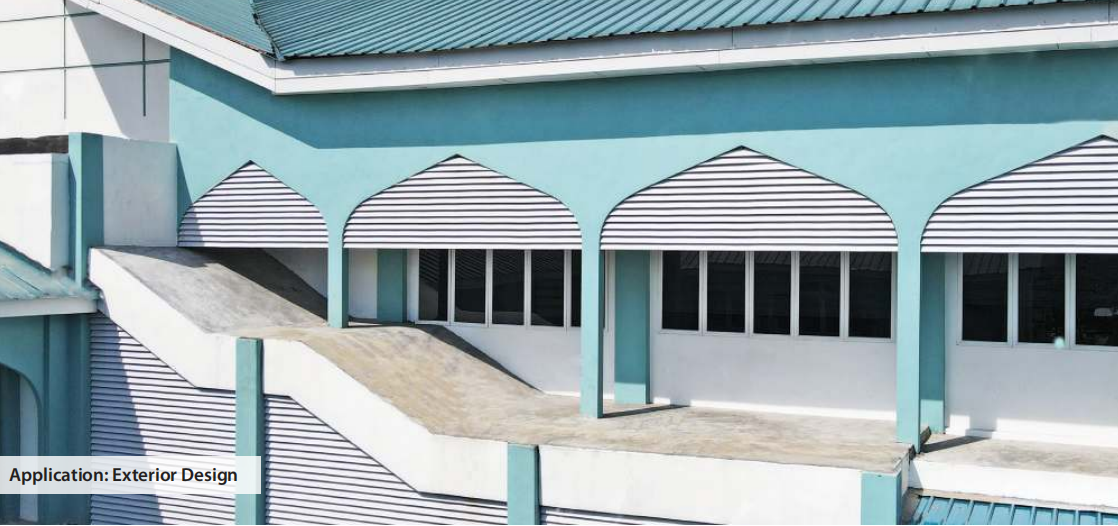

Application
.png)
.png)
