COMMAX Audio Intercom

TP-6RC ( 6 units )
TP-12RC ( 12 units )

Commax TP-6RC Interpone for Commax 6 Stations Interphone System
Commax TP-12RC Interpone for Commax 12 Stations Interphone System

FEATURES:

~ Calling and paging

~ Variable system composition up to 6 units of TP-6RC
~ Variable system composition up to 12 units of TP-12RC

~ ID setting enabled with dip switch

~ Effective calling to all units by paging function

✅ Supports up to 12 units TP-12RC (without outdoor station)

✅ Supports up to 11 indoor units with intercom communication

✅ No fixed Master or Sub unit

✅ You can set any indoor phone as the Master unit by adjusting the DIP switch settings

✅ All TP-12RC units can call each other

✅ Supports full two-way communication (intercom)

SPECIFICATIONS

~ Power Source: DC12V, 200 mA (RF-12015S)

~ Wiring: Common 4 wires

~ Mount type: Surface-mounted type

~ Distance: 500 m (0.65Ø)

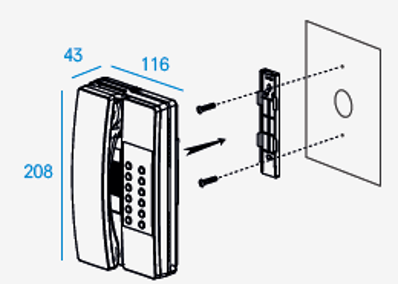

~ Dimension (mm): 116 (W) x 208 (H) x 43 (65) (D)

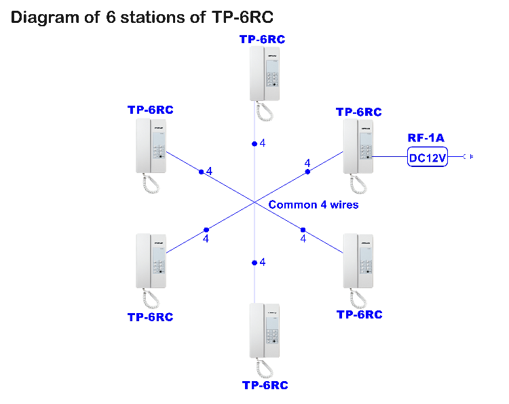

Wiring Diagram
