Features

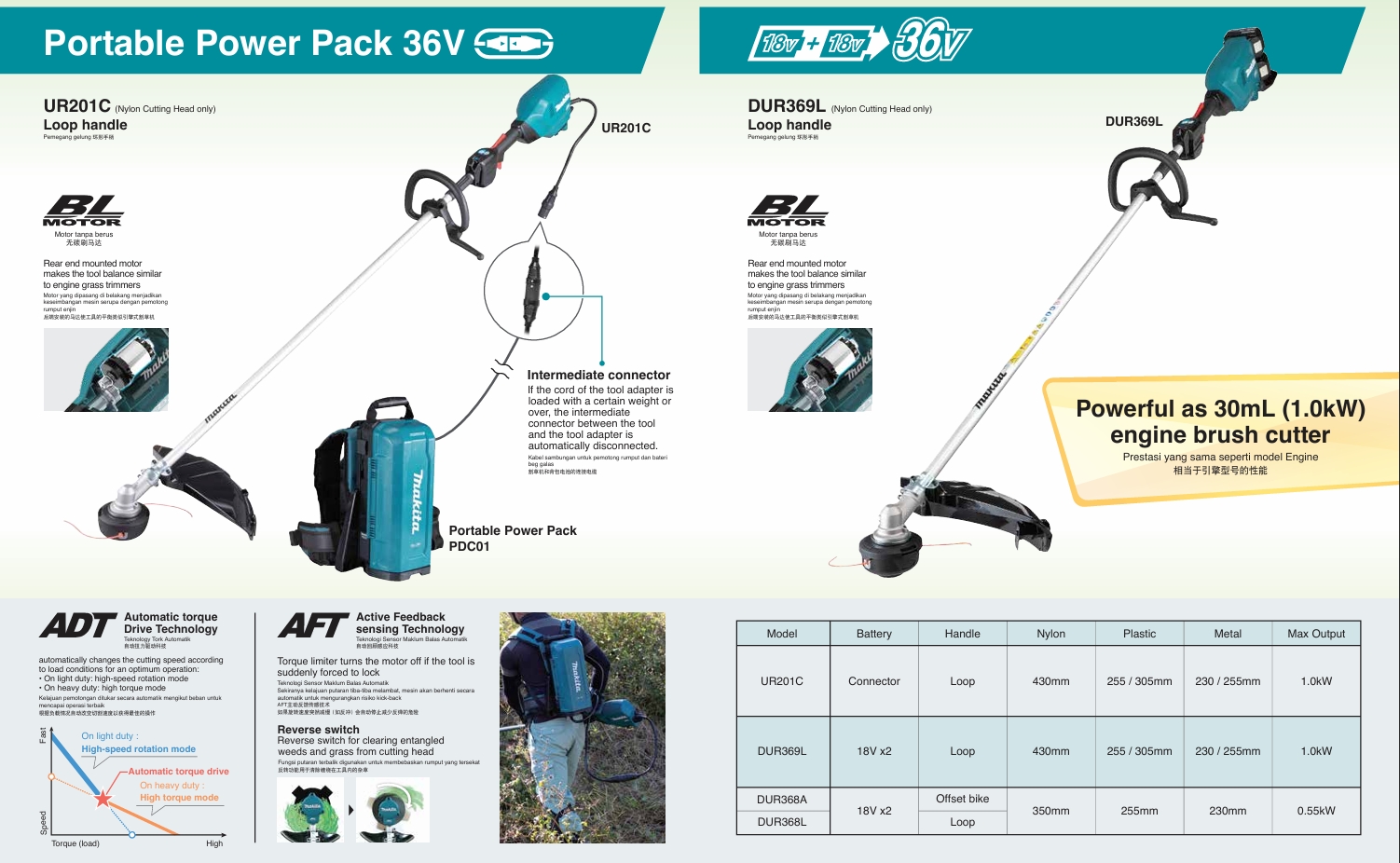

-Powered by PDC01/ PDC1200 portable power pack
-Excellent ability to perform continuous cutting achieved by high cooling capacity that suppresses heat generation of the controller and motor
-Automatic torque Drive Technology (ADT) adjusts speed and torque during operation for optimum performance
-Active Feedback sensing Technology (AFT) turns the motor off if blade rotation is suddenly forced to stop
-Constant speed control minimizes reduction in rotation speed under load
-3-speed options (Low / Medium / High) allows the operator to match speed to application
-On-tool hex wrench for fast and easy blade changes and keeping it from lost
Specification
Specification
Spindle Size M10 x 1.25 LH
Max Output 1,000 W
Cutting Width Metal Blade: 255 mm (10")
Plastic Blade: 255 mm (10")
Nylon Cutting Head: 430 mm (17")
No Load Speed (RPM) Metal Blade (3 | 2 | 1):
0 - 7,000 | 0 - 5,500 | 0 - 4,600
Nylon Cutting Head (3 | 2 | 1):
0 - 5,500 | 0 - 5,000 | 0 - 4,600
Plastic Blade (305 mm) (3 | 2 | 1):
0 - 7,000/ 0 - 5,500/ 0 - 4,600
Plastic Blade (255 mm) (3 | 2 | 1):
0 - 5,500/ 0 - 5,000/ 0 - 4,600
Dimensions (L x W x H) 1,795 x 400 x 269 mm (70-1/2 x 15-3/4 x 10-5/8")
Net Weight 4.7 kg (10.4 lbs.)
Continuous Usage Time (approx.) Low: 76 min with PDC01 (BL1860B x4)
Metal Blade with Load
Standard Equipment
Metal Blade, Nylon Cutting Head, Plastic Blade, Accessory Bag,
Blade Cover (for Metal Blade), Hex Wrench, Box Wrench, Band Assembly
Available Option
CZ: Without Charger & Battery
