Penerangan

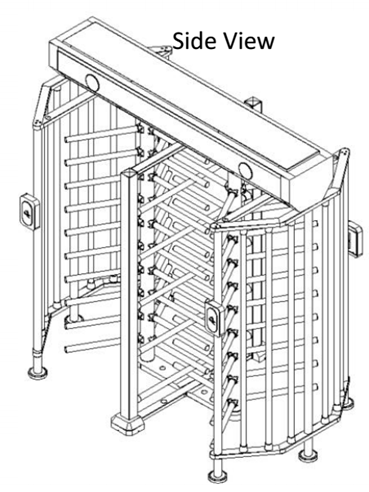

MAG FHG778
Dual Lane Full Height Turnstile

-Full height (outdoor)

-Standard size, modular design
-Semi-auto arm rotation
-Best security medium traffic
-No crawling under or climbing over

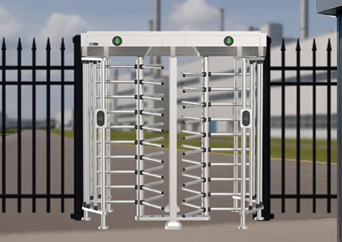

FHG778 semi-auto full-height turnstile is a type of pedestrian gate typically installed at
the outer entrance of a building with an access control reader to restrict unauthorized access.
The tall cage prevents the user from climbing over or crawling under to cheat access without
the supervision of a security guard. FHG778 is the most secured type among all our pedestrian gates.

A robust and tough gate is important especially when you use it outdoors.
An intruder might attempt to exploit a security loophole or vandalize the gate to gain unauthorized access
when it is unattended by the guard.
What if you can solve all these concerns and still without the expensive cost of a European brand?
Our gate offer smarter by design and stronger by structure.

2 in 1 to save space
You can save space with FHG778 compared to installing 2 separate FHG776 full height turnstile.

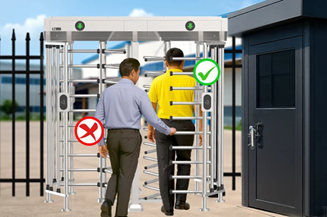

How to cheat a full-height turnstile?
By stopping the arm just before it is locked back after the first authorized person exits,
the intruder can reverse the rotation allowing himself to enter and pass through.
The worst news is that this loophole can be repeatedly used after a single valid access
to allow UNLIMITED unauthorized entry since there is no guard at the site to stop it.

Incorporating Single Level Anti-Reverse (SLAR) technology,
the FHG778 effectively prevents unauthorized access and tailgating,
ensuring only one person passes at a time. Guard can be assigned to all more important tasks
instead of watching the entrance.

Modular Design Efficiency
The FHG778’s components are detachable, reducing welding points,
and reducing manufacturing welding labor costs to offer a more affordable solution without compromising quality.

Robust Durability
Welds are potential failure points, especially at arm joints.
Over time, wear and tear cause cracks or breakdowns.
Constructed with high-quality materials and featuring the innovative InterLoc arm design,
the FHG778 withstands high traffic and environmental challenges, ensuring long-term reliability.

Work harder and longer for you.

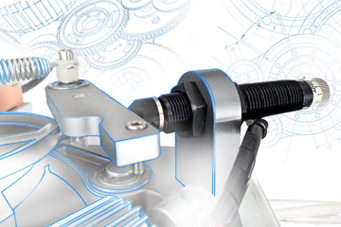

The additional heavy-duty shock absorber in our design effectively reduces impact and
vibration due to rotational momentum during operation to cut down mechanical
wear thus reducing your maintenance cost.

Simplified Maintenance
Stainless steel repairs require skilled welders, leading to longer downtimes and higher service costs.
Damaged components can be replaced individually on-site without specialized welding,
minimizing downtime and maintenance costs. We offer full spare parts and repair services.

Cost-Effective Logistics
The detachable parts allow for packaging that’s 50% more compact,
leading to significant savings in shipping and storage expenses.

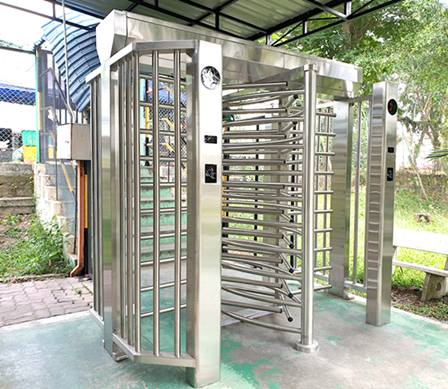

Site implementation:

Specification:

Description	Parameter
Body Material	SS304 stainless steel*

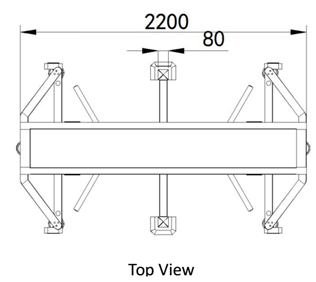

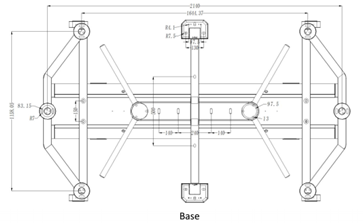

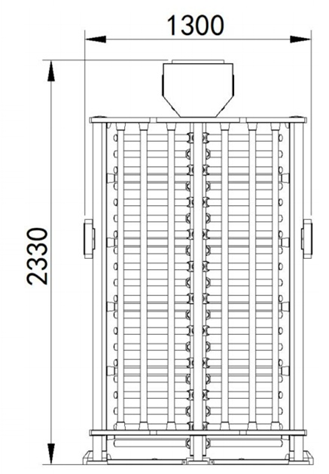

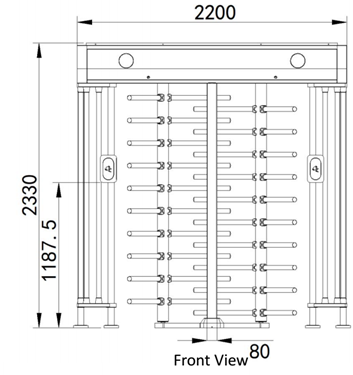

Dimension	2200mm(L) x 1300mm(W) x2330mm(H)
Passage Width	577mm
Optimal flow rate	20 to 25 people per minute
Arm Rotation Angle	120°
Power Supply Input	AC220/110V±10%, 50/60Hz
Power Consumption	60W
Operating Voltage	24V DC
Working environment	Indoor and well-shaded outdoor application
Working Temperature	-25℃ - 70℃
Relative Humidity	≤ 90%, non-condensing
Open Signal	Dry contact signal
Fire / Emergency Alarm	Unlock and free for passing
IP Rating	IP 44
MTBF	3 million cycles
