The David L. Ellis Co., Inc. offers two types of gridded blocks for Rockwell test blocks.

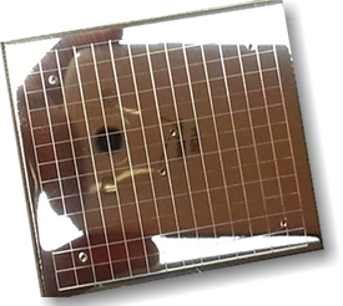

The block has a grid pattern on the whole block. The problem with the design is soft blocks make larger indents and won’t always meet ASTM E18-17e1 for distance between another indent and the edge. To solve this problem, use every other square.

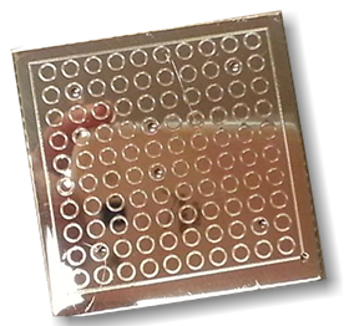

This design will solve the problem of distance between indents to meet the standard. Some customers complained that too much space was wasted. But this is the rule of ASTM E18-17e1.
Rockwell Regular Hardness Test Block
| Part No | Penetrator | Load |
| HRA | C Diamond | 60 Kg |
| HRA | A Diamond (Carbide) | 60 Kg |
| HRBW | 1/16” Ball | 100 Kg |
| HRC | C Diamond | 150 Kg |
| HRD | C Diamond | 100 Kg |
| HREW | 1/8” Ball | 100 Kg |
| HRFW | 1/16” Ball | 60 Kg |
| HRGW | 1/16” Ball | 150 Kg |
| HRGW | 1/16” Ball | 150 Kg |
| HRHW | 1/8” Ball | 60 Kg |
| HRKW | 1/8” Ball | 150 Kg |
| HRLW | 1/8” Ball | 60 Kg |
| HRMW | 1/4” Ball | 100 Kg |
| HRPW | 1/4” Ball | 150 Kg |
| HRRW | 1/2” Ball | 60 Kg |
| HRSW | 1/2” Ball | 100 Kg |
| HRVW | 1/2” Ball | 150 Kg |
Rockwell Superficial Hardness Test Block
| Part No | Penetrator | Load |
| 15N | N Diamond | 15 Kg |
| 30N | N Diamond | 30 Kg |
| 45N | N Diamond | 45 Kg |
| 15TW | 1/16” Ball | 15 Kg |
| 30TW | 1/16” Ball | 30 Kg |
| 45TW | 1/16” Ball | 45 Kg |
| 15WW | 1/8” Ball | 15 Kg |
| 30WW | 1/8” Ball | 30 Kg |
| 45WW | 1/8” Ball | 45 Kg |
| 15XW | 1/4” Ball | 15 Kg |
| 30XW | 1/4” Ball | 30 Kg |
| 45XW | 1/4” Ball | 45 Kg |
| 15YW | 1/2” Ball | 15 Kg |
| 30YW | 1/2” Ball | 30 Kg |
| 45YW |
45 Kg |
NOTE: Limited availability of round test blocks in HRC Scale. Please call for details.
Contact us today to inquire about Rockwell test blocks.
