SPECIFICATIONS:
Category 6 U/UTP copper cable meets ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E channel standards. The conductors are 24 AWG copper insulated with HDPE polymer. The copper conductors are twisted in pairs, separated by a cross divider and covered by a low smoke zero halogen or flame retardant PVC (CM or CMR) jacket in pairs, separated by a cross divider and covered by a flame retardant PVC (CM) jacket.
TECHNICAL INFORMATIONS:
Electrical performance: Certified performance in a 4-connector configuration up to 100 meters, meets ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E channel requirements Conductor/insulator: 24 AWG solid copper insulated with HDPE polymer
Insulation diameter: 0.86-1.21mm (0.034-0.048 in.)
Flame rating: UL 1685
EN50575: Euroclass Eca
Certification: ANATEL 2486-09-6246
PoE compliance: Meets IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications
Installation tension: 110 N (25 lbf) maximum
Temperature rating: 0°C to 50°C (32°F to 122°F) during installation
-20°C to 75°C (14°F to 167°F) during operation
Cable jacket: Flame retardant PVC
Cable diameter: 5.6mm (0.222 in.) nominal
Cable weight: 12 kg/305m (26 lbs./1000 ft.)

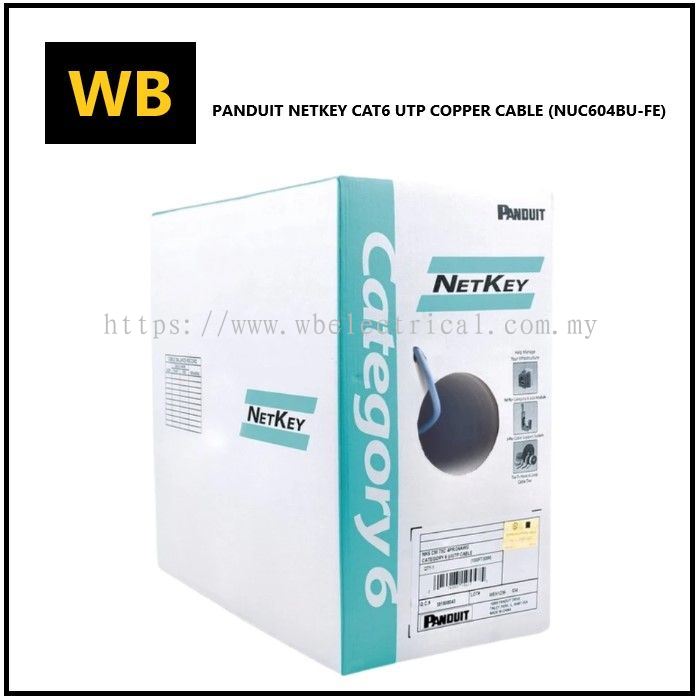

Packaging: 305m (1000 ft.) easy-pay-out box
