Specifications

区域矢高分布: 21 sags: 3600μm to 5600μm by 100μm Cornea: -15 to +15 in steps of 1 (1 steps = 30μm) Limbus: -15 to +15 in steps of 1 (1 steps = 30μm) Toricity: +5 to +15 in steps of 1 (1 steps = 30μm) Sclera: -15 to +15 in steps of 1 (1 steps = 30μm)
直径 (毫米): 14.50 to 18.50 in steps of 0.50 Standard 15.00 or 16.50 depending on indication
度数范围 / 光度范围: -40.00 to +40.00 in steps of 0.25 Cyl: -0.50 to -6.00 in 0.25 steps Axis: All Axis by 1° Additions: +0.75 to +3.50 in steps of 0.25 (Default D design, available in N design)
中心厚度 (于 -3.00D): 0.20 to 0.30mm
材质: Dk 200

Penerangan

Next-Generation Scleral

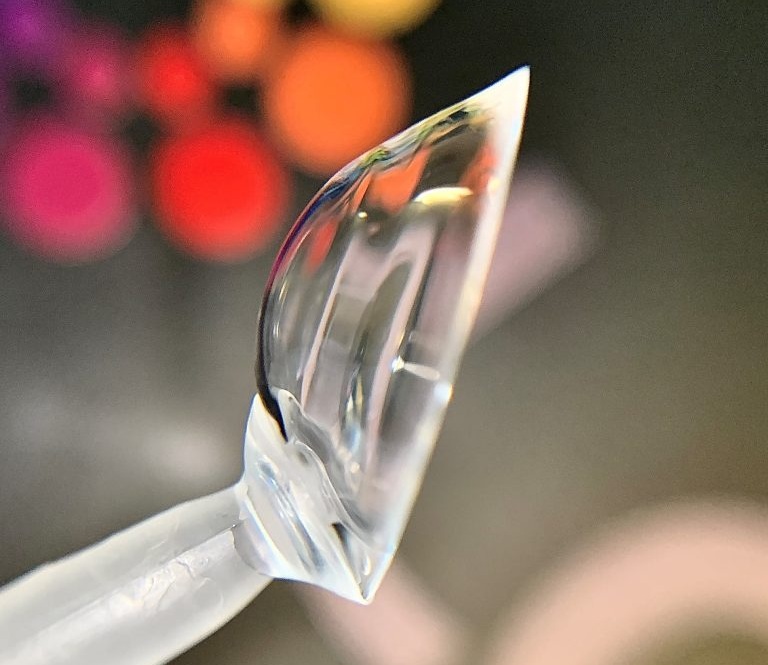

AKS Scleral Lenses

A premium scleral lens designed to completely bridge over the cornea and rest gently on the sclera, compensating perfectly for all levels of corneal irregularities and surface alterations.

Based on a cutting-edge design blueprint and powered by the advanced iAdapt Designer software, the AKS lens allows for point-by-point clearance customization. This ensures an easier, faster, and safer fitting process even on highly complex or irregular corneas.

The ideal choice for patients who have previously struggled or failed to adapt to traditional hybrid or rigid contact lenses.

Material Oxygenation

High Dk 200

Wear Modality

Daily Wear

Prescription Types

Regular, Irregular & Multifocal

Customization

Point-by-Point Freeform

Clinical Indications

Corneal Irregularities

Keratoconus & Pellucid Marginal Degeneration (PMD)
Corneal grafts (deformed but transparent corneas)
Severe, asymmetric, or irregular astigmatism
Deep corneal scarring
Bullous keratopathy

Corneal Surface Disorders

Severe dry eye syndromes
Lyell or Stevens-Johnson syndrome complications
Ocular burn after-effects
Terrien marginal corneal degeneration
Keratitis featuring epithelium alterations

Key Advantages & Patient Benefits

Optimal Oxygen Flow

Engineered with optimized thickness mapping scaled precisely to the lens diameter. Combined with a High Dk 200 material, it maximizes corneal oxygenation for long-term corneal health.

Unrivaled Comfort

By vaulting the sensitive corneal nerves and resting on the less sensitive sclera, it yields exceptional visual stability and comfort unmatched by traditional rigid lenses.

Precision Fit & Safety

Guarantees a secure, highly predictable alignment with the eye surface. Features permanent laser-engraved identification markings right on the lens matrix for verification.

Technical Specifications & Range

Parameter	Available Range & Configurations
Diameters	14.50 mm to 18.50 mm
Sagittal Depths (Arrows)	3600µm to 5600µm
Power Range	-40.00 D to +40.00 D (Predictable power design)
Astigmatism Correction	Up to 6.00 D
Geometries	Spherical, Toroidal, or specific Asymmetric Quadrant (ATD) geometries; custom collars for Pterygions/Pingueculas.
Presbyopia Profile	Available in precision Multifocal configurations
Surface Enhancement	Tangible® HYDRA-PEG coating available upon request for premium wettability.
Recommended Maintenance	Hydrogen peroxide system + LCS Clean, OR Multipurpose solution accompanied by periodic Enzymatic tablets.
