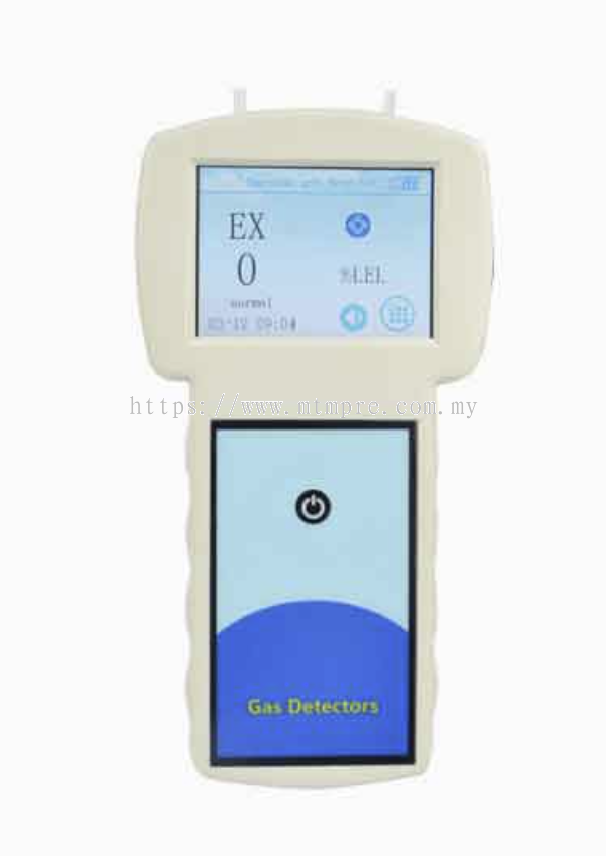

ZADETECTOR KP668 Portable Infrared Gas Analyzer

ZADETECTOR KP668 Portable Infrared Gas Analyzer

Kategori: Testing Instruments Tersedia
Untuk maklumat lanjut, lawati laman web rasmi kami di mtmpre.com.my

Penerangan

Theory electrochemistry; infrared radiation; catalyze
Application  combustible gas, TVOC, hazardous gas
Sampling method pumping method
Detecting range varies according to gas type
Resolution 1%LEL, 1PPM/0.1PPM, 0.01
  Gas analyzer: With internal pump, our KP668 portable gas analyzer is developed on the infrared detection principle. This device is endowed with high accuracy and excellent stability for its single light source & double tube air chamber technology. KP668 adopts advanced digital circuit processing technology, colorful touch screen, ultra-large capacity lithium battery for long stand-by time. It is mainly applied in the gas analysis of gas, chemical, cement, metallurgy, electric power and other fields. According to the variety of sensor, this device can be used for the detecting of various gases, such as SO2, NOX, CO2, CO, CH4, N2O, SF6, etc.



Functions Features

Henan Zhong An Electronic Detection Technology CO.,LTD.
Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Theory electrochemistry; infrared radiation; catalyze
Application  combustible gas, TVOC, hazardous gas
Sampling method pumping method
Detecting range varies according to gas type
Resolution 1%LEL, 1PPM/0.1PPM, 0.01
Measuring error full range±3%LEL
Indicating method liquid-crystal
Calibrating way touch screen operation
Responding time  <20S
Temperature -20℃~50℃
Working flow 500mL/min
IP grade  IP65
Battery DC3.7V 2800mA
Weigh ≤1000g
Pressure  86kPa~106kPa
Dimensionsize 209mm*110mm*40mm
Detecting parameters:

Gas Type Common Range Other Range
SF6 0-100PPM 0-1000PPM/0-3000PPM/0-2000ppm
CH4 0-4% 0-10000PPM/0-40000PPM/ 0-100%
CO2 0-5000PPM 0-10000PPM/0-5%/0-10%/0-20%/0-100%
Hydrocarbon HC 0-500PPM 0-100%(C3H8 calibration)
SO2 0-500PPM 0-1000ppm/0-5000ppm
NH3 0-100PPM 0-1000ppm/0-5000ppm/0-10000ppm/0-5%
CO 0-10000PPM 0-50000PPM/0-5%/0-100%
H2S(not IR) 0-50ppm 0-200PPM/0-500PPM/0-2000PPM
CH2O(not IR) 0-1ppm 0-5PPM/0-10ppm/0-100ppm/0-2000ppm
O3(not IR) 0-2ppm 0-10ppm/0-100ppm/0-1000ppm/0-5000ppm
