DTXA Series – High Functionality Type Screw Cap Torque Testers

High Functionality Type Screw Cap Torque Testers (Torque Gauge) with capacity of 50N-cm to 1000N-cm (10N-m). Capable of measuring opening and closing torque of container lids such as PET bottles and jars.

Features

High Functionality Type Screw Cap Torque Testers

High-function screw cap torque tester has capacity of 50N-cm to 1000N-cm (10N-m). Capable of measuring opening and closing torque of container lids such as PET bottles and jars. In addition to the high measurement repeatability by high-speed sampling and various data output methods of the standard type (DTXS series), it features angle input/output and USB memory connection. Next Series with firmware Ver. 5 or later offers improved measurement stability due to low noise, and expandability and convenience through additional functions (firmware download) and various software and instruction manual from the dedicated website (IMADA-Connected .com).

High Sampling Rate

High sampling rate (2000Hz) for accurate results, capturing small changes and accurate peak values by following rapid changes of torque.

Opening / Closing Torque

Ideal for measuring opening/closing torque of various samples such as bottles and bins.

Easy-To-Read Display

Reduces risk of misreading values with easy-to-read high luminance organic EL display. Allows customers to customize the contents for the three sections of the display screen.

Various Attachments

Handles a wide range of samples with various optional tables and attachments.

Additional Functions

Equips additional functions such as angle I/O (angle meter required), direct connection to USB flash drive, and 1st and 2nd peak value detection.

Internal Memory

Saves data to the internal memory. (Max.1000 data)
Enables to print out the all saved data by using RS232C printer.

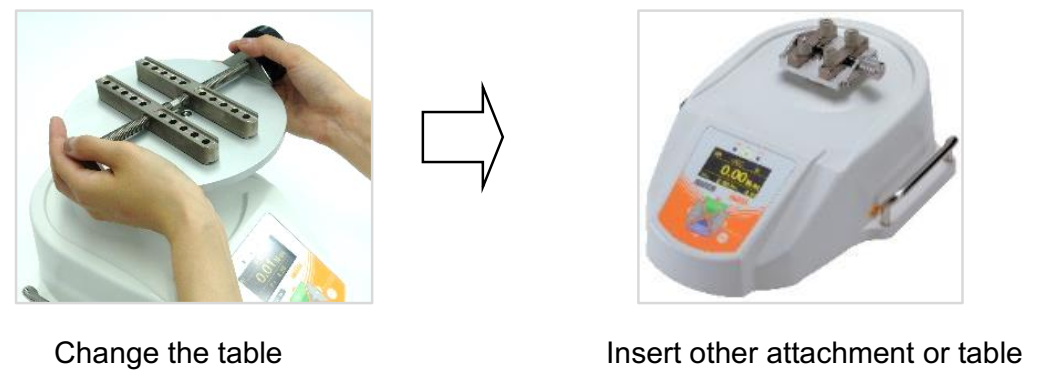

Enables To Measure Various Samples By Various Attachments

Changeable pins, tables and attachments. The users can choose the most suitable combination for their sample.

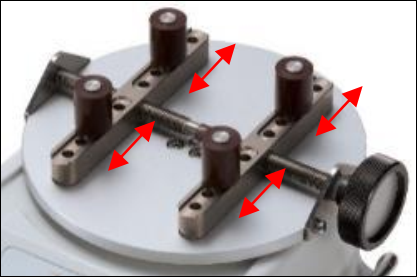

The pin types and the positions
are changeable.

High Repeatability By High Speed Sampling

The high speed data sampling rate (2000 data / sec) captures momentary force and digitizes it.
It captures the right max value and enhances repeatability of repeat test.

Useful Functions Improving Work Efficiency

Organic Electroluminescence Display

The display is visually clear as the user can see it from the side or in a dark place.

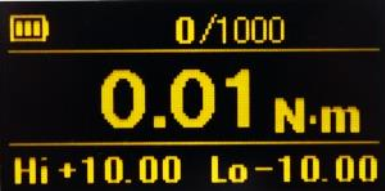

Various Display

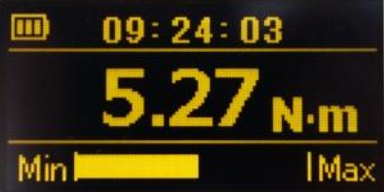

Time display

Easy and certain data managements

Bar graph
For prevention of breaking the sensor(over load). (*1)

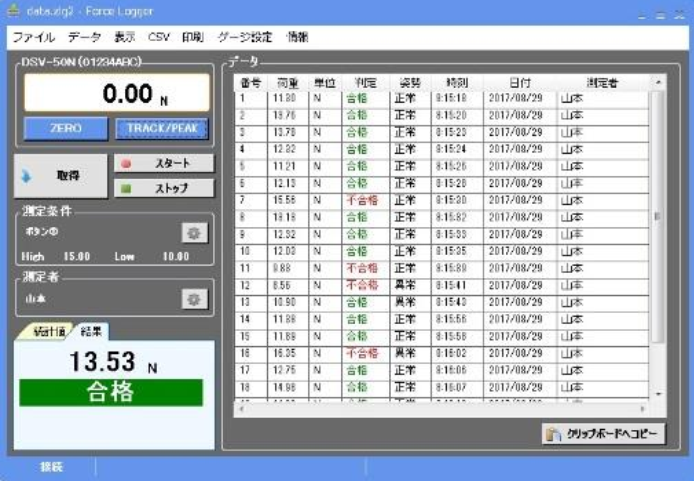

Captures Data To PC By Included Software

Display Force value/Date and time/ OK/NG judgment by connecting PC via USB.

Stable Body Fixation

The body can be fixed on a desk with the carry handle holes. It supports testing stable.

Full Specifications

Model	DTXA
Outline	Advanced model with additional functions of DTXS series. Such as input/output angles and saving to USB flash drive etc.
Accuracy	±0.5%F.S.±1digit
Unit of measurement	N-m, N-cm, kgf-m, kgf-cm, lbf-in, ozf-in (Unit switching is possible.)(*1)
Display	4-digit
Display update	16 times /sec
Sampling rate	Maximum 2000 data/ sec(*2)
Battery	8 hours (2 hours full charge)(*3)
Safe overload rating	Approx. 200%
Operating Environment	Temperature: 0 – 40 degree Celsius Humidity: 20 -80%RH
Function	Customized display(header and footer) / Peak hold(Clockwise and Counterclockwise)/ Internal memory(1000 point data)） / Comparator (OK or NG judgment)/ Reversible display/ Sign inversion/ Zero clear timer/ +NG alarm/ Off timer(Auto power off)/ Dumping/ Time display/ setting lock
Function	1st2nd peak / Angle detection at torque peak value(4) / Angle zero reset at selected torque(4)
Output	USB, RS232C, Mitutoyo digimatic (*5), 2 VDC analog output (D/A), Comparator 3 steps (-NG/OK/+NG), Overload alarm
Output	Sub comparator 2 steps (output of large or small judgment), USB flash drive, Angle(displacement)
Overload warning	Approx.110%F.S. (Warning message and alarm)
External connecting switch	SEND (a point of contact holding), Zero reset, Peak ON/OFF setting
Weight	Approx. 3.0kg (No table model), Approx. 4.5kg (Included standard table and pins)
Dimensions	See [Dimensions]
Accessory	AC adapter, Inspection certificate, CD driver (including simple software for data logging),USB cable, Carrying case, L wrench
Accessory	USB flash drive adapter(*6)
Approved standard	JIS S 0022 (2001): Guidelines for all people including elderly and people with disabilities — Packaging and receptacles — Test methods for opening “6.3 Screw top receptacle”

*1 These are the specifications for International model. Please note that this unit is different from Japanese domestic model.

*2 Up to 100 data/sec. is saved in USB memory (selectable among 1, 50, and 100 /sec)

*3 The battery is more consumed when connected to USB flash drive or a displacement scale.

*4 Angle(displacement) scale is necessary to valid this function.

*5 Not always available for Mitutoyo digimatic products.

*6 USB flash drive is not included.

Japan Model	Range	Display	Resolution
*DTXA-0.5N-Z (1) (2)*	0.5 N-m (50N-cm)	50.00N-cm	0.01N-cm
DTXA-2N	2 N-m (200N-cm)	2.000N-m (200.0N-cm)	0.001N-m (0.1N-cm)
DTXA-5N	5 N-m (500N-cm)	5.000N-m (500.0N-cm)	0.001N-m (0.1N-cm)
DTXA-10N	10N-m (1000N-cm)	10.00N-m (1000N-cm)	0.01N-m (1N-cm)
*DTXA-2N-Z (1)**	2 N-m (200N-cm)	2.000N-m (200.0N-cm)	0.001N-m (0.1N-cm)
*DTXA-5N-Z (1)**	5 N-m (500N-cm)	5.000N-m (500.0N-cm)	0.001N-m (0.1N-cm)
*DTXA-10N-Z (1)**	10N-m (1000N-cm)	10.00N-m (1000N-cm)	0.01N-m (1N-cm)

Contact us today to inquire about the DTXA Series High Functionality Type Screw Cap Torque Testers and enhance your torque measurement capabilities.
