Penerangan

Detection range	(0 ~ 50000) ppm .m；(0 ~ 1000000) ppm .m
Detection distance	(1 ~ 100) m；(1 ~ 150) m；(1 ~ 200) m
Minimum detection limit	5ppm.m
Accuracy	± 3% (relative truth value)
Continuous working time	8hours

Detection range	(0 ~ 50000) ppm .m；(0 ~ 1000000) ppm .m
Detection distance	(1 ~ 100) m；(1 ~ 150) m；(1 ~ 200) m
Minimum detection limit	5ppm.m
Accuracy	± 3% (relative truth value)
Continuous working time	8hours

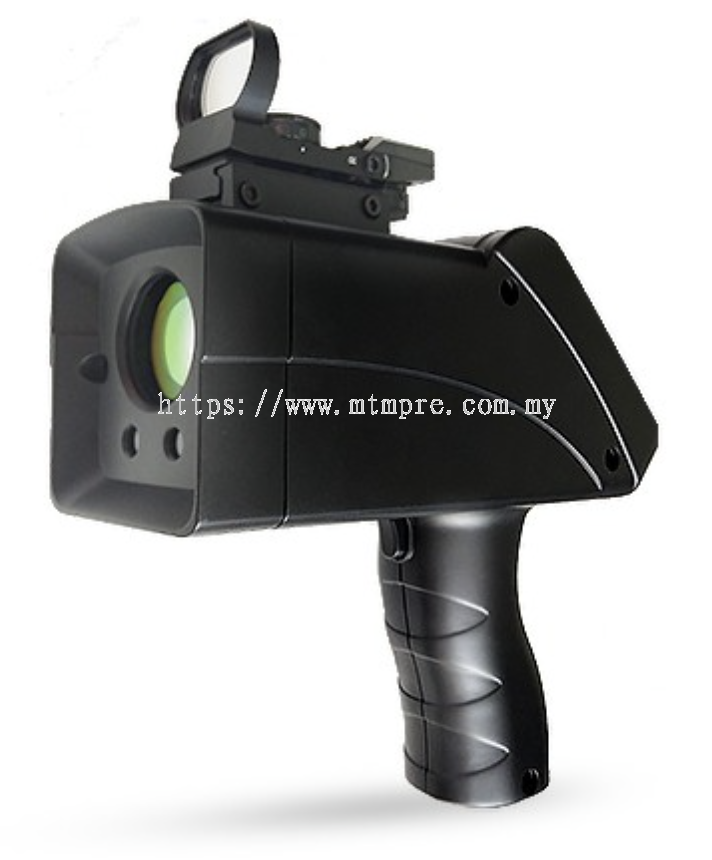

S350AS portable laser gas telemetry instrument is composed of optical machine system, signal processing system, display and alarm system and shell components.Mainly used for remote measurement of methane or methane gas (natural gas, gas or similar gas) concentration.
The telemeter sends an infrared laser to the detection point, which can quickly measure the concentration of air mass between the detection point and the telemeter.To facilitate observation, the telemeter also fired a visible red laser to the detection point.The telemetry instrument can detect the methane concentration value of the detected location in real time and accurately, display and store the methane concentration value. If the alarm value exceeds the value, the acousto-optic alarm will be given, so that the personnel can make subsequent disposal.
Detection principle
The measuring principle of the telemetry instrument makes full use of the absorption characteristics of methane gas to a specific wavelength. When the detection beam encounters methane molecules, part of the detection beam will be absorbed by methane molecules. By measuring the absorption rate, the concentration of methane gas mass distributed between the target point and the telemetry device can be known.

Functions Features

Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

detection range	(0 ~ 5000) ppm.m、(0 ~ 10000)ppm.m、(0 ~ 50000) ppm.m、(0 ~ 100000) ppm.m
detection distance	(1 ~ 100) m、(1 ~ 150) m、(1 ~200) m
minimum detection limit	5ppm.m
accuracy	± 3% (relative truth value)
response time	0.1s
continuous working time	8hours
power supply	Rechargeable lithium battery
display mode	2.4-inch LCD
alarm display	concentration value turns red, LED light flashes
alarm volume	≥70dB(1 meter)
product size	(180×180×80)mm
Net weight of product	1000g
protection level	IP65
ambient temperature	(- 20 ~ 50) ℃
environmental humidity	(0 ~ 95) %RH, no condensation
battery voltage	7.4V
battery capacity	3000mAH
