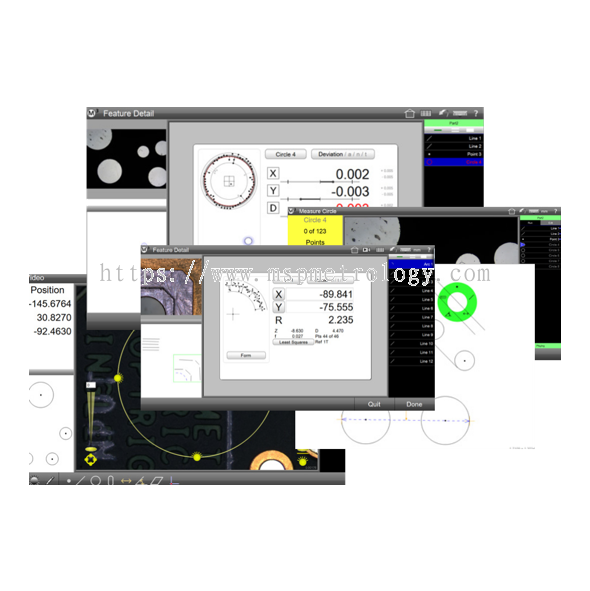

Expanded Multi-Touch logic, advanced video probe toolbox, advanced edge teach, quick annotation, DXF overlay and FOV capability for efficient feature measurements, feature data manipulation, and reporting tasks.

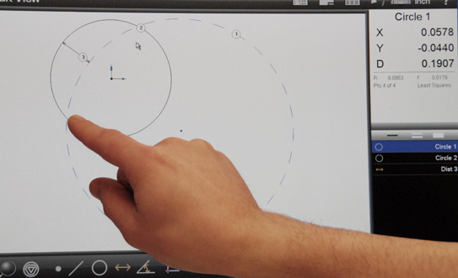

Expanded Multi-Touch logic allows for one-touch feature measurements to increase the efficiency of feature measurements, feature data manipulation, and reporting tasks with a simple pinch zoom, swipe pan, or double click.
.png "18")

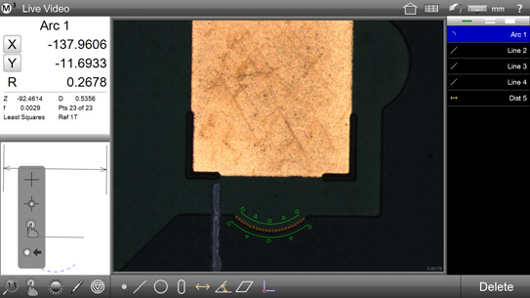

The custom EyeMeasure™ probe captures complex edges by creating a custom “tool zone”. The MeasureLogic™ probe’s intelligent design provides an instant feature determination. The Vtouch™ probe provides industry first video touch probe functionality.

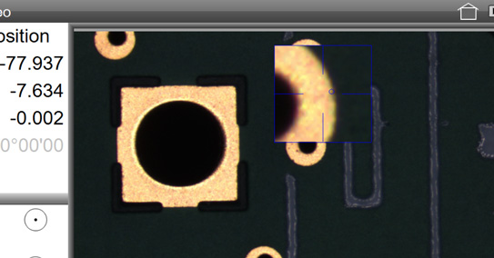

Improve edge detection performance under a variety of image and lighting conditions. Features with poor edge contrast, or difficult spacing can be captured in a snap using the M3’s manual teach function. Press and hold on an edge in any video image to specify a teach region.
.png "20")

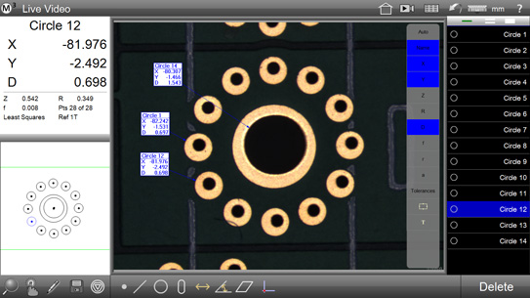

Gain access to instant feature markup tools using the part view “Gesture Menu”. Add customized feature data to your live video image or part view displaying only the desired coefficients. You may annotate one or several features simultaneously with the smart marquee feature selection.

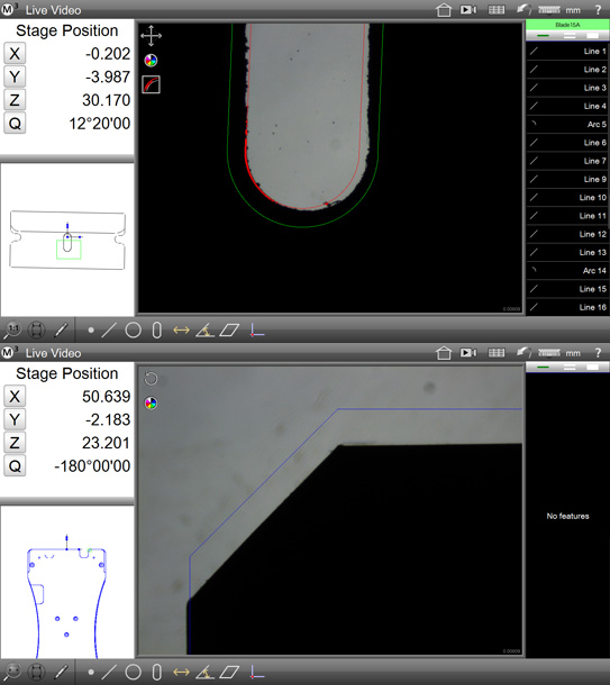

Using the DXF/FOVE option pack, you may import DXF files for “comparative style” Go/No-Go feature and part inspection. This includes a live error whisker display for part violations of the original DXF tolerance zones. You may even utilize custom DXF crosshair files, create “on the fly” overlay feature tools, and utilize pattern recognition for part program playback.
Contact us today to inquire about the M3 Software and enhance your measurement capabilities.
