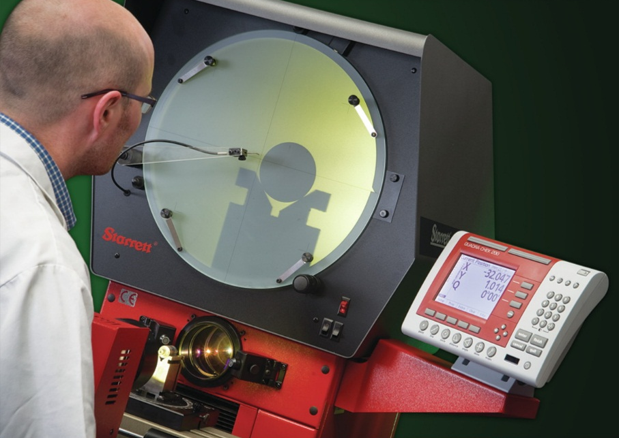

HB400 offers 16” (400mm) diameter screen, 21” x 5” (530mm x 120mm) working top stage, 12” x 6” (300mm x 150mm) travel stage and high 110lb workload capacity. With the resolution of 0.5µm for the linear glass scale, this makes HB400 is one of the highest accuracy for optical comparator in the market
HB400 offers 16” (400mm) diameter screen, 21” x 5” (530mm x 120mm) working top stage, 12” x 6” (300mm x 150mm) travel stage and high 110lb workload capacity. With the resolution of 0.5µm for the linear glass scale, this makes HB400 is one of the highest accuracy for optical comparator in the market

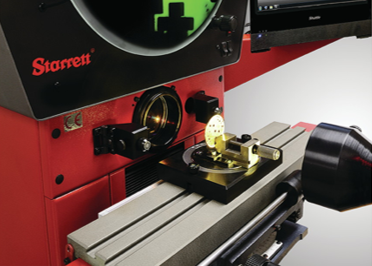

Collimating condenser with yellow/green filter and provision to mount further accessories. With 250W quartz halogen surface illumination with fiber-optics delivery and 150W quartz halogen profile illumination.

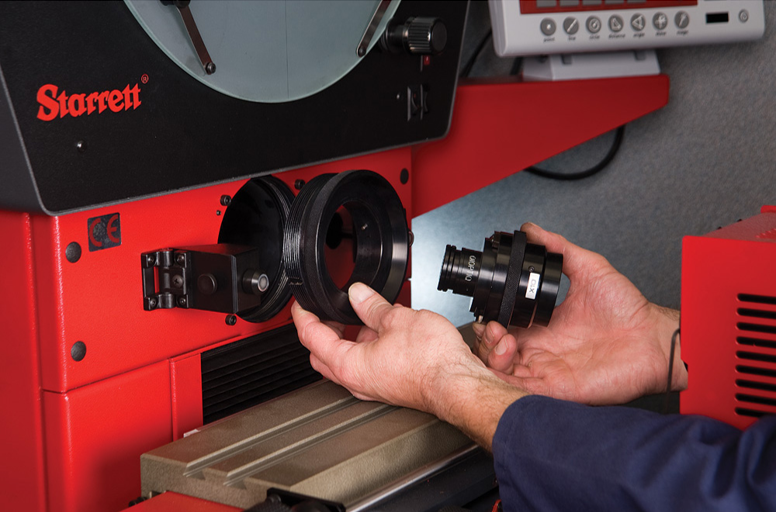

Comes with a bayonet socket that accommodate six interchangeable projection lenses to convert system operation from profile projector to video metrology system.

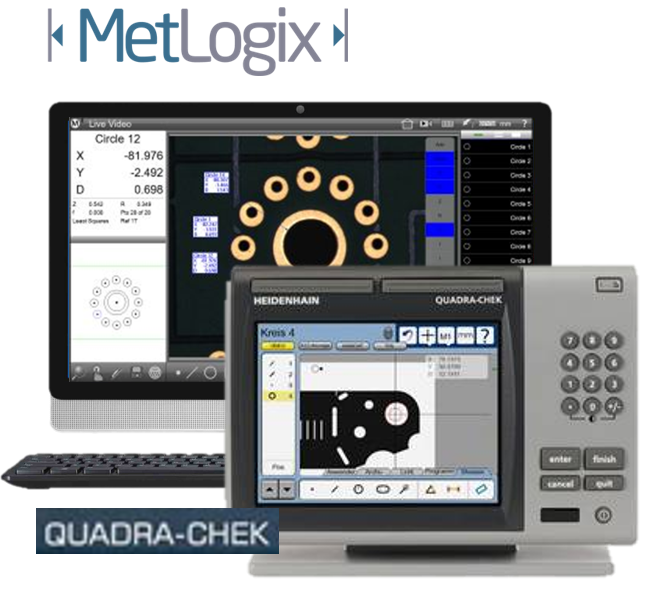

HB400 available with choice of the new MetLogix™ M1 tablet, M2 on PC or M3 on all-in-one touch screen PC. For Quadra-Chek®, the available software are QC221 and QC321.
16″ (400mm) diameter screen with crosslines, overlay clips and hood
Dual mirror design for vertically erect image
21.3″ x 5.1″ (540 x 130 mm) stage surface
12″ x 6″ (300 x 152 mm) XY stage travel, 2″ (50mm) focus travel
110lb(50 kg)maximum load capacity
Bayonet lens socket for quick magnification changes
All metal construction for optimum stability
Fine adjusment for X and Y axes
Fast traverse, zero backlash mechanism for X-axis
Heidenhain glass scales for 0.00002″( 0.5µm) X and Y resolution
Helix angle adjustment with ± 15º Vernier scale
250W quartz halogen surface illumination with fiber-optic delivery
150W quartz halogen profile illumination
Software Readout Features
| Features | MetLogix M3 | MetLogix M2 | Quadra-Chek QC321 | Quadra-Chek QC221 |
| Mounted to comparator arm | x | x | x | |
| Color Graphics | x | x | x | |
| Touch-Screen Operation | x | x | x | |
| MS Windows Operating System | x | x | ||
| X-Y-Q( angle) measurements | x | x | x | x |
| 2D geometry software w/skew | x | x | x | x |
| Optical Edge Detection Option | x | x | x | x |
| Video Edge Detection Option | x | x | ||
| CAD File Import & Export Option | x | x | ||
| CNC Drive Option | x | x | x | |
| Software Developer | Metlogix | Metronics / Heidenhain | ||
Six interchangeable fixed magnification lenses : 10x, 20x, 25x, 31.25x, 50x, and 100x.
Automatics optical edge detection
Automatics video edge detection only available wit OV2 OR TOV2 video cameras
OV2 video camera available with 6.5:1 zoom lens while TOV2 , Telencentric Video Camera available with choice of 0.16x, 0.3x, or 0.5x fixed magnifications lens.
Contact us today to inquire about the HB400 Optical Comparator and enhance your optical measurement capabilities.
