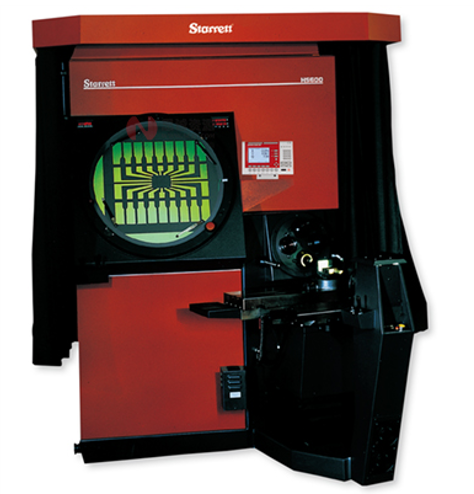

The HS600 floor standing horizontal optical comparator provides comfortable viewing access, outstanding optical comparator features, software readout choices, and measurement capability for large components.

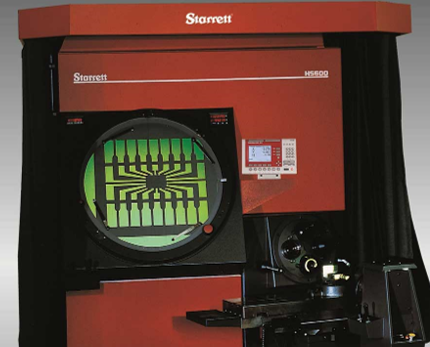

The HS600 floor standing horizontal optical comparator has all the same features as the HF600, except it has the screen position set to the side of the workstage area which allows close, comfortable and unrestricted access to the viewing and control area.
With larger viewing screen (24” – 600mm), HS600 has an outstanding features which they include lens turret with 4 capacity for instant selection of optional magnification lenses. It also offer video adapter to convert from optical comparators to video metrology system

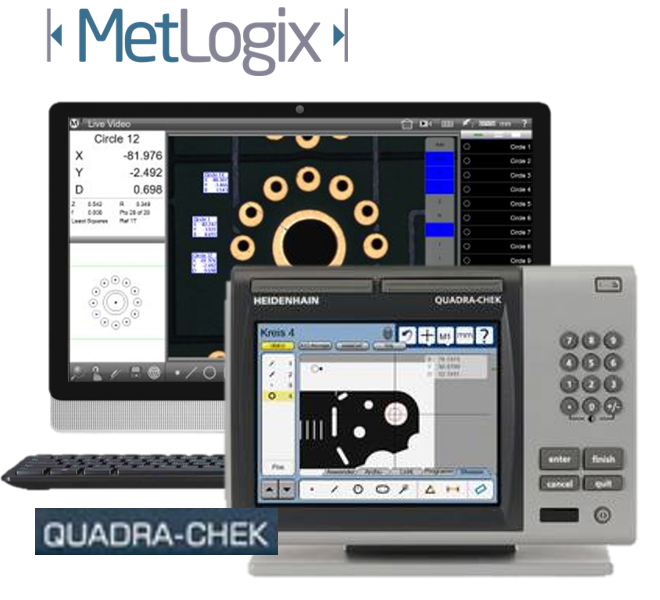

HS600 available with choice of the new MetLogix™ M2 on PC or M3 on all-in-one touch screen PC. For Quadra-Chek®, the available software are QC221 and QC5200.
Accommodates components up to 330lbs (150kg)
24″ (600mm) diameter screen
Motorized X and Y axes standard
Projection lens turret with four lens capacity (lenses not included)
Turret mounted condenser system complete with two lenses and yellow/green filter with provision to mount further accessories
Linear encoder (glass scale) on both X and Y axes
Halogen profile and surface illumination
Digital protractor for accurate angle measurement (1′ resolution) via Q-axis readout
Available with MetLogix™ M2 and M3 PC-based touch screen measuring software or Quadra-Chek® digital readout systems.
Two-axis power drive via joystick and variable speed control for fine adjust
Full canopy and curtains included
| Features | MetLogix | Quadra-Chek | ||
| M2 | M3 | QC221 | QC5200 | |
| Mounted to comparator arm | x | x | ||
| Color graphics | x | x | x | |
| Touch screen operation | x | x | x | |
| MS Windows operating system | x | x | ||
| X-Y-Q axis digital readout | x | x | x | x |
| X-Y axis digital readout | ||||
| 2D geometry software with skew | x | x | x | x |
| Optical edge detection option | x | x | x | x |
| Video edge detection option | x | x | ||
| CAD file import and export option | x | |||
| CNC drive option | x | x | x | x |
| Software developer | MetLogix | MetLogix | Metronics/Heidenhain | Metronics/Heidenhain |
Contact us today to inquire about the HS600 Floor Standing Horizontal Optical Comparator and enhance your optical comparator measurement capabilities.
