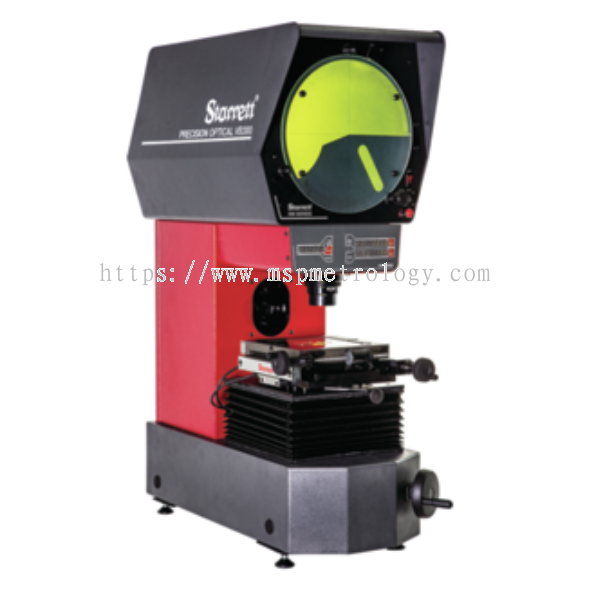

VB300 offers a very high performance profile comparators at low price. With 12” (300mm) diameter screen size with precision cross lines, overlay clips and integral hood for its high resolution display, VB300 is also an all-metal construction to make sure the performance and accuracy of the projector are in optimum state.
VB300 offers a very high performance profile comparators at low price. With 12” (300mm) diameter screen size with precision cross lines, overlay clips and integral hood for its high resolution display, VB300 is also an all-metal construction to make sure the performance and accuracy of the projector are in optimum state.
VB300 offers a very high performance profile comparators at low price. With 12” (300mm) diameter screen size with precision cross lines, overlay clips and integral hood for its high resolution display, VB300 is also an all-metal construction to make sure the performance and accuracy of the projector are in optimum state.
LED profile and surface illumination provided as a standard for precision optics and versatile lighting to produce bright, sharp images and exceptional accuracy.
With the automatic edge detection (optional) function, user can automatically detect all edges of the specimen to reduce human error and time consuming when taking measurement.

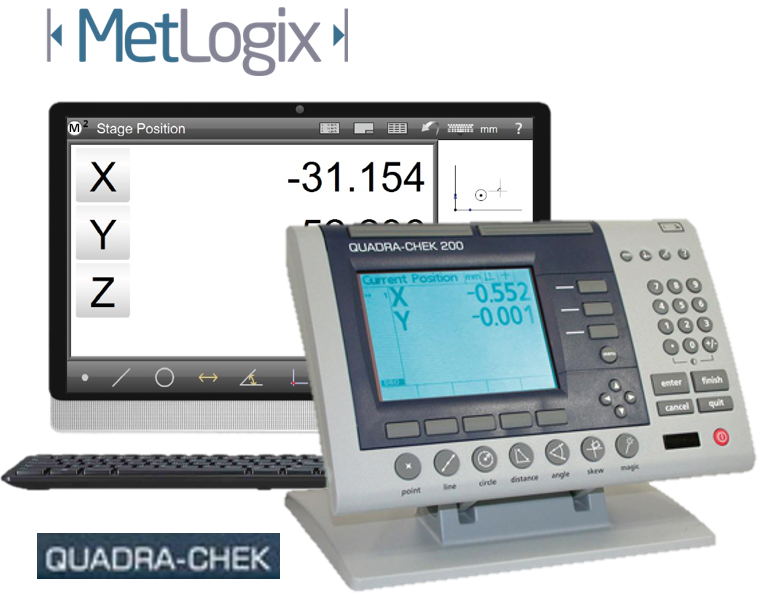

Available with a simple integrated LED readout display (as shown) or choice of the new MetLogix™ or Quadra-Chek® digital readout system.

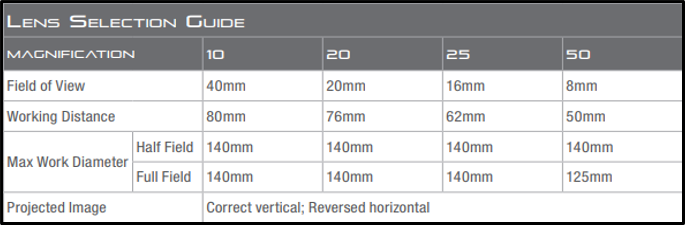

A wide range of interchangeable lens magnifications are available including 10x, 20x, 25x, and 50x
Starrett Optical Comparators are manufactured according to stringent quality standards. These same standard apply towards all lenses and accessories as well.
All metal construction for optimum performance

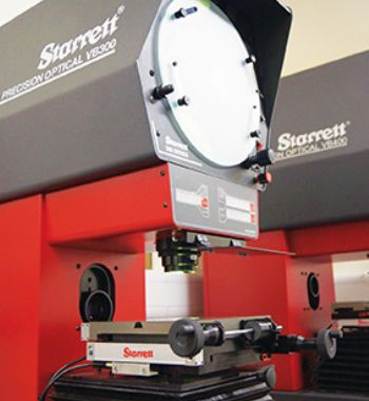

12″ (300mm) diameter screen with overlay clips
Measuring travel: 4″ (100mm) X-axis, 4″ (100mm) Y-axis

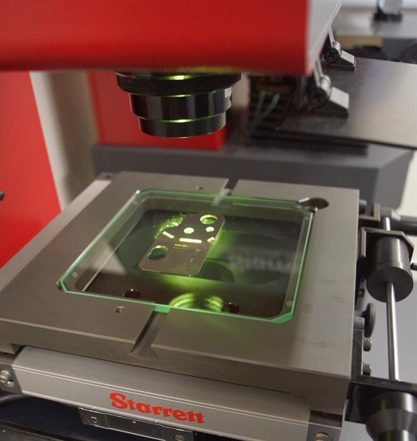

High precision workstage with 9 x 9″ (225 x 225mm) top plate, with two dove-tail slots for easy fixturing
Linear encoder (glass scale) on both X and Y axis
Stage weight capacity: 11lbs (5kg) (evenly distributed)
LED profile and surface illumination
Screen driven Q-axis
Fast traverse, quick release mechanism on X-axis and Y-axis
Available with a simple integrated LED readout display or choice of the new MetLogix™ or Quadra-Chek® digital readout system.
Choice of four fixed magnification lenses including 10x, 20x, 25x and 50x.
0.001mm resolution linear scales, automatic edge detection option, purpose built cabinet stand, precision Centres and Vees accessories availables
| System type | Bench Top |
| Part View Orientation | Vertical |
| Screen Diameter | 12″ (300mm) |
| Image | Erect and reversed |
| X-Y Measuring Range | 4″ x 4″ (100mm x 100mm) |
| Linear Glass Scale Encoder on X & Y axis | Standard |
| Focus Range | 4″ (90mm) |
| Work Stage | 9″ x 9″ (225mm x 225mm) |
| Load Capacity with Negligible Deflection | 11lbs (5kg) |
| Load Capacity Maximum | 20lbs (9kg) |
| Angular Measurement Resolution | 1 Minute |
| Profile Illumination | Standard |
| Surface Illumination | Standard |
| Quick Change Lens Mount (Lens not included) | Single |
| Collimating Condenser with Yellow/Green Filter | Standard |
| Control System/Software | Integral XYQ LED Readout, M1, M2, QC100/200 |
| Display (Control System Dependent) | QC DRO or 15.6″ Touchscreen PC, Integral LED XY display |
| Lenses (One required, not included) | 10x, 20x, 25x, 50x |
| Net Weight | 423lbs (192kg) |
| Gross Weight | 443lbs (201kg) |
| Shipping Dimension (mm) | 1118 x 838 x 1321 |
Contact us today to inquire about the VB300 Optical Comparator and enhance your profile comparator measurement capabilities.
