Automatic Multi-mode Embedding Hot Mounting Press Machine
Taiwan Nakazawa Company independently designed and developed the TNM metallographic hot embedding machine suitable for the metal manufacturing industry, combined with the elite talents of major industries, to create a high-performance ultra-high cost-effective metallographic embedding equipment that is both beautiful and practical. Using exclusive temperature control technology and intelligent pressure control system, the metal embedding process is upgraded to the best state, not only the sample preparation is fast and safe, the operation is simple and easy to use, but also it can ensure that there is no gap between the metal sample and the edge of the embedding material. For the factors that may affect the metallographic experiment

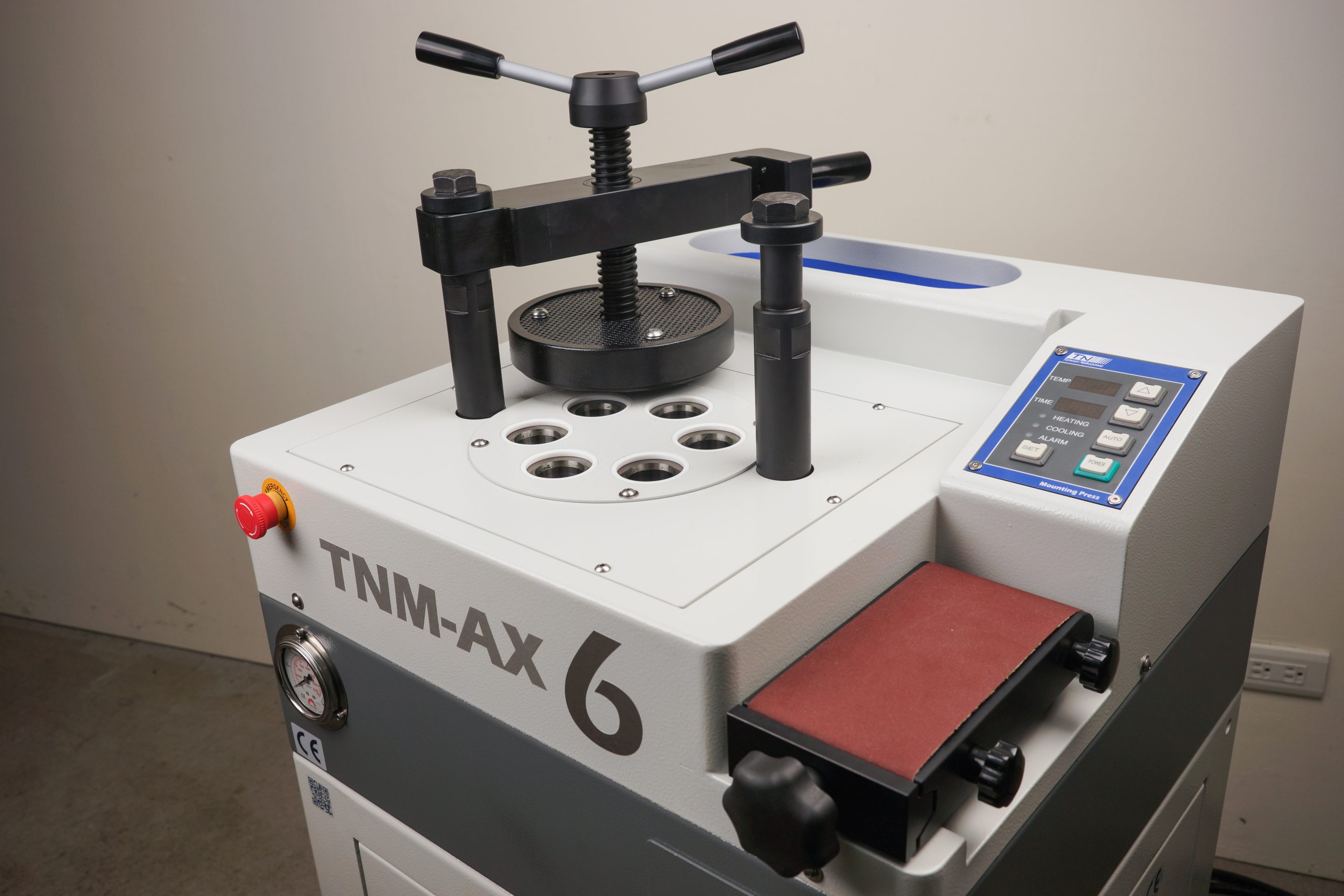

TN Precision Multi-mode Embedded Automatic Hot Mounting Press Machine is a powerful hot mounting machine that can compeleted 6 molding samples at the same time. For one process, it takes about only 15 minutes for 6 samples to produce.

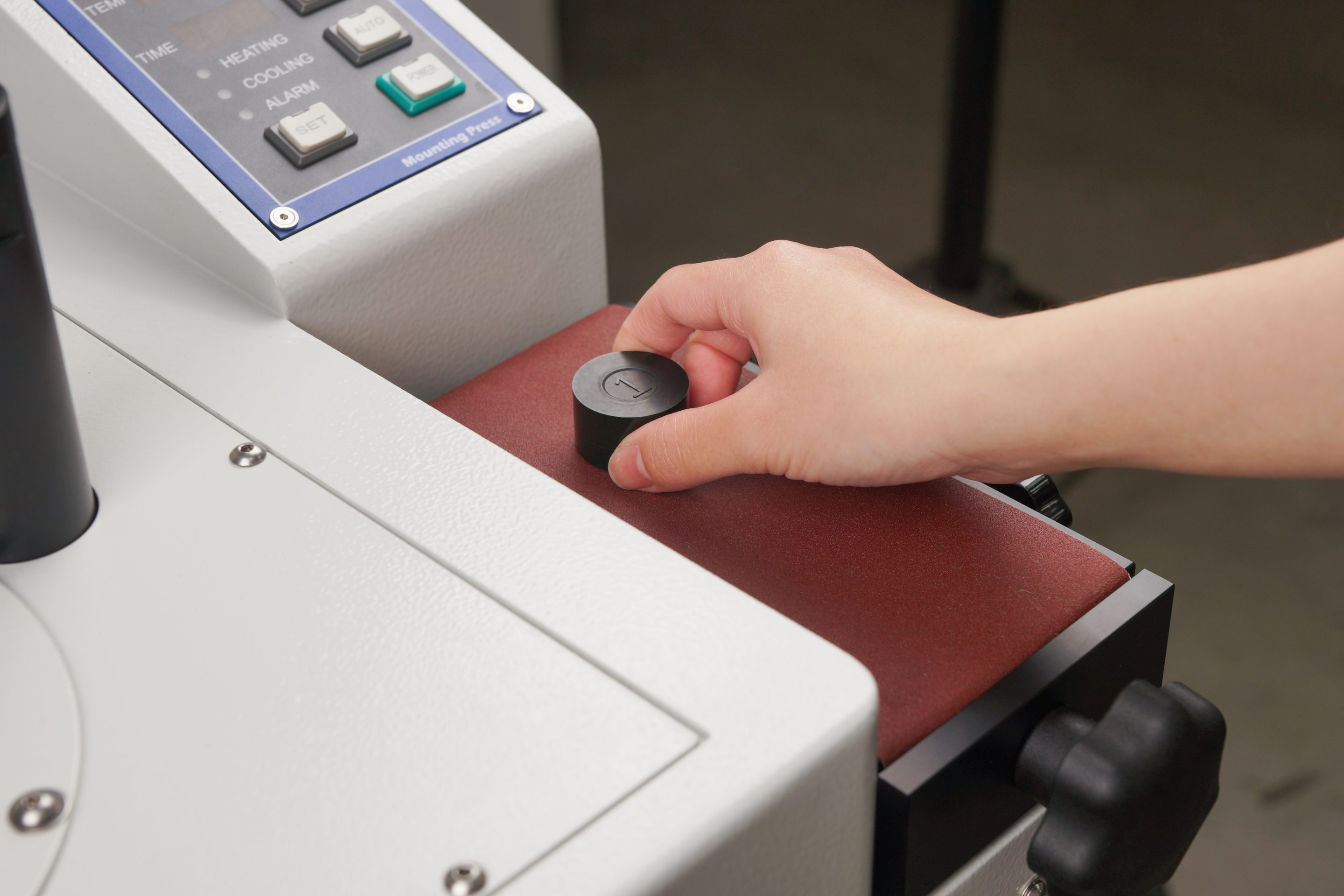

After you completed the molding process, the multi-mode embedded technology allow you to directly proceed with rough grinding operation to fasten your sample preparation operation process.
The machine is design to make your job easier. Every part of the design was made very thoughtful to increase productivity and efficiency.

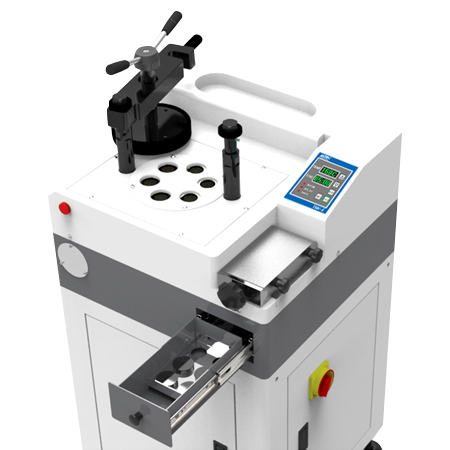

.png "ax6-02")
| Item | TNM-AX6 | |
|---|---|---|
| Mounting Parameters | Size | Ø32mm |
| Greatest Pressure | Inside the mold tube：1625psi(114kgf/cm^2)；actuation pressure：130kgf/cm^2 | |
| Pressure Control System | Uncontrollable, hydraulic system | |
| Filling Mechanism | Rotary push down | |
| Quantity | 1-6(single MAX high：30mm | |
| Temperature | 110ºC – 200ºC | |
| Panel Function | Production Mode | Full automatic pressure compensation |
| Function Setting | 1. Forming time 2. Cooling time 3. Forming temperature |
|
| Extra Features | 1. Automatic shutdown 2. Buzzer mode selection A. On B. Off C. Buzzer for 30 seconds |
|
| Security Mechanism | Safe Temperature Protection | The system cannot operate until the safe temperature is reached |
| Emergency Safety Switch | After the emergency switch is pressed, all functions stop | |
| Overload Protection | The machine has a complete overload protection mechanism | |
| Supply | Electricity | Three phase 220V/ 380V 60/50Hz |
| Heating Power | 3000W | |
| Total Machine Power | 3500W | |
| Size | W540 x D552 x H1300mm | |
| Weight | 120kg | |
| Cooling Water | Inlet pipe size 3/8″ inch (3 pipes) | |
| Outlet size 5/8″ inch (5 pipes) | ||
| Standard Equipment | Dispensing scoop x 1; funnel x 1; water inlet pipe 2M x 1; drain pipe 2M x 1; release agent x 1; #240 abrasive paper 4 sheets; grinding belt table x 1; Hot gloves x 2; upper mold scraper x 1 | |
