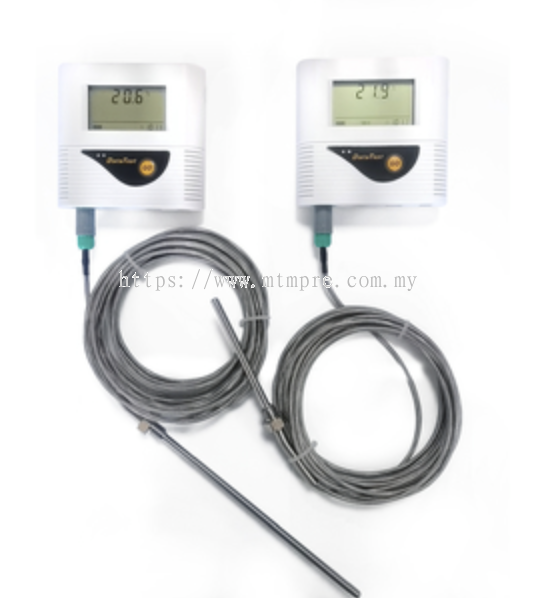

DATATEST DT-T11HG Pipeline Temperature Recorder

DATATEST DT-T11HG Pipeline Temperature Recorder

Kategori: Testing Instruments Tersedia
Untuk maklumat lanjut, lawati laman web rasmi kami di mtmpre.com.my

Penerangan

Brief introduction:
According to current domestic certification requirements, warehouses, cold storage facilities, cool storage facilities, laboratories, cleanrooms, electronic packaging material warehouses, transport vehicles, and other environments in the food, pharmaceutical, electronics, and chemical industries all require automatic temperature monitoring and recording. Our company has specially developed a probe to measure temperature changes inside pipes. Depending on the pipe diameter, probes of different depths can be customized, and probes to measure temperature changes on the outer wall of pipes can also be customized.
Details:
According to current domestic certification requirements, warehouses, cold storage facilities, cool storage facilities, laboratories, cleanrooms, electronic packaging material warehouses, transport vehicles, and other environments in the food, pharmaceutical, electronics, and chemical industries all require automatic temperature monitoring and recording. Our company has specially developed a probe to measure temperature changes inside pipes. Depending on the pipe diameter, probes of different depths can be customized, and probes to measure temperature changes on the outer wall of pipes can also be customized.
1. Features of Pipeline-Specific Temperature Recorder
⊕ Reusable, no consumables required
⊕ Temperature sensing lead range (*maximum temperature: 280℃)
⊕ Recording interval (1 second to 24 hours), adjustable
⊕ Good probe interchangeability
Switch between ℃ and !
⊕ ABS engineering plastic shell
⊕ Ultra-low power consumption design, battery life: 1-2 years
⊕ It allows you to set upper and lower temperature limits and includes a buzzer alarm function.
Audible and visual alarms, SMS alarms, and telephone alarms (optional).
This product truly meets the requirement of 24-hour monitoring.
⊕ Data: Available in both curve and report formats. Includes analysis of minimum, maximum, and average temperatures.
2. Technical parameters of pipeline-specific temperature recorder
Temperature range -50℃~280℃
Temperature accuracy ±0.5℃ (0℃~100℃), and ±1℃ for other temperatures.
Temperature resolution 0.1℃/F
probe material Teflon wire (maximum temperature resistance up to 280℃), PT1000
Storage capacity 32768 groups
Alarm settings Standard: Upper and lower limit audible alarm (audible and visual alarm, telephone alarm and SMS alarm optional)
refresh rate 1 second or synchronized with the recording interval
Recording interval Adjustable from 1 second to 24 hours
Communication interface USB 2.0
Battery life High-energy lithium batteries, 1-3 years (depending on usage frequency).
Storage environment -20℃~70℃
External dimensions 102 mm × 109 mm × 29 mm
Random accessories USB data cable, warranty card, certificate of conformity, and professional software (9-24V power adapter optional).
