Brief introduction:

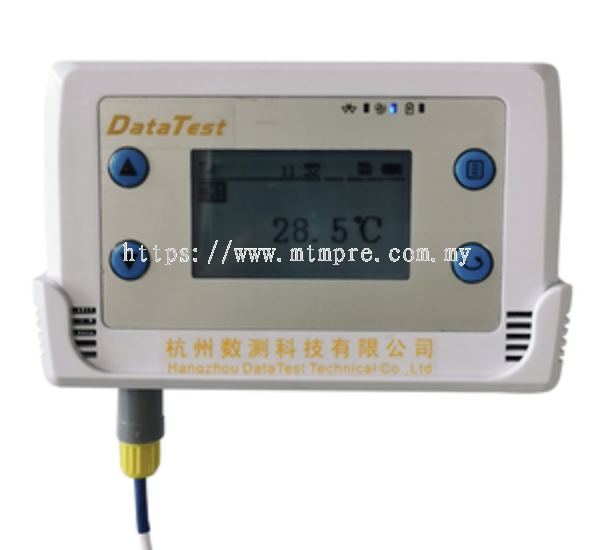

The real-time GPRS temperature and humidity data acquisition device is a new generation of GPRS-based wireless temperature monitoring system developed by Hangzhou DataTest Technology Co., Ltd. It retains the functions of the original temperature data acquisition device while adding a GPRS module. On-site installation eliminates the need for wiring and a monitoring computer. Simply prepare a China Mobile or China Unicom SIM card, insert it into the temperature data acquisition device with the GPRS module (the device has a SIM card slot), and the temperature and humidity data will be directly transmitted to Hangzhou DataTest Technology's DataTest cloud platform via the China Mobile or China Unicom network. Installation is convenient, and GPRS communication traffic is extremely low, less than 10MB per month.

Details:

Product Introduction:
The real-time GPRS temperature and humidity data logger is a new generation of GPRS - based wireless temperature monitoring system developed by Hangzhou Shuce Technology Co., Ltd. It retains the functions of the original temperature data logger while adding a GPRS module. No wiring or monitoring computer is required on-site; simply insert a China Mobile or China Unicom SIM card into the temperature data logger with the GPRS module (the logger has a SIM card slot). Temperature and humidity data are directly transmitted to Hangzhou Shuce Technology's DataTest cloud platform via the China Mobile or China Unicom network. Installation is convenient, and GPRS communication traffic is extremely low, less than 10MB per month . Customers can request to view real-time and historical data (curves and reports). Various built-in or external temperature and humidity sensors can be selected, as well as temperature zone probes suitable for their monitoring environment. The DT-GPRSX3 series temperature and humidity data logger also has built-in storage to prevent data loss and has a data recovery function.
II. Product Applications:
The real-time GPRS temperature and humidity data logger is primarily used for environmental monitoring of temperature-sensitive products, especially in areas with high temperature requirements such as refrigerated trucks, refrigerated boxes, insulated boxes, warehouses, cool storage rooms, cold storage facilities, refrigerators, freezers, freezers, archives, and greenhouses, enabling 24- hour real-time temperature monitoring. Monitored temperature data is uploaded to a cloud platform in real time. Users can directly view real-time temperature and humidity data via computer or mobile app . The instrument has alert functions via WeChat, SMS, and email, promptly sending notifications to users when temperatures exceed limits to ensure timely handling of temperature and humidity exceedances.
III. Product Features:
1. Wireless transmission using GPRS , with no distance limitations and no need for on-site wiring.
2. Employs digital sensors, integrates data, and achieves high precision.
3. Built-in high-capacity rechargeable lithium battery ( default 3000mAh , normal use: 7 days), larger capacity battery optional.
4. Can collect temperature and humidity data in real time.
5. Various parameters can be set directly via the instrument's menu buttons without needing to connect to a computer or software, such as: upload interval, alarm number, etc.
Data limits, IP settings, port settings, etc.
6. Large LCD screen displays measured ambient temperature, humidity, pressure, and other parameters in real time.
7. Dual data storage function, both local and cloud platform, to prevent data loss.
8. It has a data retransmission function. In case of network abnormalities or poor signal, the data is temporarily stored on the local machine and will be transmitted after the signal is restored.
The data will be re-uploaded to the cloud platform.
9. It has a flight mode that disables GPRS and records temperature and humidity data during flight. After landing, GPRS is turned on.
This function, when flight mode is turned off, allows temperature and humidity data during flight to be transmitted to the cloud platform.
10. Optional Bluetooth printing function allows for direct on-site printing of internal instrument data via Bluetooth printer, with confirmation upon receipt and inspection.
11. Optional GPS positioning function, which can track the device's GPS location information and query historical trajectory in real time.
IV. Parameter Selection Table:

Product Name	Temperature and humidity recorder	Temperature and humidity recorder (with probe)	Temperature and humidity recorder (dual probe)
Product Model	DT-GPRS20	DT-GPRS23	DT-GPRS43
Measurement range	Temperature: -40~100℃; Humidity range: 0%~100%
Measurement accuracy	Temperature: ±0.2~0.5℃; Humidity accuracy: ±3%
resolution	Temperature: 0.1℃; Humidity: 0.1%RH
Record capacity	99864 groups	99864 groups	Group 83886
Recording interval	Divided into normal recording intervals and excessive recording intervals. (Intervals can be set directly via the instrument menu button from 30 seconds to 6 hours )
Refresh storage mode	Refreshes every 10 seconds Direct settings via instrument menu buttons
Startup method	Manual button power on
Stop mode	Manual button shutdown
External power supply	A 12V/1A DC power supply can power the device and charge the battery.
Button Functions	Menu key: Long press to power on/off (must be operated from the main interface when powering off), short press to select menu items. Up and down keys: jump to different menu items. Back button: Returns to the previous menu (long press on the main screen to automatically search for Bluetooth printers to print stored data).
Alarm methods	Buzzer audible and visual alarm, LCD alarm indicator (standard configuration) External audible and visual alarm, WeChat/SMS alarm (optional)
Battery	3.7V high-energy ( 3000mAh ) rechargeable battery, replaceable , with optional high-capacity batteries.
indicator lights	The red light illuminates when charging, and the green light illuminates when fully charged.
Communication interface	USB/GPRS/ Bluetooth
Casing color	White
Instrument size	14.5mm * 90mm * 35mm
Random Attachments	Sensor, USB cable , DC power supply, instruction manual, certificate of conformity, warranty card, wall mount kit

V. Cloud platform website: www.datatest-cloud.com
