Penerangan

Brief introduction:

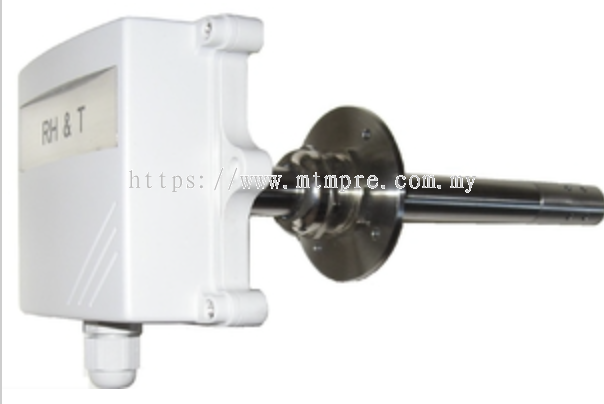

This pipe flange-mounted temperature and humidity transmitter uses a Swiss digital humidity sensor as its sensing element. It features fast response, accurate measurement, stable operation, and long service life. The probe section uses a perforated metal tube or a powder-sintered tube, providing good air permeability and dust protection.

Details:

I. Introduction
This pipe flange-mounted temperature and humidity transmitter uses a Swiss digital humidity sensor as its sensing element. It features fast response, accurate measurement, stable operation, and long service life. The probe section uses a perforated metal tube or a powder-sintered tube, providing good air permeability and dust protection.
This pipe flange-mounted temperature and humidity transmitter can be used in various applications including industrial field measurement, telecommunications base stations, warehouses, computer rooms, production workshops, construction sites, offices, supermarkets, and archives. The transmitter features DC current signal output, low power consumption, and can be directly connected to secondary instruments or data acquisition cards.
II. Product Features
rapid response
Temperature and humidity dual outputs
Humidity measurement features linearity and temperature compensation.
Excellent long-term stability
III. Technical Parameters

Performance indicators
Measuring range		Temperature: -20℃～80℃
Measuring range		Humidity: 0～100%RH
Humidity accuracy		±3%RH (20%RH～80%RH)
Temperature accuracy		±0.5℃
stability		<1% RH/year, <0.1℃/year
Input/Output
Output signal		4～20mA (3 lines)
Power supply		24VDC
Operating conditions
Work environment		Operating temperature: -20℃～70℃
Work environment		Operating humidity: ≤94%RH
storage		-40℃～70℃

IV. Internal Terminal Definition
V. Precautions for installing temperature and humidity transmitters on pipe flanges
1. The power supply voltage is 24VDC.
2. Do not pull on the probe lead wire forcefully.
3. When measuring under humidity conditions above 90%RH, ensure proper ventilation to prevent condensation on the probe, which could affect the measurement.
4. Do not open the transmitter housing without the manufacturer's permission to prevent damage to the transmitter circuitry.
VI. Order Model

Options	Product Model	accuracy
□	DT-THBWF-3	3.0%RH, 0.5℃
□	DT-THBWF-5	5.0%RH, 0.5℃
