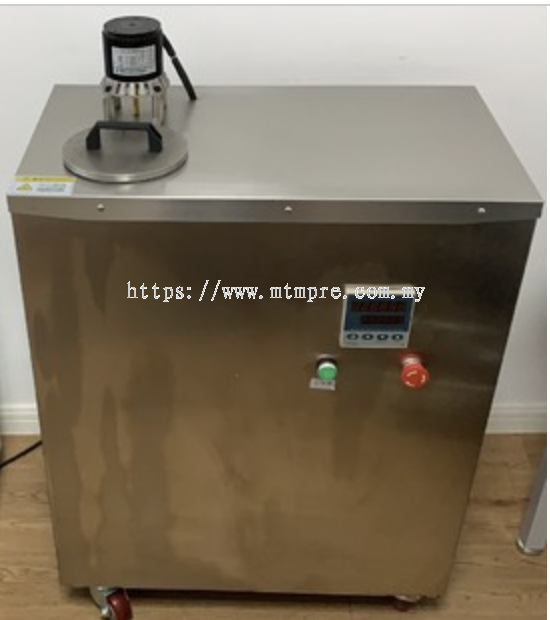

DATATEST DT-HT250 High Temperature Oil Tank

DATATEST DT-HT250 High Temperature Oil Tank

Kategori: Testing Instruments Tersedia
Untuk maklumat lanjut, lawati laman web rasmi kami di mtmpre.com.my

Penerangan

Brief introduction:
The newly designed high-temperature oil bath features a constant temperature and humidity control system, ensuring temperature control across the entire measurement range with a temperature fluctuation of 0.01℃, suitable for metrological verification, sensor calibration, etc. ◆ Digital display of set and actual temperatures, with a setting and display resolution of 0.01℃. ◆ Over-temperature protection and sensor open-circuit and short-circuit protection functions, automatic restart after power failure, ensuring excellent and safe instrument operation. ◆ Components that may come into contact with the working medium, such as the inner tank, heater, and evaporator, are made of 304 stainless steel, ensuring durability and an aesthetically pleasing design.
Details:
High-temperature oil tank
1. Product Description
◆ A newly designed constant temperature and humidity control system provides temperature control across the entire measurement range, with a temperature fluctuation of ±0.01 ℃ suitable for metrological verification, sensor calibration, etc.
◆ The digital display shows the set temperature and the actual temperature, with a setting and display resolution of 0.01 ℃ .
◆ Features over-temperature protection and sensor open-circuit and short-circuit protection, and automatic restart after power failure, ensuring excellent and safe operation of the instrument.
◆ Components that may come into contact with the working medium, such as the inner tank, heater, and evaporator, are made of 304 stainless steel, which is durable and aesthetically pleasing.
2. Main technical specifications:
Controller /Liquid Tank CD81/ Refrigerator BH8102-oil
constant temperature range RT+10- 250
isothermal fluctuation ±K 0.01
Digital display resolution 0.01
Outdoor unit dimensions ( W×D×H) mm 400 700 940
Inner liner dimensions ( W×D×H) mm Φ 00 * 480
flow L/MIN 15
Temperature protection   High temperature protection, low temperature protection
power supply   AC220V±10%, 50Hz, 15A
3. Measurement and control system:
3.1 Temperature measurement: PT100 platinum resistance thermometer.
3.2 Control device: High-precision intelligent temperature and humidity control instrument with digital display, good control accuracy and convenient operation.
3.3 Setting accuracy: 0.1℃;
4. Equipment operating conditions
4.1 Power supply: 220±10% V, 50 ±1%  Hz
4.2 Ambient temperature: 5~35℃;
4.3 Ambient humidity:  ≤85% RH ;
4.4 Air  quality: No high concentrations of dust or corrosive gases ;
5. Accompanying technical documents and attachments
Technical documents: Product certificate of conformity, instruction manual, warranty card;
