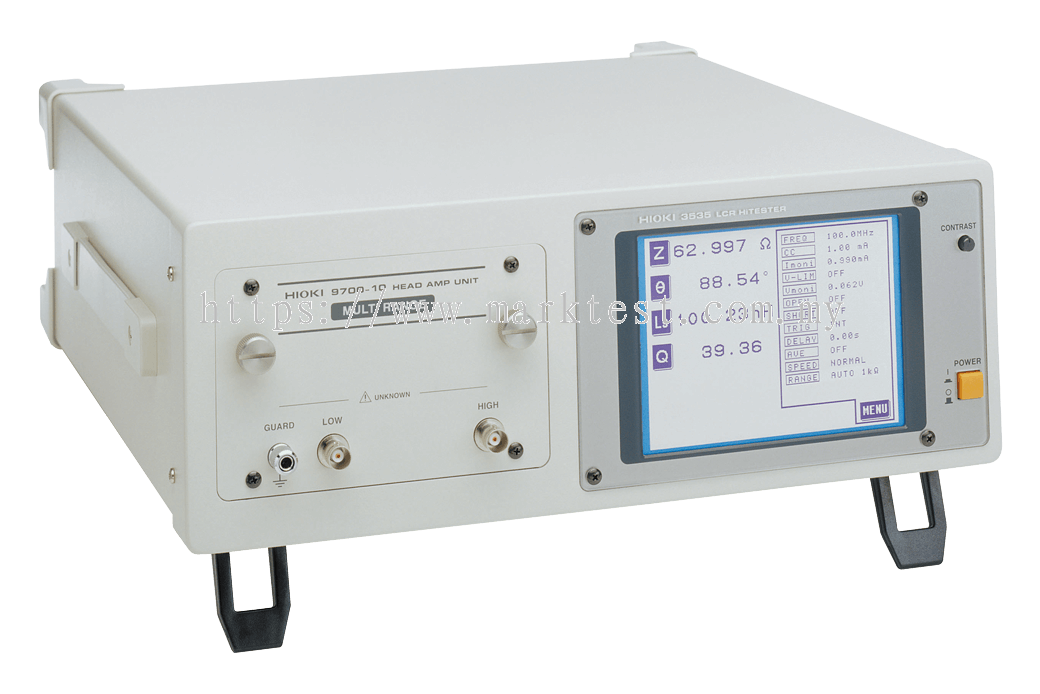

HIOKI 3535 LCR HiTester

HIOKI 3535 LCR HiTester
High-frequency 100 kHz to 120 MHz LCR Tester for High Speed Testing of Chip Inductors and Magnetic Heads during Research and Development

Discontinued > HIOKI IM7580A Impedance Analyzer


---

OVERVIEW

Key Features

• High speed LCR testing (6ms/sample)
• Load Compensation Function
• BIN (Classification) Measurement
• Memory capable of storing up to 200 measured values
• Detachable Head Amp
• Print measured values and comparator results with the Printer 9442 (option)

Model No. (Order Code)

3535	Discontinued
9700-10	Discontinued, For the 3535 only

A Head Amp Unit 9700-10 must be factory adjusted for dedicated use with the 3535 before delivery.
This product is not supplied with test fixtures. Please select and purchase the test fixture options appropriate for your application separately.


---

SPECIFICATIONS

Basic specifications
Accuracy guaranteed: 6 months


Measurement parameters	Z, Y, θ, Rp, Rs (ESR), G, X, B, Cp, Cs, Lp, Ls, D (tanδ), Q
Measurement range	1 k/10 k/100 kΩ (Depend on the 9700-10, All parameters defined by Z)
Extent of measurement impedance (Note: All measurement ranges except for Z are for reference only)		1 kΩ range	10 kΩ range	100 kΩ range
	Z, R	100 mΩ to 2 kΩ	1 kΩ to 20 kΩ	10 kΩ to 300 kΩ
	C	0.66 pF to 15.9 μF	0.066 pF to 1.59 nF	4.4 fF to 159 pF
	L	0.133 nH to 3.18 mH	1.33 μH to 31.8 mH	13.3 μH to 477 mH
	θ	-180.00° to 180.00°
Basic accuracy	Z: ±0.5 % rdg., phase angle: ±0.3° (typ.)
Measurement frequency	100 kHz to 120 MHz (100 Hz to 100 kHz steps)
Measurement signal level	5 mV to 1 V, 20 mA max. (100 kHz to 10.00 MHz) 5 mV to 500 mV, 10 mA max. (10.01 MHz to 120 MHz), (1 mV steps) 200 µA to 20 mA: 1 V max. (100 kHz to 10.00 MHz) 200 µA to 10 mA: 0.5 V max. (10.01 MHz to 120 MHz), (10 µA steps)
Output impedance	50 Ω (at 100 kHz)
Display	LCD with backlight display, 99999 (3, 4, or 5 digits unit setting possible)
Measurement time	6 ms (nominal)
DC bias	N/A
Functions	Load compensation function, Classification (BIN) Measurement, Comparator, Averaging, External input/Output (EXT. I/O), GP-IB or RS-232C interface
Power supply	100V to 240 V AC, 50/60 Hz, 50 VA max.
Dimensions and mass	360mm (14.17in) W × 130mm (5.12in) H × 360mm (14.17in) D, 8.3kg (292.8oz)
Included accessories	Quick start manual × 1, Instruction manual × 1, Power cord × 1



---

ACCESSORIES

Factory option (0)
Note: Head Amp Unit must be factory adjusted for dedicated use with the 3535 before delivery

Probe and Test fixtures (2)
*use of the 9677 with Model 3535 will not comply with CE mark

SMD TEST FIXTURE 9677
Direct connection type, For measuring SMDs with electrodes on the side; DC to 120 MHz, test sample dimensions: 3.5 mm ±0.5 mm (0.14 in ±0.02 in)

SMD TEST FIXTURE 9699
Direct connection type, For measuring SMDs with electrodes on the bottom; DC to 120 MHz, test sample dimensions: 1.0 mm (0.04 in) to 4.0 mm (0.16 in) wide, max. 1.5 mm (0.06 in) high

PC communication (2)
GP-IB CONNECTOR CABLE 9151-02
2 m (6.56 ft) length

RS-232C CABLE 9637
9 pin - 9 pin, cross, 1.8 m (5.91 ft) length

Printer options (2)
RECORDING PAPER 1196
112 mm (4.41 in) × 25 m (82.03 ft), 10 rolls/set

CONNECTION CABLE 9444
9 pin - 9 pin straight, 1.5 m (4.92 ft) length
