S.E - Radiation Alert Ranger

S.E - Radiation Alert Ranger
Brand : S.E. International

Product Description :
The Ranger is a small, handheld, digital survey meter which offers excellent sensitivity to low levels of alpha, beta, gamma, and x-rays. It has built in efficiencies for common isotopes to calculate activity in Bq and DPM. It has a backlit display and a count light and a beeper that sounds with each count detected. Other features include selectable alert levels, an adjustable timer, and an optional wipe test plate.

Specification :
1. Detector
Internal Halogen-quenched, uncompensated GM tube with thin mica window, 1.4-2.0 mg/cm2 areal density. Effective diameter of window is 45 mm (1.77 in.).


2. Operating Range mR/hr – .001 (1µR) to 100 CPM – 0 to 350,000 µSv/hr – .01 to 1000 CPS – 0 to 5000 Total Counts- 1 to 9,999,000 counts

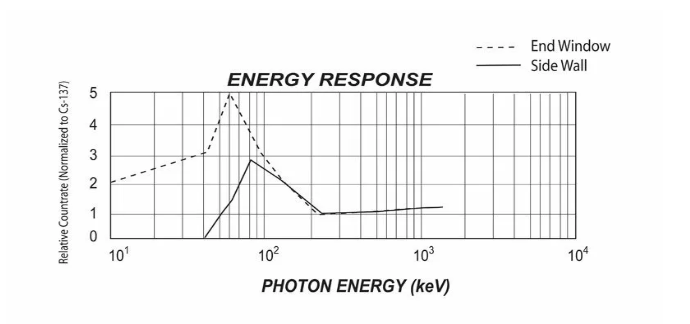

3. Energy Sensitivity
Detects Alpha down to 2 MeV. Detects Beta down to .16 MeV; typical detection efficiency at 1 MeV is approx. 25%. Detects Gamma and X-rays down to 10 KeV through the detector window. 3340 CPM/mR/hr (137Cs). Smallest detectable level for 125I is .02 µCi at contact.


4. Built-in Efficiencies
Sulfur (35S), Strontium (90Sr/y), Cesium (137Cs), Phosphorus (32P), Carbon (14C), Iodine (131I), Cobalt (60Co), and Alpha

5. Display
Graphic LCD with Backlight

6. Anti Saturation
Meter will hold at OVER RANGE in fields as high as 100 times the maximum reading.

7. Averaging Periods
This radiation detector display updates every 3 seconds. At low background levels, the update is the average for the past 30-second time period. The timed period for the average decreases as the radiation level increases.

8. Count Light
Red LED flashes with each radiation event.

9. Audio Indicator
Internally mounted beeper (can be switched off for silent operation)

10. Power Requirements
USB Power or Two (2) AA alkaline batteries (included). Approx. 800 hrs @ background.

11. Accuracy
Reference to Cs137
Typically ±15% from factory, ±10% with NIST Source Calibration NIST Calibration Additional

12. Selectable Alert Settings
mR/hr .001 – 100 and CPM 1 – 350,000. Pulsating beeper sounds the alert. Adjustable alert levels are used for mR/hr / CPM, and µSv/hr / CPS. 70db @ 1m. Alarm will sound when in Timer Mode when set alarm threshold is reached.

13. Temperature Range
-10° to +50°C (14° to 122°F)

14. Humidity
10% to 70% Non-Condensing
