The AirTAC RMT Series is an advanced pneumatic rodless cylinder engineered for high-precision linear motion in space-constrained environments. Utilizing a powerful magnetic coupling system, a mobile internal piston drives an external carriage along the main tube, eliminating the need for a traditional piston rod and saving significant installation space.
What sets the RMT series apart is its double guide system, which provides exceptional precision and the ability to endure significant side or prejudicial loads. With a completely isolated design that makes it inherently dustproof, and a dual-cushioning system for smooth deceleration, the RMT series is the ideal choice for high-reliability automation and material handling.
Key Features:
Integrated Double Guides: Ensures high-precision travel and superior capacity to handle side loads.
Magnetic Coupling Technology: Employs high-strength annular magnets for a secure, rodless connection between the piston and carriage.
Space-Saving Footprint: The compact rodless design allows for long strokes within a minimal physical profile.
Dustproof Isolation: Total separation between internal and external components protects the unit from environmental contaminants.
Advanced Impact Control: Features non-adjustable rubber bumpers and adjustable pneumatic cushioning on both ends for smooth, quiet operation.
Shock Absorber Compatible: Designed to work with optional shock absorbers for even more perfected cushioning in high-velocity applications.
| Bore size (mm) | 16 | 20 | 25 | 32 | 40 |
| Acting type | Double acting | ||||
| Fluid | Air(to be filtered by 40μm filter element) | ||||
| Operating pressure | 0.2~0.7MPa(30~100psi)(2.0~7bar) | 0.25~0.7MPa(36~100psi)(2.5~7bar) | |||
| Proof pressure | 1.2MPa (175psi)(12.0bar) | ||||
| Temperature (°C) | -20°C to 70°C | ||||
| Speed Range (mm/s) | 50–400 mm/s | ||||
| Stroke Tolerance (mm) | 0~250 (+1.0/0), 251~1000 (+1.5/0), 1001~ (+2.0/0) | ||||
| Cushion type | Fixed cushion, Shock absorber(Available) | ||||
| Safe holding force (N) | 140 | 220 | 345 | 560 | 880 |
| Port size | M5×0.8 | 1/8" | 1/4" | ||
| Bore size (mm) | Standard Stroke (mm) | Max STD Stroke (mm) |
| 16 | 50 100 150 200 250 300 350 400 450 500 | 750 |
| 20 | 50 100 150 200 250 300 350 400 450 500 600 700 750 800 | 1000 |
| 25 | 50 100 150 200 250 300 350 400 450 500 600 700 750 800 | 1500 |
| 32 | 50 100 150 200 250 300 350 400 450 500 600 700 750 800 | 1500 |
| 40 | 50 100 150 200 250 300 350 400 450 500 600 700 750 800 900 1000 | 1500 |

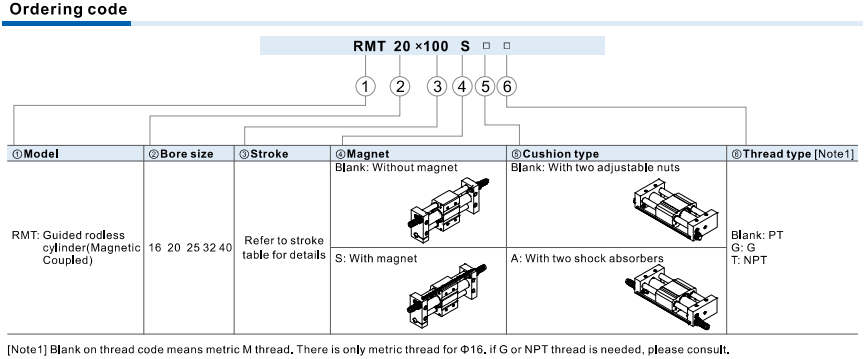

.png)

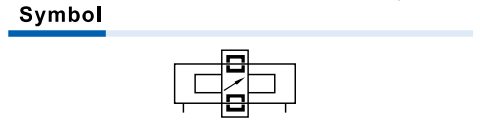

.png)
