The AirTAC HRS Series is a high-performance rotary actuator designed for stable and powerful rotational motion. Utilizing a rack and pinion design, this series ensures reliable functioning and is built with a double cylinder structure to achieve double the rotational force.
Key Features:
High Output Force: The double cylinder architecture allows for double force output during rotation.
Simplified Installation: Guide holes are strategically designed on both sides of the cylinder body for easy setup.
Superior Cushioning: Standard models include both a bumper and an air cushion for excellent impact absorption.
Note: HRS10 and HRS15 models are equipped with bumpers only.
Reliable Mechanism: Rack and pinion design provides consistent, stable functioning for rotary automation tasks.
| Specification | 10 | 15 | 20 | 30 | 40 |
| Acting type | Double rack and pinion(Double acting) | ||||
| Fluid | Air(to be filtered by 40μm filter element) | ||||
| Operating pressure | 0.25~0.7MPa (37~100psi)(2.5~7.0bar) | 0.15~0.7MPa (22~100psi)(1.5~7.0bar) | |||
| Proof pressure | 1.2MPa(175psi)(12.0bar) | ||||
| Temperature | -20~70℃ | ||||
| Angle adjustment range | 0~190° | ||||
| Repeatable precision | 0.2° | ||||
| Theoretic moment(N.m)(0.5MPa) | 0.33 | 1.1 | 2.2 | 2.8 | 5 |
| Cushion type | Rubber bumper | Bumper and air cushion | |||
| Port size | M5×0.8 | 1/8" | |||
| Weight g | 145 | 359 | 822 | 1120 | 1806 |

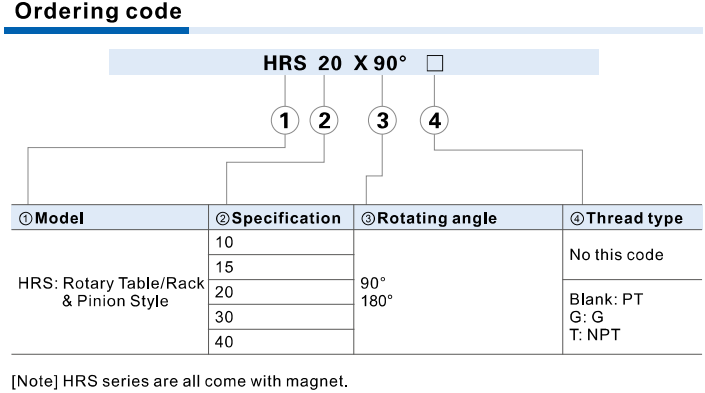

.png)
.png)
