OMRON Analog Input/Output Unit CPM1A Series (CPM1A-MAD01-NL/CPM1A-MAD02-CH)

The CPM2A brick-style controllers offer one of the most powerful, small-scale control solutions in the industry today. They provide 20, 30, 40 or 60 I/O point CPUs, pulse I/O for position control, multiple communications ports and a powerful instruction set.


Model :


• CPM1A-MAD01-NL
• CPM1A-MAD02-CH

• Single analog output (voltage/current) and two analog inputs (voltage/current)
• Voltage output ranges: 0V to +10V, -10V to +10V
• Current output range: 4mA to 20mA
• Input signal ranges: 0V to +10V, +1V to +5V, 4mA to 20mA
• High resolution: 1/256 (current/0-10V), 1/512 (-10V to +10V)
• Fast conversion time: 10ms max. per unit

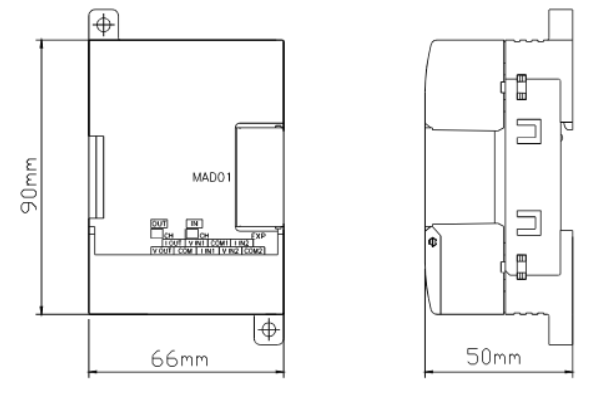

• Compact dimensions: 66(W) x 50(H) x 90(D) mm
• Broken wire detection for 1-5V/4-20mA input ranges
• Expandable Up to 120 I/O Points
• Peripheral and RS-232C Ports Standard for Direct Connection to Serial Devices and Programming Tools
• Removable Terminals
• Synchronized Pulse Control Coordinates Input Devices with Control Devices
• Auxiliary 24 VDC Supply (AC Type Only)
• Relay or Transistor Outputs
• Analog I/O Expansion Modules Available
• Temperature Sensor Input Expansion Modules Available
• Real-Time Clock
• 20 kHz High-Speed Counter Input
• Two, 10 kHz Pulse Outputs for Position Control Applications
