Description
EDX-T6 X-Ray Fluorescence Spectrometer
The EDX-T6 is an advanced X-ray fluorescence spectrometer designed specifically for RoHS testing in the electronics and electrical industries. It plays a vital role in detecting hazardous substances during incoming material inspections and finished product outgoing inspections within supply chains such as 3C electronics, toys, plastics, and mobile digital products. Utilizing the EDX-T6 helps enterprises effectively reduce environmental and safety risks.
Key Features:
Enhanced Safety Measures: Equipped with a SafetyLock system to prevent radiation hazards caused by unsafe handling or accidental opening of the cover. Additional safety devices include safety interlocks and cover locks, ensuring safe operation at all times.
Integrated and Reliable Design: Features a built-in industrial computer that offers longer service life and simplifies operation by eliminating external connections. The design fosters reliability and convenience.
Modular Construction: Core components are designed as independent modules, shielded from each other to improve electromagnetic interference resistance, enhance detection limits, and reduce failure rates.
Wide Voltage Compatibility: Supports a broad voltage range of AC110-250V, making it adaptable to different regional power systems, especially in areas with fluctuating voltage.
Versatile Testing Configurations: Offers multiple collimator and filter options (5-9 groups) to accommodate samples of various sizes, shapes, and materials, meeting diverse testing requirements.
Detector Protection: The detector window employs a collimator that matches the crystal size, providing protection for the beryllium window and reducing the risk of accidental damage, thereby lowering maintenance costs.
User-Friendly Operation: Features an integrated USB speaker for prompt tones after testing, allowing operators to perform other tasks during long waiting periods and improving overall workflow efficiency.
High-Definition Sample Positioning: Comes with an 8-megapixel camera, enabling precise sample positioning and easier handling.
Application and Software Functions:
Permission Management: Customizable user permissions for routine operators and maintenance personnel ensure stable data management.
X-Ray Tube Aging Visualization: Displays a stepped climb visualization of the tube's aging process, helping extend its service life and reduce maintenance expenses.
Multiple Limit Standards: Supports preset standards such as RoHS, Halogens, Heavy Metals, and allows self-defined standards, with flexible ordering based on test frequency.
Efficient Reporting: One-click editing and exporting of test reports in Excel, PDF, and other formats facilitate internal statistical analysis.
Special Element Detection: Capable of detecting elements in plastics (S, As, Se, Ba, Sn, Sb) and full-element analysis for metal materials like stainless steel and copper alloys.
Layer Thickness Measurement: Provides detection of electroplating layer thickness for surface coatings.
Bilingual Interface: Supports switching between Chinese and English menus with a single click.
Customizable Reports: Offers a variety of report formats to meet diverse enterprise needs.

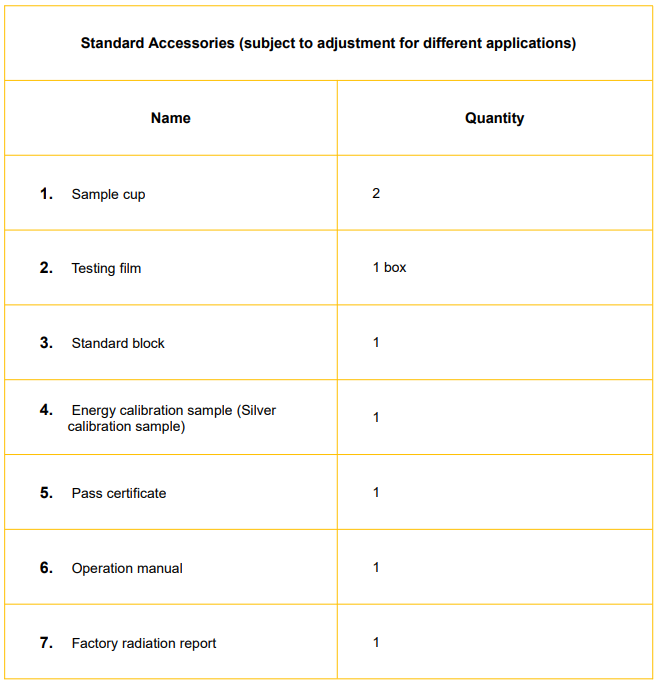

Included Accessories:

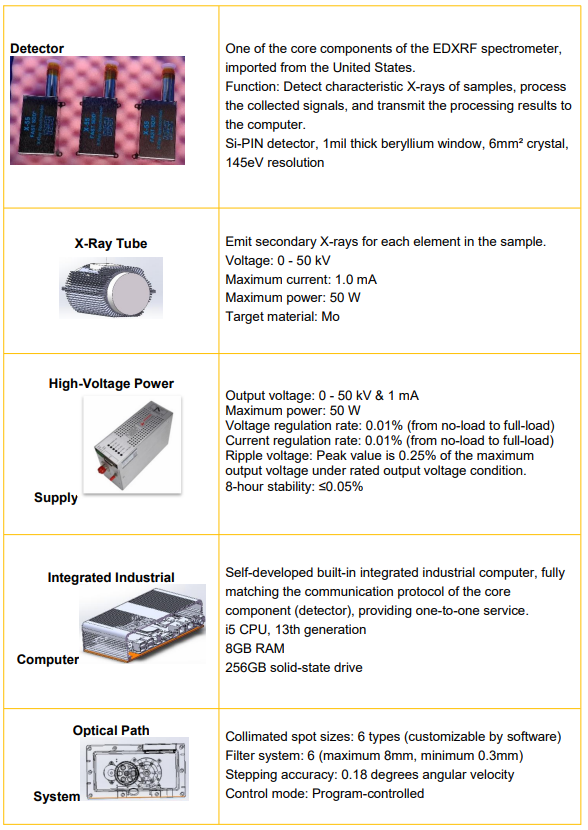

Core Components of EDXRF Analyzer

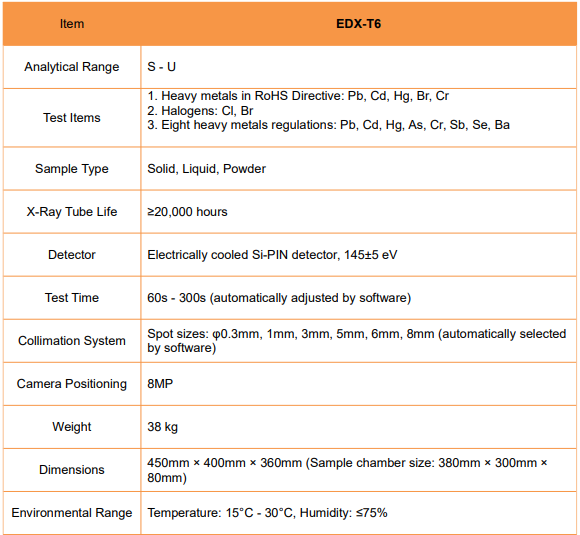

Technical Specifications of EDXRF Analyzer
