Description

Description

Jikowa PU Ceiling Panel provides the perfect choice for interior and exterior decoration. Jikowa NG3 and NG4 PU Ceiling Panel had Polyurethane (PU) applied on its ceiling panel. It provides excellent heat resistance, good sound absorption, mechanical and dimensional stability of ceiling or wall assembly and great aesthetic appearances using concealed fastener system.

Characteristics & Advantages

Cleaner modern look compared to traditional plaster ceilings
Faster installation
Lower maintenance
Suitable for outdoor use
Good durability in Malaysian weather

Application

Residence
Hotel
Retail Outlet
Airport Kiosk
Hospital
Restaurant
School / Public Hall
Car Porch
Office
House Wall Extension
Factory

Specification

Profile	Jikowa® NG3 PU Ceiling Panel
Effective Width	365 mm
Steel Grade	Zincalume G300 Steel
Outer Layer Finishing	Zacs Natural, Element, Colorbond Petal
Inner Layer Finishing (PU Foam)	Aluminium Foil
Inner Layer Finishing (PU Metal)	Dove White 0.25 mm TCT
PU Foam Thickness	18 mm
PU Foam Insulation Density	40 kg/m²
Structure Spacing	1.2m, 1.5m
Application	Exterior, interior ceiling & wall
Recommended Screw	DSTH 310
Tolerance	Length ± 3 mm, Width ± 2 mm, Metal Thickness ± 0.03 mm, PU Thickness ± 2 mm

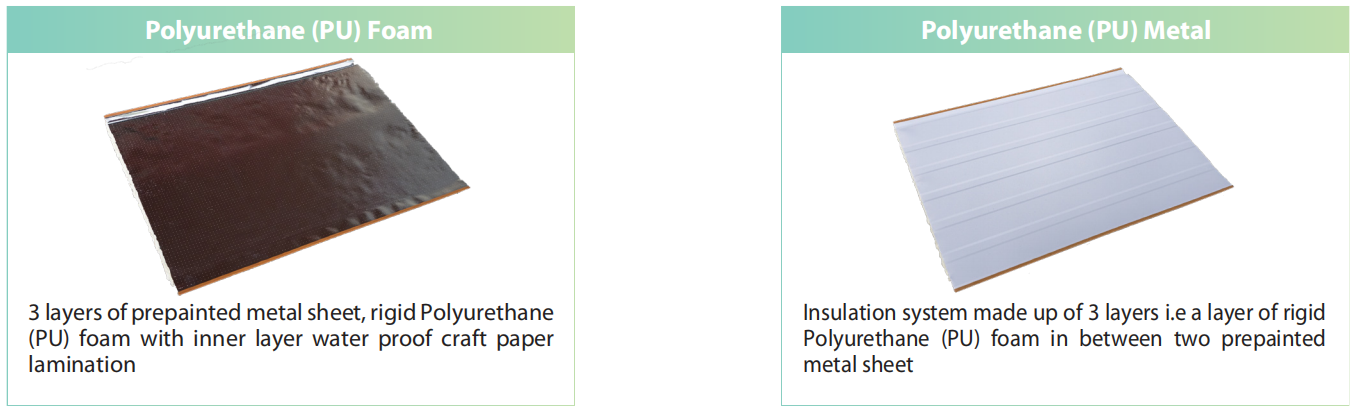

*Polyurethane (PU) Foam / Metal insulated applied only on Jikowa NG3 & NG4 PU Ceiling Panel

Thickness Available

Jikowa Ceiling Panel PU Foam (NG3 & NG4 PU Foam Ceiling Panel)

Thickness BMT (mm)	Thickness TCT (mm)	Weight (kg/meter)
0.25	0.30	1.10
0.30	0.36	1.30
0.35	0.40	1.50

Jikowa Ceiling Panel PU Metal (NG3 & NG4 PU Metal Ceiling Panel)

Thickness BMT (mm)	Thickness TCT (mm)	Weight (kg/meter)
0.25	0.30	1.86
0.30	0.36	2.06
0.35	0.40	2.26

*PU Metal Weight is based on inner metal skin 0.25 mm TCT

Insulation Properties

Item	Specifications
Type of Insulation	Rigid Polyurethane (PUR)
Foam Density	40 kg/ m³
Insulation Guide	Non COC, Non HCFC
K Value (Thermal Conductivity)	0.024 w/mk - 0.026 w/mk
Thickness of Insulation	18 mm
U Value (Thermal Transmittance)	1.60 w/m²k
R Value (Thermal Resistance)	0.625 w/mk

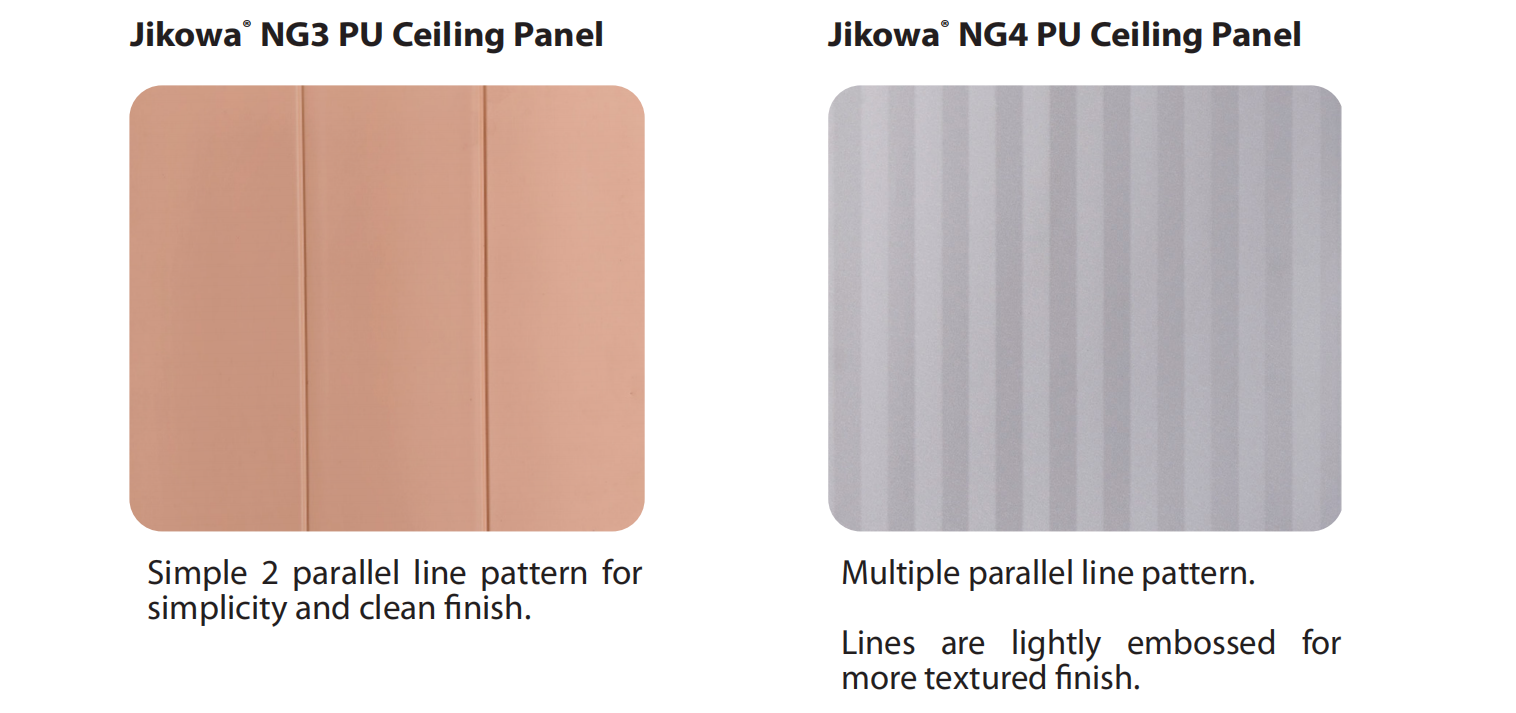

Profile Differences

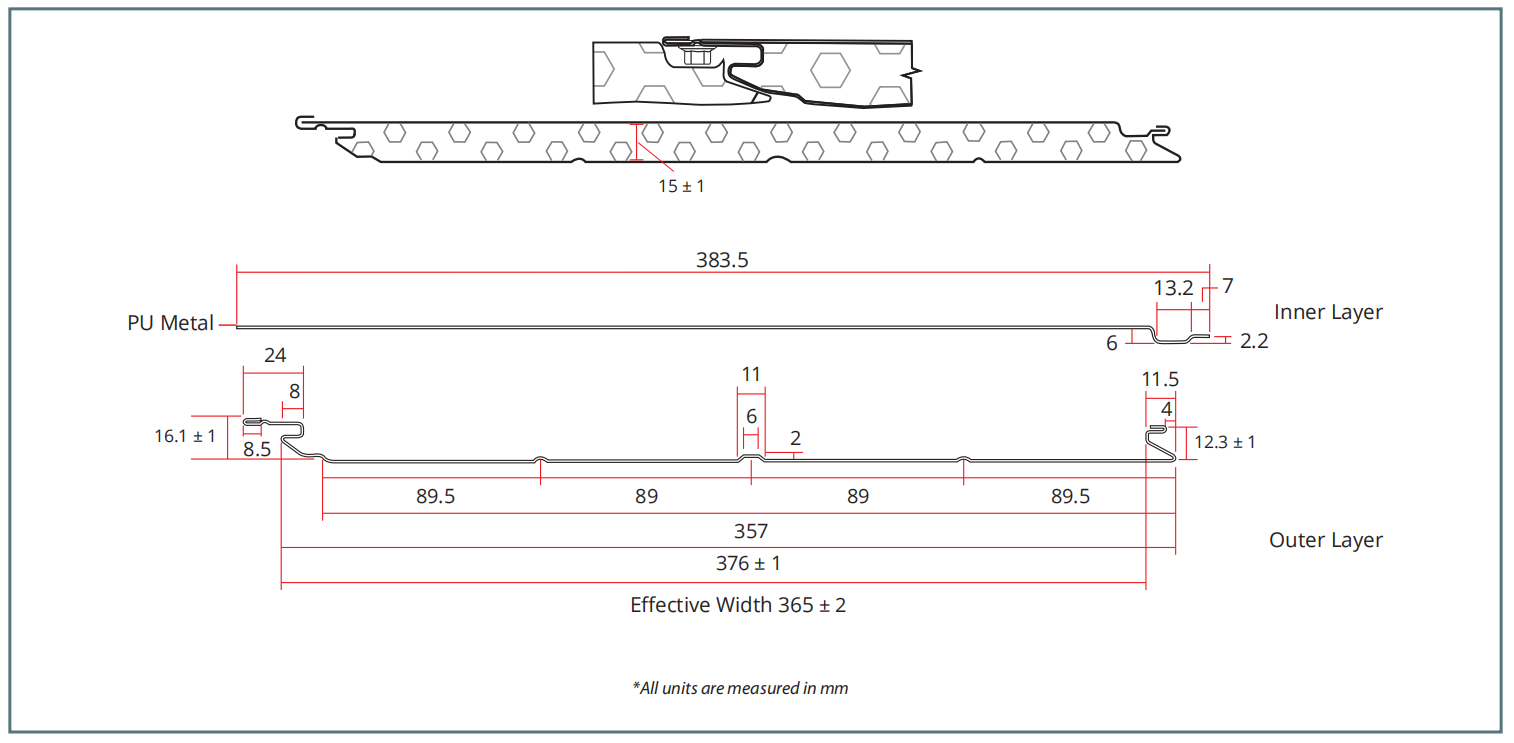

Specification Drawing

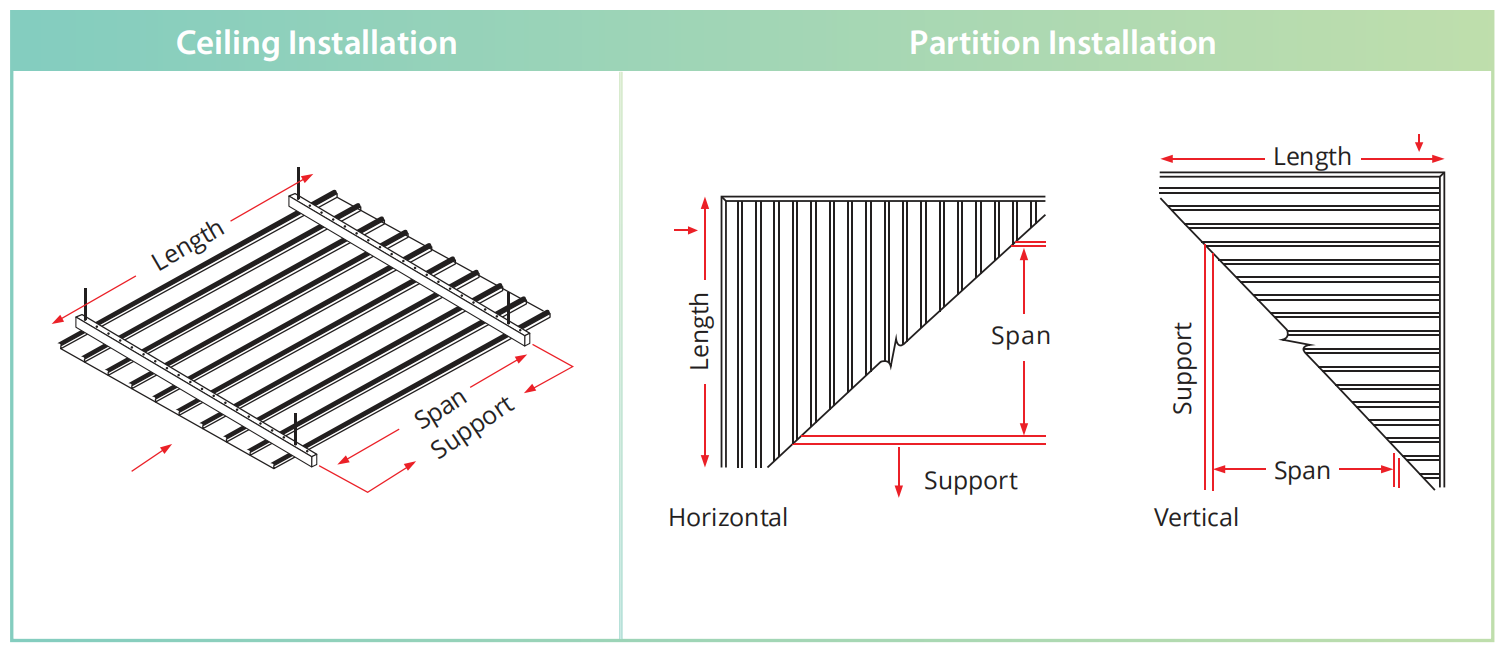

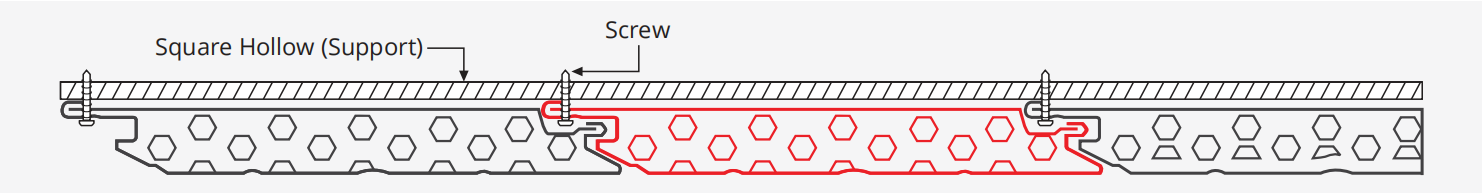

Installation Method

Jikowa NG3 & NG4 PU Ceiling Panel

Recommended Installation Specification

Thickness TCT (mm)	Recommended Max. Length (m)	Recommended Span (mm)	Available Color	Usage
0.30	6.0	1200	Zacs	Ceiling & Wall Cladding
0.36	10.0	1200	Zacs & Element	Ceiling & Wall Cladding
0.40	12.0	1200	Zacs, Element, Colorbond Petal	Ceiling & Wall Cladding

Material warranty on perforated by corrosion (term & condition apply):

Up to 10 years – Bluescope Zacs Cool AZ90, Bluescope Zacs Natural AZ90
Up to 25 years – Bluescope Clean Colorbond AZ150, Vermoe Steel AZ150
