Description

Auto-focus HDMI Industrial Digital Camera

Evocus H10.001 is a multiple interfaces (HDMI+WiFi+SD card) CMOS camera with autofocus function and it adopts ultra-high performance Sony CMOS sensor as the image-picking device.

Features

Auto-focus HDMI Industrial Digital Camera

All in 1( HDMI+WiFi) C-mount camera with Sony high sensitivity CMOS sensor;
1920 × 1080 (1080P) video resolution;
Record 1080P video(ASF format) into SD card;v
5~2M resolution captured image(XFCAM1080PHB/PHD);
HDMI/WiFi output simultaneously;
Auto/Manual focus with the movement of the sensor;
Built-in mouse control;
Built-in image capture & video record to SD card;
Built-in camera control panel for mouse control;
Built-in toolbar including zoom, mirror, comparison, freeze, cross, browser functions;
Built-in image & video browsing, display & play;
Ultra-Fine color engine with perfect color reproduction capability;
CNC shell molding design

Ultra-High Performance

Evocus H10.001 is a multiple interfaces (HDMI+WiFi+SD card) CMOS camera with autofocus function and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+WiFi are used as the data transfer interface to HDMI display or computer.

Powerful Auto-focus Function

The camera embedded Auto/Manual focus function can obtain the clear image at ease. No hand rotation of the microscope Coarse/Fine knob is needed. Start your inspection without any delay with the fast speed aut-focus function.

Smart Built-in Software Layout (HDMI Output)

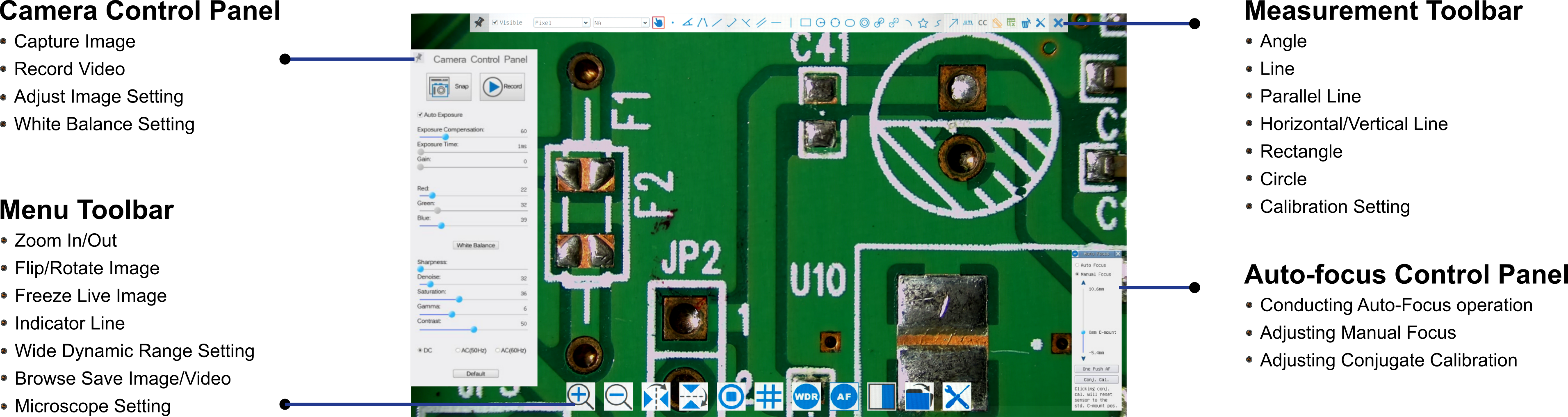

For HDMI output, a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video.

Specifications

Model	Sensor & Size(mm)	Pixel(μm)	G Sensitivity Dark Signal	FPS/Resolution	Binning	Exposure
EVS-H10.001	1080P/2M/ Sony IMX185(C) 1/1.9″(7.20×4.05)	3.75 x 3.75	1120 mv with 1/30s 0.15 mv with 1/30s	60@1920×1080 (HDMI) 25@1920×1080 (WiFi)	1×1	0.06ms~918ms

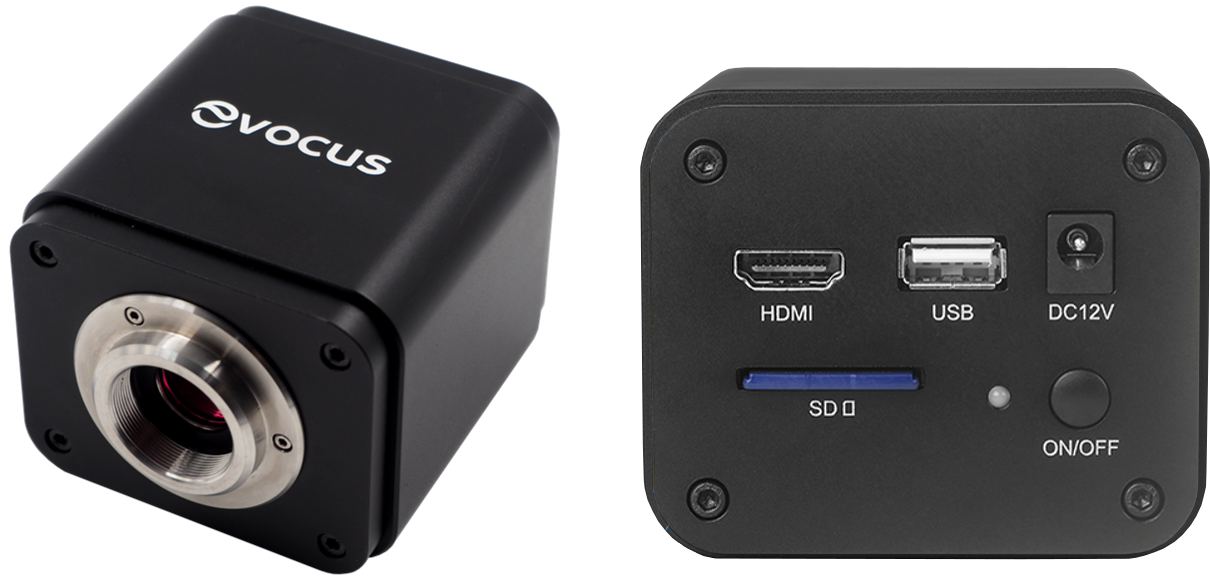

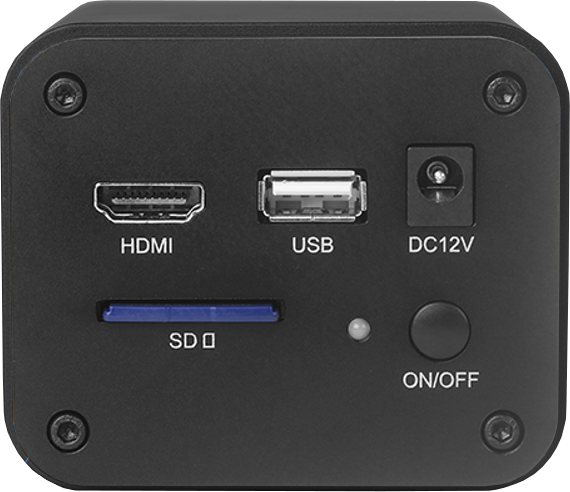

Interface & Button Functions
USB	USB Camera or USB Mouse
HDMI	HDMI Output
DC12V	12V Power in
SD	SD Card Slot
ON/OFF	Power On/Off Switch
LED	Power On Indicator

Other Specification for HDMI Output
UI Operation	With USB Mouse
Image Capture	JPEG Format with 2M Resolution in SD Card
Video Record	ASF Format 1080P 60fps in SD Card
Camera Control Panel	Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control
Auto-focus Control Panel	Including Auto-focus, Manual Focus, One Push AF and Conjugate Correction Functions
Toolbar	Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function

Software Environment (for USB2.0 Connection)
Operating System	Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit) OSx(Mac OS X), Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 4GB or More
	USB port: USB2.0 High-speed Port
	Display: 19″ or Larger
	CD Rom

Operating Environment
Operating Temperature	-10 °C~ 50 °C
Storage Temperature	-20 °C~ 60 °C
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 12V/2A Adaptor

Overall Dimension
Width x Depth x Height	78 mm (3.07”) x 70 mm (2.76”) x 92mm (3.62”)
Packing Weight	0.47 kg

Contact us today to inquire about the Auto-focus HDMI Industrial Digital Camera and enhance your inspection capabilities.
