TWO MODELS AVAILABLES

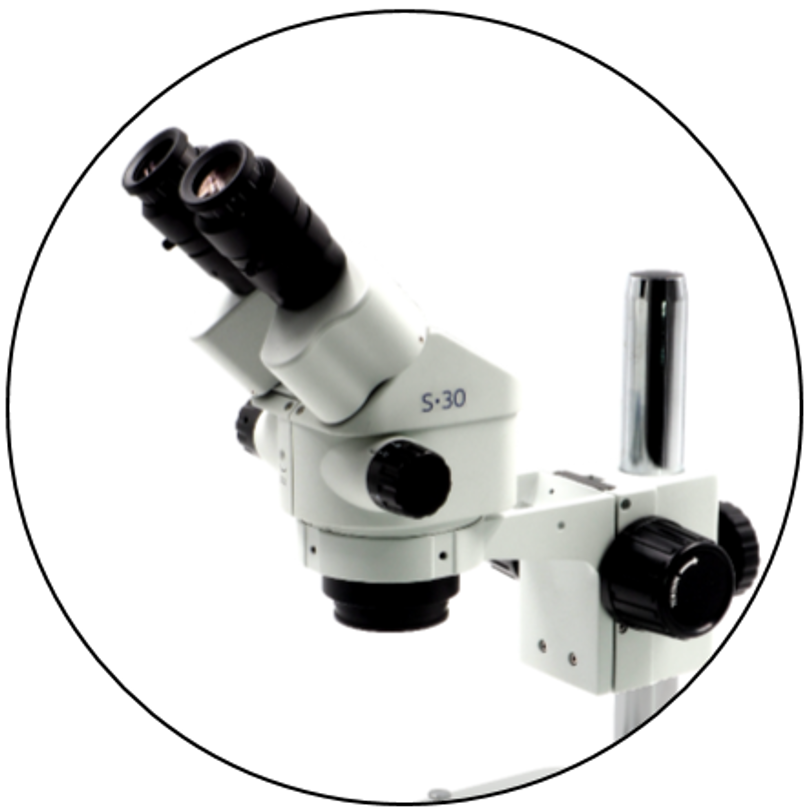

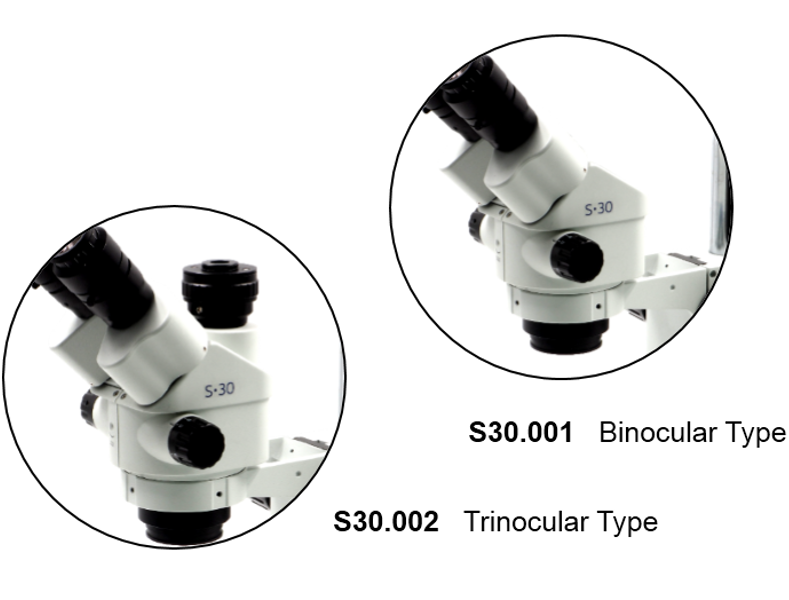

Evocus S30 series offers two model which are binocular type and trinocular type.
Evocus S30 series offers two model which are binocular type and trinocular type.
Evocus S30 series offers two model which are binocular type and trinocular type.
Excellent stereo microscope cater for demand in field of biological, medical, research, electronic testing for industry.
Evocus S30 design has been improved to make it more reliable to be use in the industry. The material also has been coated for more protection from outer surrounding.
| Optical System | Greenough Optical System with Full Coating |
| Zoom Ratio | 6.5:1 |
| Zoom Magnification | Continuous with Marking |
| Optical Magnification | 7x ~ 45x |
| Possible Zoom Range | 3.75x ~ 90x (with specific eyepiece & objective lens) |
| Zoom Drive | Horizontal Knob |
| Observation Tube | Binocular (S30.001) or Trinocular (S30.002) |
| Eyepiece | 10x/20mm (standard) |
| Inclination Degree | 45° |
| Interpupilary Distance | 54 – 75mm |
| Diopter Adjustment | +5/-5 |
| Working Distance | 100mm standard (30 – 165mm with objective lens) |
| Illumination | LED Ring Light (standard with LED-30) |
| Focusing Stroke | 50mm (tension adjustable) |

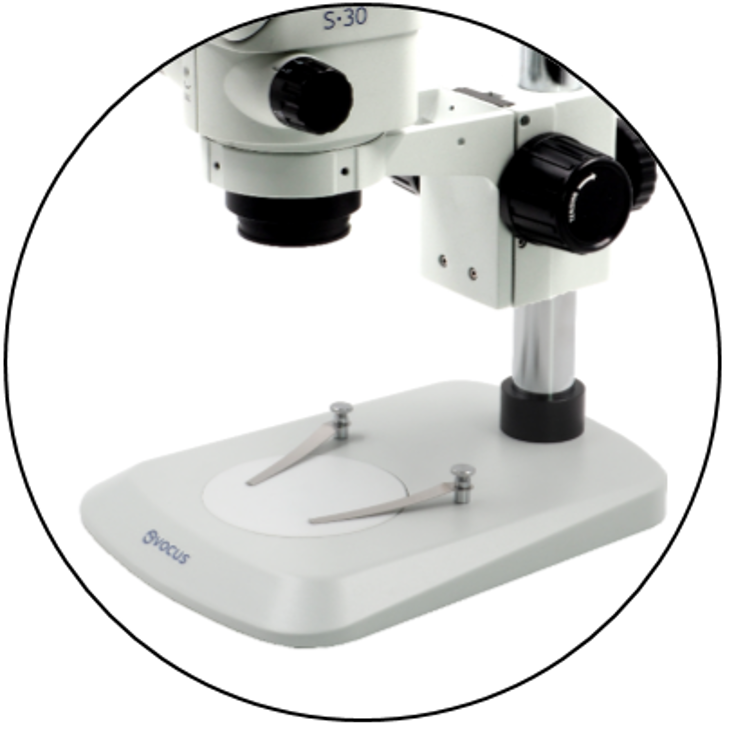

| Base & Stand | Base (210 x 273mm) and Pillar Stand (H248mm) |
| PRODUCT | CODE |
| Eyepieces 10x | S30.003 |
| Eyepieces 15x | S30.004 |
| Eyepieces 20x | S30.005 |
| Objective Lens 0.5x | S30.006 |
| Objective Lens 2.0x | S20.007 |
| LED-30 Ring Light (Standard) | L90.202 |
| Glass Protection Cover | L90.905 |
| Transparent Cover Cloth | L90.906 |
Contact us today to inquire about the Evocus S30 Series Stereo Microscope.
