Built-in digital torque gauge HTGS-TFX series is functional yet user-friendly model with 500N-cm(5N-m) to 1000N-cm(10N-m) capacity. It is designed to integrate the sensor into torque testers or torque control systems in production line for torque measurement. Its high sampling rate 2000Hz ensures high reproducibility of peak value testing and continuous data graphing.
Moreover, its various data output options improve testing versatility in terms of data management on a PC using supplied software, and combination with external devices. Next Series (Firmware Ver.5 or later) evolved for greater performances and extended functions, including enhancement of testing stability by further noise reduction, and firmware updates and various software downloads from IMADA download site.

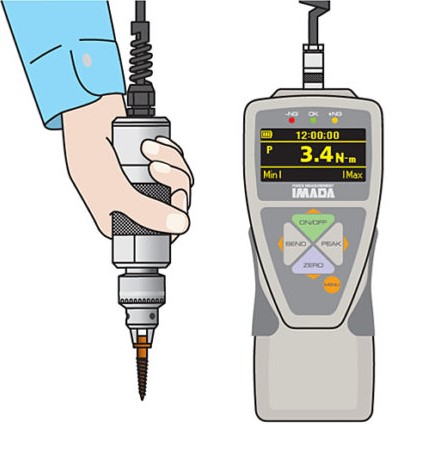

.jpg "HTGS4")
– Fast sampling rate 2000 Hz capture torque transition.
– Small influence of bending and slant force by double bearing structure.
– High bright organic EL display
– Multi language set up menu of English, Spanish, French, Chinese, German, Italian, Korean and Japanese.
– Easy connection with PC via USB
– Data logging software is included
– Optional graphing software is available

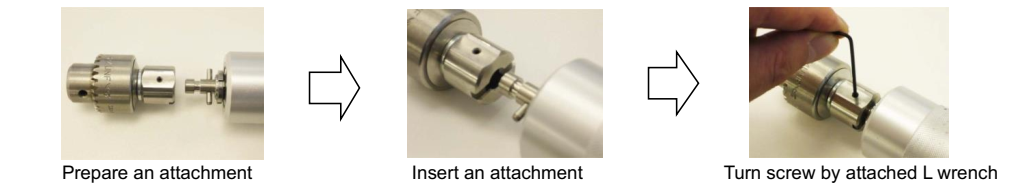

Easy operation of changing attachments
You can change the attachment according to a sample.
We offer custom made attachment for unique application.
You can change the attachment according to a sample.
We offer custom made attachment for unique application.
The HTGS torque tester features easy to use menus to make programming the gauge simple. Select units, reverse the display, set high/low setpoints, and set all other functions using plain language menus. Electro luminescent EL display shows torque value, unit, and peak, and can be configured with additional user-selectable data including memory data, +NG count, high/low setpoints, 1st and 2nd peaks, angle value (using HTGA model), etc. The HTGS also has a set of 3 indicator lights. The orange, green and red indicator lights can be used in conjunction with the programmable high/low setpoints for pass/fail testing. Color-coded LED indicators alert the user to Go/NoGo conditions. Process and transmit 2,000 actual data per second, not just the peak from a high sampling rate.
All new HTGS gauge includes the device driver and ZT Logger data acquisition software. ZT Logger can download data from the gauge memory or capture a continuous stream of data at 10 data/second. Zero the gauge or capture data while at the computer. All gauge programming can be set and saved from the software.
Optional Force Recorder Data Acquisition Software is designed to capture up to 2,000 data per second. No competitors’ gauges come close to this speed! Other functions include, gauge programming, graph overlay feature, automatic statistics generation.
| Model | HTGS-TFX |
| Outline | Standard model with various functions |
| Accuracy | ±0.5%F.S.±1digit |
| Unit of measurement (*1) | N-m, N-cm, kgf-m, kgf-cm, lbf-in, ozf-in (N-cm, kgf-cm, lbf-in and ozf-in are available for 0.5N-m.) |
| Display | 4-digit Organic EL |
| Display update | 16 / sec |
| Sampling rate | 2000 data / sec at maximum (*2) |
| Battery | Nickel-hydrogen battery / Operating time:8 hours (2 hours full charge) (*3) |
| Safe overload rating | Approx.200%F.S. |
| Operating environment | Temperature: 0 to +40 degree Celsius Humidity: 20 to 80%RH |
| Function | Customized display (header and footer), Peak hold (clockwise and counter-clockwise), Internal 1000 points data memory, Comparator (judgment of OK or NG), Reversible display, Sign inversion, Zero clear timer, +NG alarm, Off timer (auto power off), Dumping, Time display, setting lock |
| Output | USB, RS232C, Mitutoyo digimatic (*5), 2 VDC analog output (D/A), Comparator 3 steps (-NG/OK/+NG), Overload alarm |
| Overload warning | Approx.110%F.S. (Warning message and alarm ) |
| External connecting switch | SEND (a point of contact holding), Zero reset, Peak ON/OFF setting |
| Weight | Display: approx.490g |

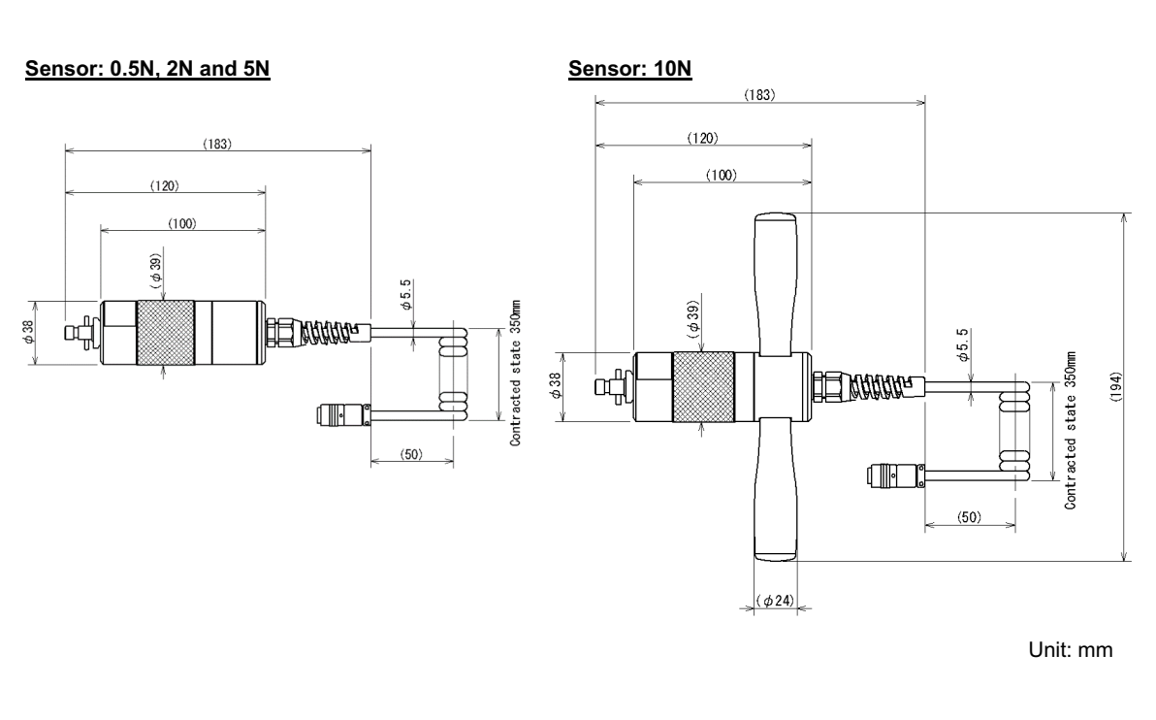

| Dimensions | See [Dimensions] |
| Accessory | AC adapter, Inspection certificate, CD driver (including simple software for data logging), USB cable, Carrying case, L wrench, handles (10N-m range only) |
| Japan Model | US Model | Capacity | Display | Resolution |
| HTGS-TFX-5N | HTGS-40 | 5N-m (500N-cm) | 5.000N-m (500.0N-cm) | 0.001N-m (0.1N-cm) |
| HTGS-TFX-10N | HTGS-85 | 10N-m (1000N-cm) | 10.00N-m (1000N-cm) | 0.01N-m (1N-cm) |
.png "HTGS5")
Contact us today to inquire about the HTGS-TFX series and enhance your torque measurement capabilities.
