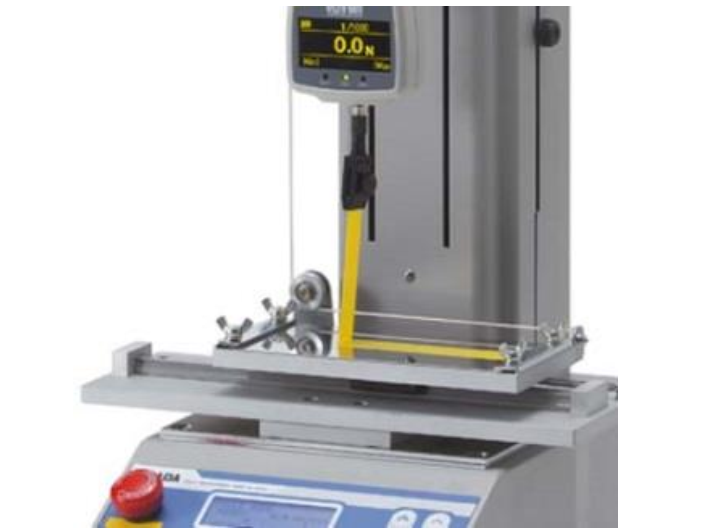

Improved Repeatability
- Constant testing speed and position for applying compression and tensile force
- Rugged design minimized influence of deformation (max. 0.5mm)

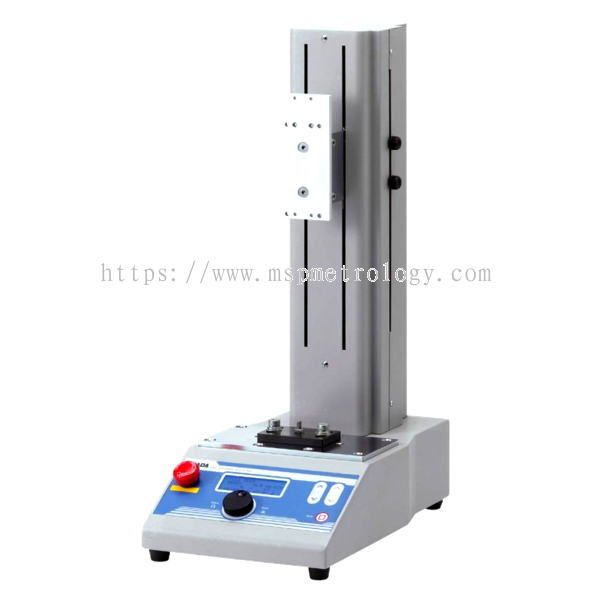

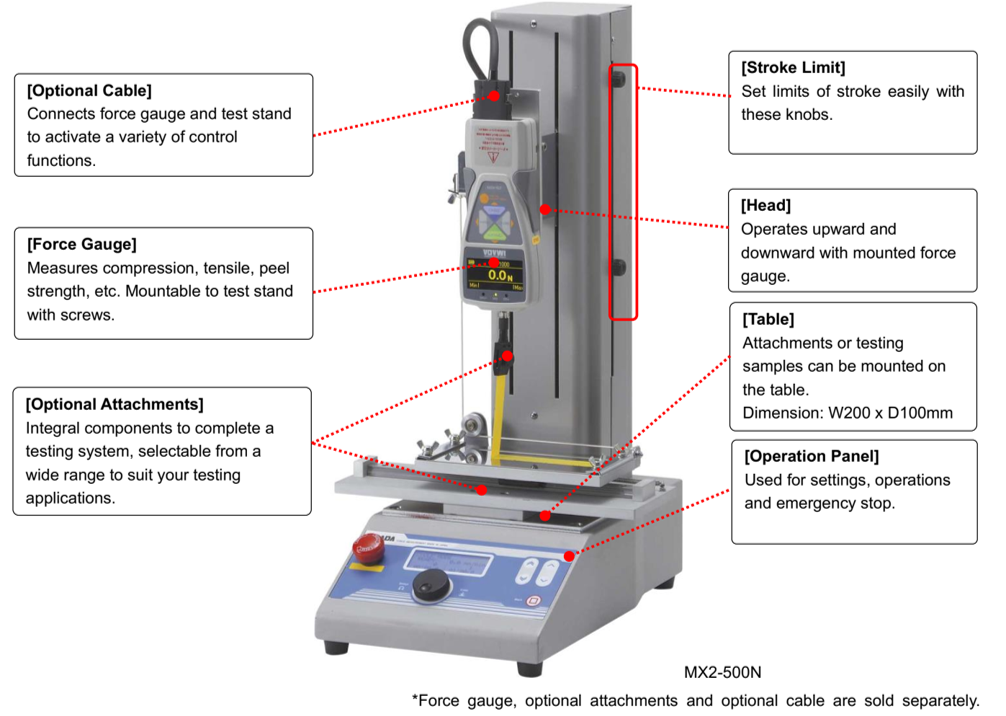

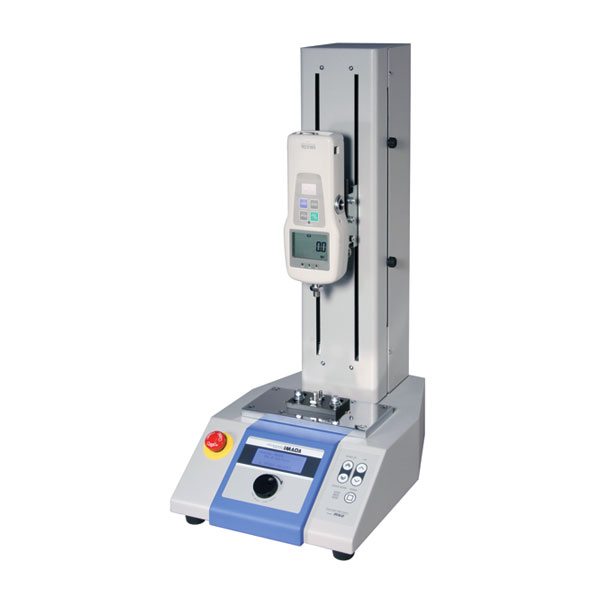

Standard motorized test stand has capacity of 5000N and is versatile and desktop, providing both the ease of use and functionality. Such functions and performance that enhance measurement repeatability, as digital speed setting and mechanical strength, are standard-equipped. A timer/counter function allows for durability and repetitive test. Strong deflection rigidity enables precise measurement.
Achieves high repeatability with constant testing speed and position, high rigidity
Handles various testing such as durability or compression testing with digital setting of speed, counter function (number of tests to repeat), and timer function (pausing time)
Handles a wide range of testing applications to meet your testing requirements with options such as -FA (inner linear scale) and -L (long stroke)
Enhances testing efficiency and safety with option -CN (I/O for external signals), allowing for communication for interlock and starting operation, etc.
* Requires certain models of force gauge and optional cable
| Japan Model | MX2-500N | MX2-1000N | MX2-2500N | MX2-5000N |
| US Model | MX2-110 | MX2-275 | MX2-550 | MX2-1100 |
| Capacity | 500N (50kgf) | 1000N (100kgf) | 2500N (250kgf) | 5000N (500kgf) |
| Test speed | Digital 10 to 300mm/min [10 – 20mm/min: by 0.5mm/min] [20 – 100mm/min: by 5mm/min] [100 – 300mm/min: by 10mm/min] |
Digital 0.5 to 300mm/min [0.5 – 20mm/min: by 0.5mm/min] [20 – 100mm/min: by 5mm/min] [100 – 300mm/min: by 10mm/min] |

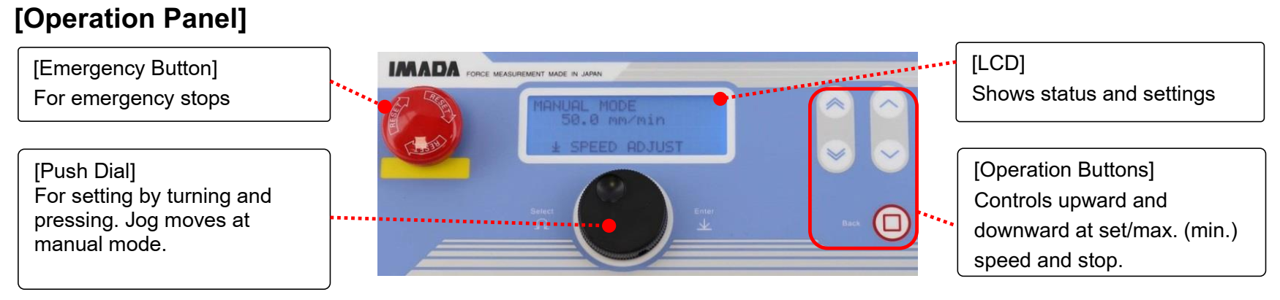

||
| Max. height of a sample (*1) | Approx. 235mm | Approx. 300mm | Approx. 320mm | Approx. 380mm |
| Rigidity | Standard models] less than 0.5mm, | |||
| [Long stroke (optional)] less than 1.0mm | [extended column (optional)] less than 1.0mm |
|||
| Stroke Limit | Controllable with upper and lower knob | |||
| Measuring Modes | Manual / Jog / Cycle mode | |||
| Functions | Counter (number of tests to repeat): Max. 65535 times Timer (pausing time): Up to 99 min 59 sec 9 (by 0.1 sec) |
|||
| Control | Emergency stop, force control (*2), overload prevention (*2, *3) | |||
| Operating temperature humidity | 0 to +40 degree Celsius 35 to 70% (avoid condensation) |
|||
| Voltage | AC100 to 240V, 50/60Hz (Select from 100, 120 and 230V. Accessories are provided accordingly.) | |||
| Power Consumption | 50W | 150W | ||
| Weight | Approx. 18kg | Approx. 19kg | Approx. 26kg | Approx. 51kg |
| Accessories | Operation manual, power cable, spare fuse, tools | Operation manual, power cable, spare fuse, tools, carrying handle, yellow cap |
||
| GF-1 (Grip mounting adaptor) | GF-2 (Grip mounting adaptor), Mounting plate for high capacity force gauge |
GF-2 (Grip mounting adaptor), Mounting plate for standard force gauge | ||
| Available Options *4*5*6 |
-L: Extended stroke by 200mm -2L: Extended stroke by 400mm (*7) -CN: External signal input -S: Length scale -FA: Inbuilt linear scale -V45: Speed 1.5 to 45mm/min -V90: Speed 3 to 90mm/min -V450: Speed 15 to 450mm/min -V600: Speed 20 to 600mm/min -V900: Speed 30 to 900mm/min |
-L: Extended stroke by 300mm -CN: External signal input -S: Length scale -FA: Inbuilt linear scale -V75: Speed 2.5 to 75mm/min -V150: Speed 5 to 150mm/min -V750: Speed 25 to 750mm/min -V1000: Speed 35 to 1000mm/min |
-L: Extended stroke by 300mm -CN: External signal input -S: Length scale -FA: Inbuilt linear scale -V75: Speed 2.5 to 75mm/min -V150: Speed 5 to 150mm/min |
-EXT: Extended column by 200mm (*8) -CN: External signal input -S: Length scale -FA: Inbuilt linear scale |
| Mountable Force Gauge *9 |
Mechanical Force Gauge: FB, PS, PSM series Digital Force Gauge: DST, DSV, ZTS, ZTA series (up to 1000N) Load cell: DPU series (up to 500N *10) |
|||
| – | Mechanical Force Gauge: PSH series Digital Force Gauge: ZTS, ZTA series (Over 2500N) |
|||
*1 Max. sample height refers to the distance between the table and the tip of force gauge measuring shaft when the head is at the top. (MX2-500N/MX2-1000N: up to 1000N model of ZTS/ZTA series, MX2-2500N/MX2-5000N: With over 2500N model of ZTS/ZTA series is mounted.)
*2 ZTS/ZTA series force gauge and optional cable CB-528 are required.
*3 It does not guarantee complete protection against overloading.
*4 Add the option code after the model name to complete the model with options. e.g. When adding long stroke option to MX2-500N … Model: MX2-500N-L
*5 Capacity is reduced as below by some speed change options. MX2-500N: -V600 capacity 250N, –V900 capacity 150N MX2-1000N:-V750 capacity 500N, –V1000 capacity 250N
*6 Amplifier such as ZTA and FA Plus2 (sold separately) or software are required to record measuring value of linear scale.
*7 Additional charge for wooden packing (Japan domestic shipping) or LVL wooden packing (oversea shipping) are required for shipping.
*8 The stroke does not extend. It extends the column of test stand and max. sample height is approx. 580mm.
*9 Ensure to use within the capacity of force gauge and test stand regardless of the mountable models.
*10 Mounting block (sold separately) is required to mount over 1000N range of DPU to MX2-1000N/MX2-2500N/MX2-5000N
Contact us today to inquire about the MX2 Series Standard Type Vertical Motorized Test Stand.
