Hydraulic Universal Testing Machine + Steel Tensile and Compression Tester + Flexural and Compression Tester

Hydraulic Universal Testing Machine, compared with a ball screw type electric mechanical UTM, is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. Therefore it is very suitable for making test to different metal and nometal materials under high toughness and hardness against extreme big loading force.

This machine is made based on the national spring tensile and compression tester standards of technical requirement, professional design of automatic control and data acquisition system, realized the data acquisition and control process full digital adjustment Mainly used to tension spring,compression spring,saucer reed,tower spring,leaf spring,clip spring,flat spring,composite spring,gas spring,mould spring,deformed spring and other precision spring tensile,compression, displacement and rigidity test and analysis.

Features

Application

For static and cuasi-static test (low frequency fatigue) for high loads in many types of tests. Specially indicated to switch test mode, thanks to its dual space design.

Double Test Space Frame

With high structural stiffness,4 columns and 2 screws with double testing space. The upper space is intended for tensile tests, and the lower for compression, shear, bending, folding, etc.

Types Of Specimens And Materials

The versatility of the machine allows the testing of specimens and materials such as round, flat, shouldered, folding, metals, polimers, composites, high and low temperatures.

Testing Modes

By using the right accessories, you can perform tensile, compression, bending, folding, punching, extrusion, peeling, shear test and Brinell Hardness (30 kN).

Host Feature

Rigid 4-column load frame construction providing superior axial and lateral stiffness and minimum maintenance, low reaction at specimen failure.

WAW / WEW / WE Series

Using the oil pressure sensor to test the force, oil-Hydraulic automatic clamps and multifunctional control software to meet ASTM, ISO and other testing standard.

Host Feature

Rigid 4-column load frame construction providing superior axial and lateral stiffness and minimum maintenance, low reaction at specimen failure.
With chrome plated columns for easy cleaning and longest life.
Lead screw dust cover: Prevent foreign objects and dust from entering the precision lead screw, and improve the durability of the screw and drive mechanism

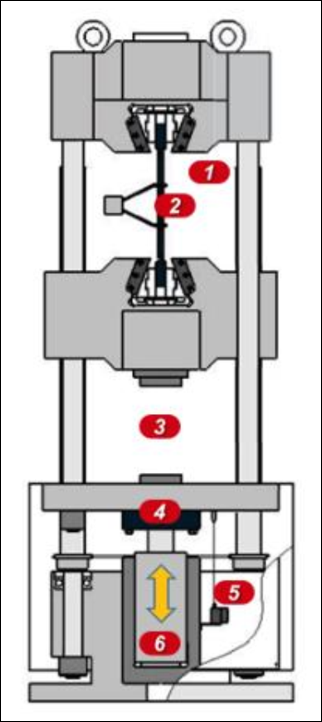

Space for Tension test
Extensometer Measure Elongation
Space for Compression/Bend/Shear/Flexure
Load Cell
Displacement Sensor
Oil Cylinder (Piston)

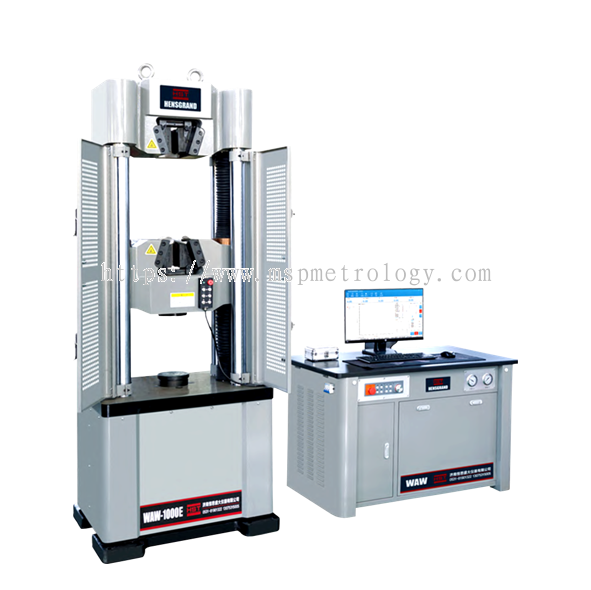

WAW/WEW/WE Hydraulic universal testing machine

Using the oil pressure sensor to test the force.
Adopt oil-Hydraulic automatic clamps which can be operated from separate control box.
Wedge tension jaw processed by advanced technology; increase the stiffness of crosshead under high and high intensify test .
Powerful multifunctional control software will provide more testing methods to meet ASTM, ISO and other testing standard.
Report guide will create your testing report in only free steps.
Programmable testing testing software makes LCF testing or cyclic testing become available.
Overload protection will secure operators.

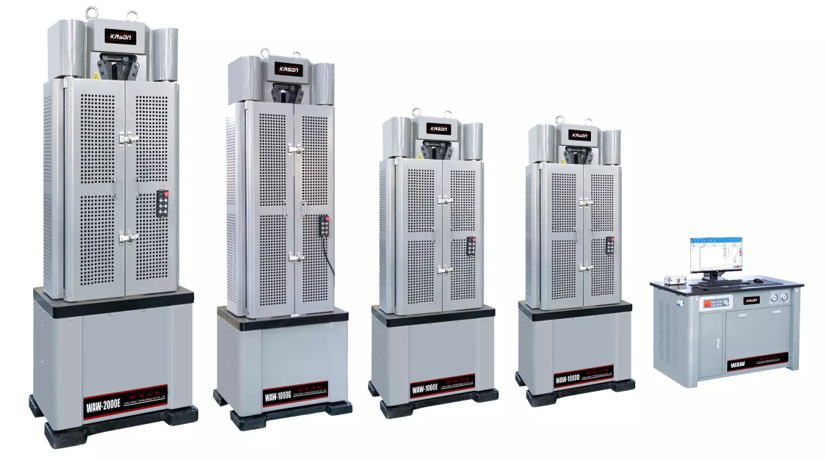

WAW Series

Computer controlled servo hydraulic universal testing machine. The space adjusting, & test processes could be controlled by the software and the test result could be transferred to the software in the computer for further analysis. It is the most advanced series in hydraulic universal testing machines.

WEW Series

Computer display manual control hydraulic universal testing machine. The space adjusting & force loading could be executed by manual control. The test result could also be transferred to the software for further analysis.

Full Specifications

Model	WAW-100D	WAW-200D WAW-300D	WAW-600D	WAW-1000D/E	WAW-1200D	WAW-2000D
Control Way	Constant stress uniform deformation constant displacement three closed loop control and program control dealing
Number of Screw drivers	4
Max. Load(KN)	100	200/300	600	1000	1200	2000
Load Accuracy	≤± 1%/ ≤± 0.5%
Load Range	2%~100%FS
Load Resolution	1/300000
Deformation Measurement Range	2%~100%FS
Deformation Accuracy	≤±1%
Displacement Resolution	0.01mm
Testing speeds (mm/min)	0.1~118	0.1~123	0.1~123	0.1~70	0.1~70	0.1~70
Adjustable crosshea speed (mm/min)	450	450	350	350	320	320
Displacement Error			≤±0.5%
Max. Piston Stroke (mm)	200	200	200	200/250	250	250
Max. Tension Test Space (mm)	780	780	900	950/980	930	1250
Max. Compression Test Space	550	550	650	700	640	850
Column Effective Spacing (mm)	485	485	500	560/580	610	800
Clamping Method	Hydaulic Automatic Clamp
Flat Specimen Clamping Width (mm)	80 x 80	80 x 80	90 x 90	100 x 100	120 x 110	150 x 120
Compression Plate Size	Φ 160mm
Bending Roller Distance	450mm
Width of Bending Rollers	120mm
Power Supply	3-phase, AC380V, 50Hz (Can Be Customized)

Load Measurement Accuracy:

±0.5% of reading to 1/50 of load weighing system capacity meets or exceeds the requirements of the following standards: ISO 7500-1, EN 10002-2, ASTM E4, JIS B7721.

Strain Measurement Accuracy:

±0.5% of reading to 1/50 of full scale with most ASTM E83 class B or ISO 9513 class 0.5 extensometers meets or exceeds ASTM E83, ISO 9513, and EN 10002-4.

Speed Accuracy:

Set speed<10% Max. Speed: ±1% Set speed “10% Max. speed:±0.5%

Position measurement accuracy:

±0.5 of reading or 0.001 mm, whichever is greater

Power supply:

Standard optional voltages 220/240VAC, 50-60 Hz, Power must be free of spikes and surges exceeding 10% of the nominal voltage.

Operating Temperature:

0 to +38°C (+32 to +100°F)

Humidity Range:

10% to 90% non-ondensing,

GLW-1000G Strand universal testing machine :Test Space (1350mm)
