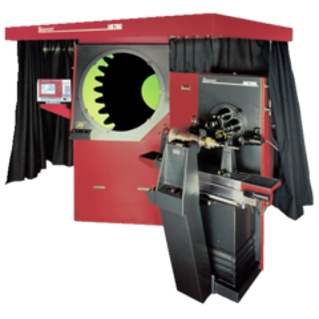

The HS750 floor standing horizontal optical comparator has all the same features as the HF750, except it has the screen position set to the side of the workstage area which allows close, comfortable and unrestricted access to the viewing and control area.
The HS750 floor standing horizontal optical comparator has all the same features as the HF750, except it has the screen position set to the side of the workstage area which allows close, comfortable and unrestricted access to the viewing and control area.

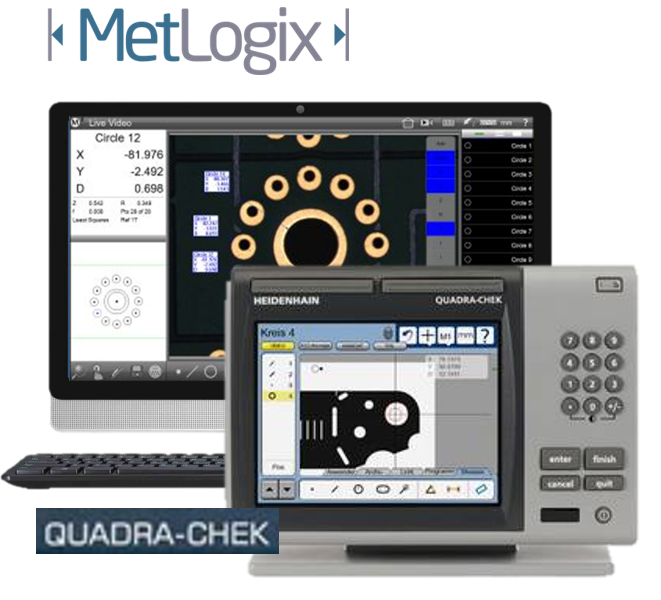

HS750 available with choice of the new MetLogix™ M2 on PC or M3 on all-in-one touch screen PC. For Quadra-Chek®, the available software are QC221 and QC5200.
All metal construction
Large 30″(750mm)diameter screen provides extensive field of view giving the user more component detail on the screen
Side-bed design gives the operator uninterrupted access to the screen and working area
Motorized X and Y axes standard
Linear encoder(glass scale) on both X and Y axes
Projection lens turret with three lens capacity(lenses not included)
Turret mounted condenser system with yellow/ green filter and provision to mount further accessories
Halogen profile and surface illumination
Digital protractor for accurate angle measurements(1′ resolution)via Q-axis
Available with MetLogix M2 or MetLogix M3 PC-based touch screen measuring software or Quadra-Chek digital readout system
Full canopy and curtains included
| Item | Specification |
|---|---|
| System Type | Floor Standing |
| Part View Orientation | Horizontal |
| Side Bed Version | Standard |
| Screen Diameter (in) | 30″ |
| Screen Diameter (mm) | 750 |
| X – Y Measuring Range (in) | 12″ (16″ Optional) x 8″ |
| X – Y Measuring Range (mm) | 300 (400 Optional) x 200 |
| Linear Glass Scale Encoder on X & Y Axis | Standard |
| Motorized X-Y Axis | Standard |
| CNC Control | Optional |
| Focus Range (in) | 3″ |
| Focus Range (mm) | 75 |
| Work Stage (in) | 25″ x 9″ |
| Work Stage (mm) | 630 x 230 |
| Load Capacity with Negligible Deflection (lbs) | 110 |
| Load Capacity Maximum (lbs) | 330 |
| Angular Measurement Resolution | 1 Minute |
| Profile Illumination | Standard |
| Surface Illumination | Standard |
| Quick Change Lens Mount (Lenses Not Included) | 4 Lens Turret |
| Collimating Condenser with Yellow/Green Filter | Standard |
| Control System / Software | QC200/5200, M2, M3 |
| Display (Control System Dependent) | QC DRO, 15.6″ or 21″ Touchscreen PC or 24″ Monitor |
| Optical Edge Detection | Optional |
| Digital Video Camera System | Optional |
| Video Edge Detection (only with Digital Video Camera) | Optional |
| Optical and Video Edge Detection (only with Camera) | M3 Option Only |
| MetLogix DC (FOV) Software for Digital Video Camera | Optional |
| Lenses (One Required, Not Included) | 10X, 20X, 25X, 31.25X, 50X, 100X |
| Iris Diaphragm | Optional |
| Precision Rotary Vise | Optional |
| Vee Block on Rotary Base | Optional |
| Precision Fixed Vise | Optional |
| Precision Centers & Vees | Optional |
| Glass Plate Work Holder | Optional |
| Canopy and Curtains | Standard |
Choice of fixed magnification lenses including 10x, 20x, 25x, 31.25x, 50x, and 100x.
OV2 video zoom lens
TOV2 video lens assembly with choice of 0.16x, 0.3x, or 0.5x fixed magnification lenses
Automatics optical edge detection
Automatics video edge detection (available with OV2 or TOV2 video cameras)
Fully automatic CNC controls
Optional 5x fixed lens system available by special order
Extended travel stage 20″ x 8″(500 x 200 mm) with 32″ x 8″(800 x 200 mm) top plate
Swing -away lamp house
Extensive line of accessories
| Features | MetLogix | Quadra-Chek | ||
|---|---|---|---|---|
| M2 | M3 | QC221 | QC5200 | |
| Mounted to comparator arm | x | x | x | |
| Color graphics | x | x | x | |
| Touch screen operation | x | x | ||
| MS Windows operating system | x | x | ||
| X-Y-Q axis digital readout | x | x | x | x |
| 2D geometry software with skew | x | x | x | x |
| Optical edge detection option | x | x | x | x |
| Video edge detection option | x | x | ||
| CAD file import and export option | x | |||
| CNC drive option | x | x | x | x |
| Software developer | MetLogix | MetLogix | Metronics/Heidenhain | Metronics/Heidenhain |
Contact us today to inquire about the HS750 Floor Standing Horizontal Optical Comparator and enhance your optical comparison measurement capabilities.
