Description

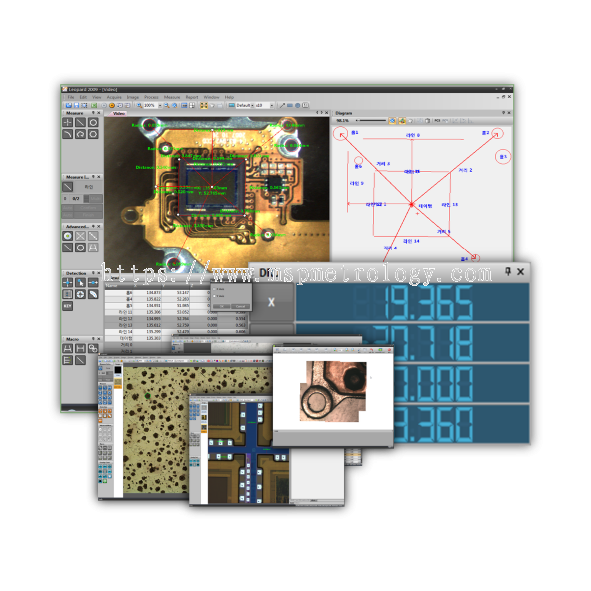

Leopard m Series

Non-contact optical precise measurement software with live measurement tools, advanced measurement functions, DRO interface and diagram alignment support.

Features

Non-contact optical precise measurement.
Interfacing with various devices using the stage equipped with camera.
Supports various functions to allow faster and more accurate measurement by using automated shape detection function.
User-friendly interface to perform the task easier and faster.
Supports stage-based inspection devices such as measuring microscope, projector and X-ray equipment.
Compatible with brand include:

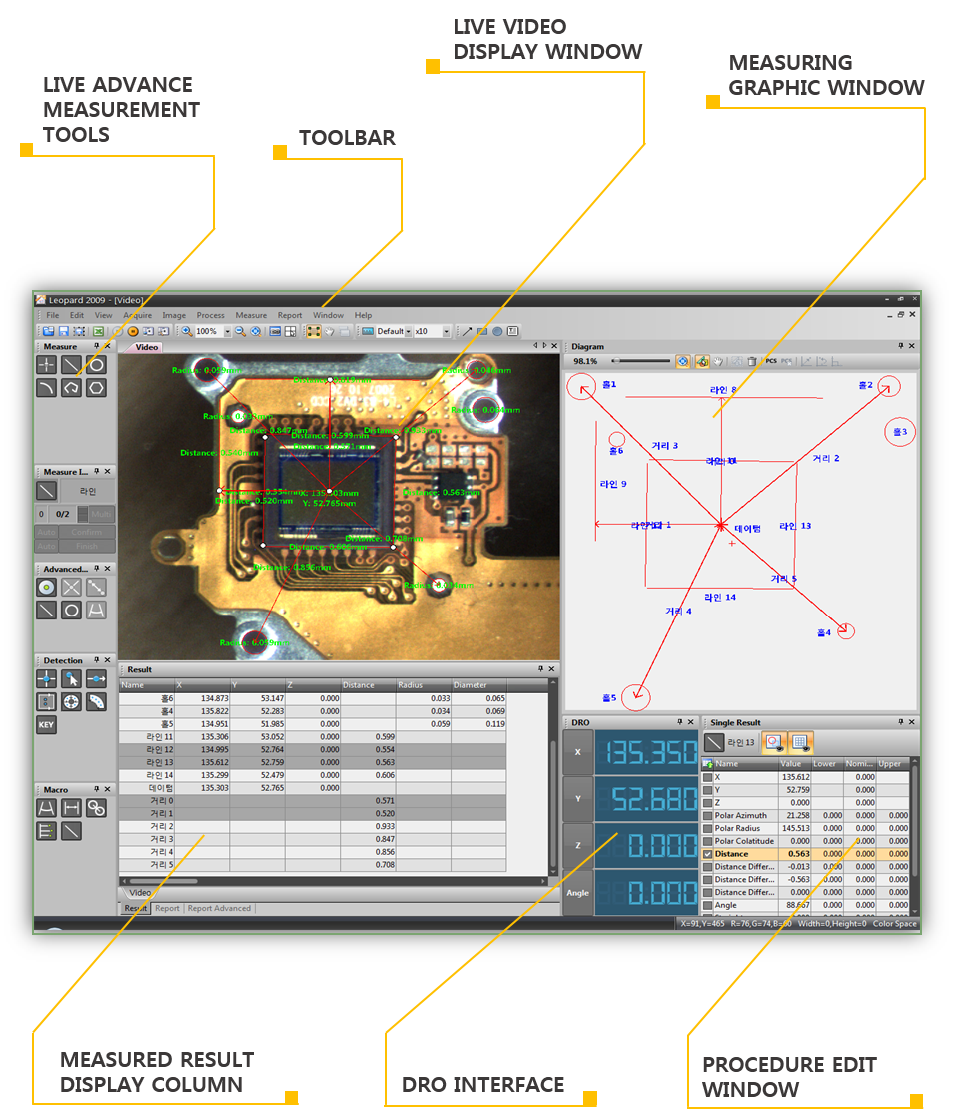

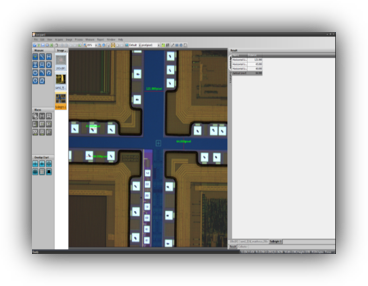

Basic/Live Measurement Tools

Live preview image on monitor to perform analysis without having to capture the image in-advance

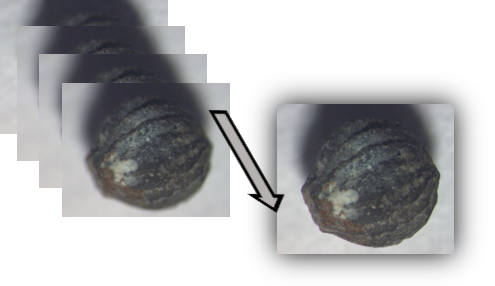

Multi Focus

Provides extended focus capability to overcome limited depth of focus in high magnification microscopes.

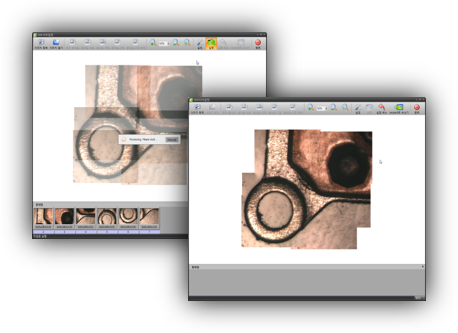

Manual Tiling

Large size (Field of View) specimen can be captured separately and combined to form one complete image.

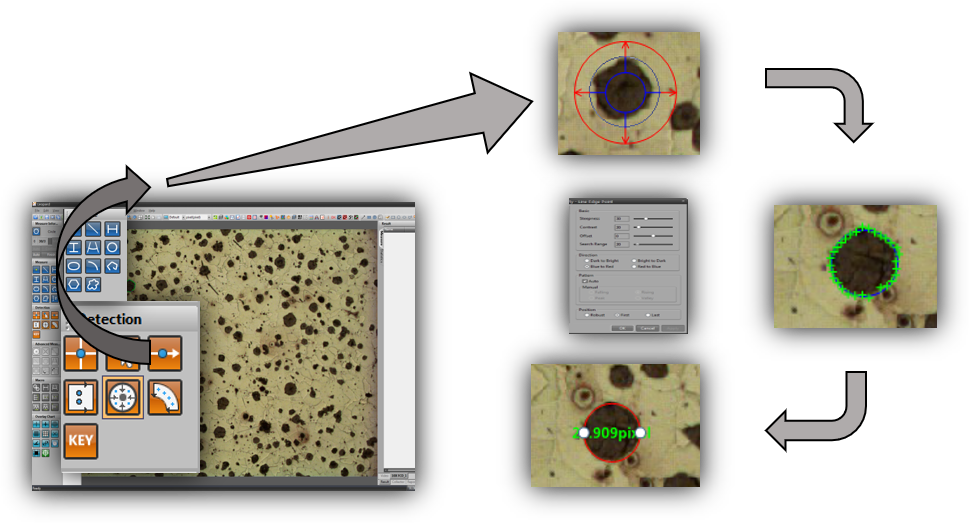

Auto Edge Detection

Automatically detected edges of various kind of shape of an object/sample to allow automatic measurement of the sample.

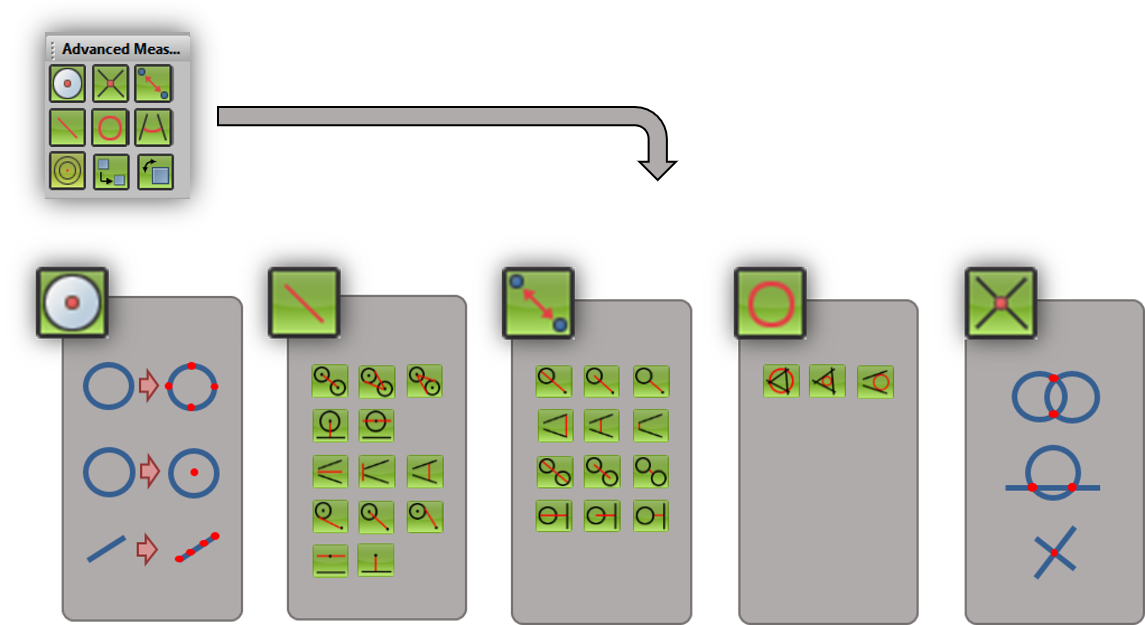

Advance Measurement Tool

Tool for additional measurement

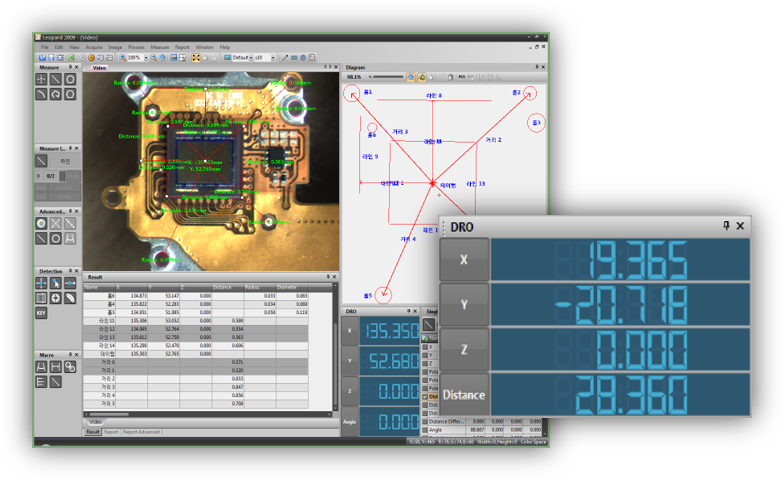

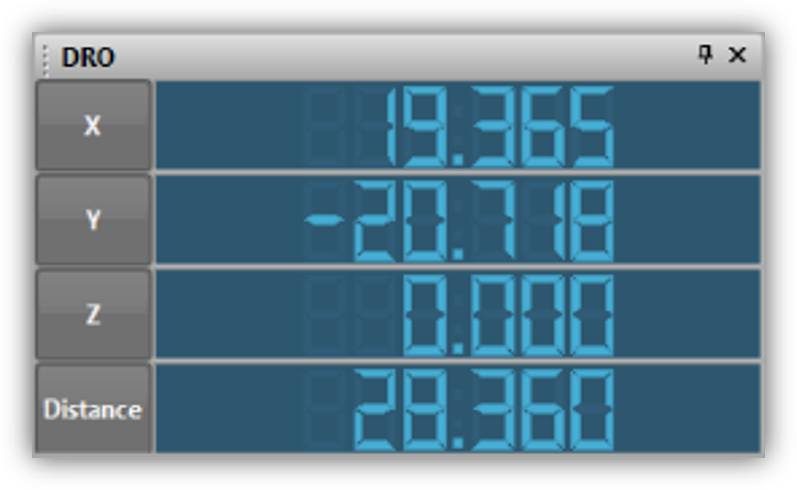

DRO Interface

Leopard m Series communicate with Measuring microscope such as OLYMPUS STM7, NIKON MM Series, Mitutoyo MF Series and ETC.
Using DRO increase measurement accuracy and measurement area
Various measurement tool supported ( Cross Hair, Click point, Auto edge detection)

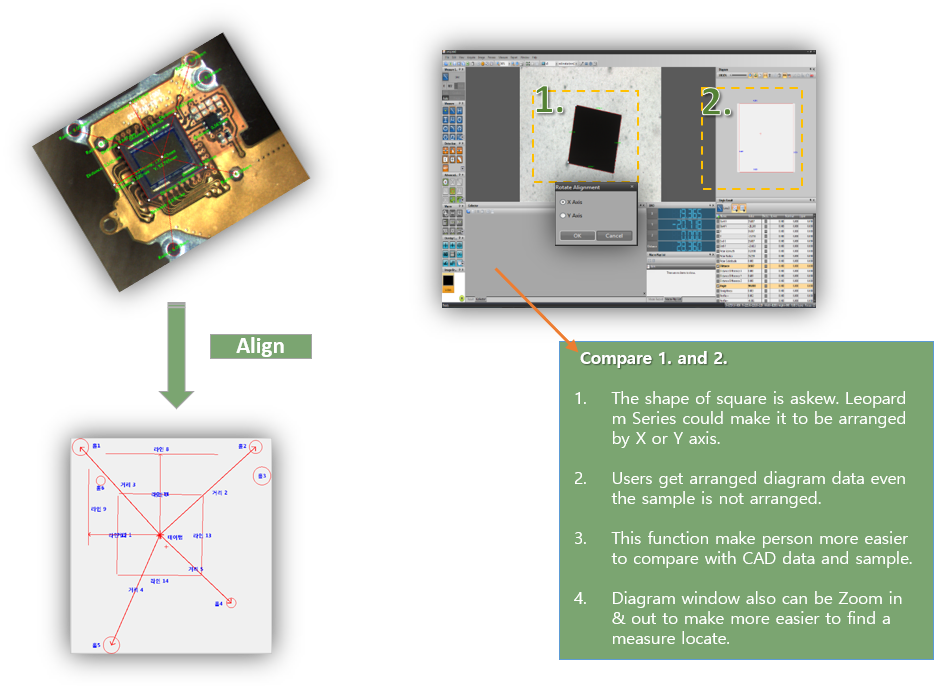

Diagram Alignment

Leopard m Series can align a sample on Diagram
Align a Diagram even the sample is tilted
Measurement also can be on the Diagram
Shift on the Diagram is available (offset)

Full Specifications

Model			mS	mX
FUNCTION	Capture	Camera Control	O	O
		TWAIN, WDM	O	O
		Multi Capture	O	O
		Time Lapse		O
	Processing	Basic Filter		O
	Processing	Extended Filter		O
	Image Synthesis	Manual Tiling		O
		Manual Multi-Focus		O
		Extended Tiling		O
		Extended Multi-Focus		O
		Auto Edge Detection		O
	Measurement	Basic Measurement	O	O
		Extended Measurement Tools	O	O
		Alignment Tools	O	O
		Automatic Calibration	O	O
		Still Image Measurement	O	O
	Others	PCS/MCS	O	O
		Diagram Window	O	O
		Macros	O	O
		Multi-monitor	O	O
		3D Image		O
	Report	Excel Reporting System	O	O
	Report	Report Manager	O	O

Contact us today to inquire about the Leopard m Series and enhance your measurement capabilities.
