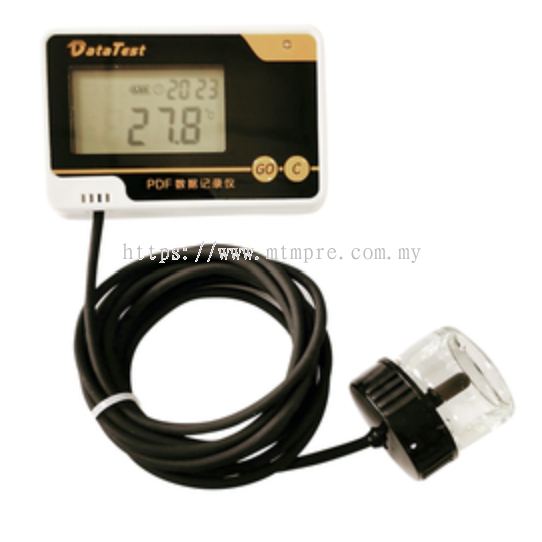

DATATEST DT-T11BPDF Thermometer for Reagent Refrigerator: Top Choice in Selangor, Malaysia, Kuala Lumpur (KL), Puchong MTM Precision Sdn Bhd

Description

Brief introduction:

The temperature probe of the reagent refrigerator-specific temperature instrument is designed to simulate reagent liquids, specifically addressing the issue of overheating when the refrigerator door is open and providing accurate monitoring of reagent temperature changes. The integrated USB data cable design with the housing offers: ① Convenient data export; no need to find a separate USB data cable, data can be directly exported in PDF and EXCEL formats using a laptop. ② Software operation allows the instrument to automatically connect, download, and save data, making operation convenient.

Details:

The temperature probe of the reagent refrigerator-specific temperature instrument is a probe that simulates the reagent liquid, which specifically solves the problem of overheating when the refrigerator door is opened, and also addresses the issue of accurately monitoring changes in reagent temperature.

I. Product Features: 1. This product is simple and compact; USB interface, economical and reusable, data is not lost even when power is off. 2. Main functions: It can automatically track and record the environmental temperature changes in cold storage cabinets, refrigerators, incubators, experimental equipment, incubators, constant temperature boxes, refrigerated transport vehicles, containers, etc., and display the clock and temperature values online. It also features an LCD speaker display/LED alarm light flashing/buzzer alarm for temperature exceeding limits. 3. Integrated USB data cable design with the recorder housing : ① Convenient data export; no need to find a separate USB data cable; data in PDF and EXCEL formats can be directly exported using a laptop mobile connection , including MKT values .

② The software automatically connects, downloads, and saves data, making operation convenient;
③ The unique USB power supply design allows for normal data download even when the internal battery is dead;
4. Long storage time: For example, data recorded every 15 minutes can be stored for up to 18 months (standard configuration);
5. LCD display, LED light alarm, and buzzer alarm modes: flashing lights inside the device indicate whether the internal temperature environment is abnormal.
You can view the maximum and minimum values during use .
6. The entire circuit adopts low power consumption and is powered by a built-in disposable industrial lithium battery. For example, with a recording interval of minutes, the battery can work continuously for about one year in non-alarm mode.
7. The recorder adopts a waterproof design, with sealing rings and sealant at all connections. The waterproof IP rating reaches IP67, meaning that water will not penetrate the device even when it is completely immersed in water.
8. Multiple start-up modes are available, including immediate start, timed start, and manual start; its compact design also includes a manual start/stop function .

II . Technical Parameters:

Performance parameters	temperature
Measurement range	-30 ℃ ～50 ℃
accuracy	±0.5℃ (entire process)
resolution	0.1℃
Sensor type	** NTC (External Sensor), Probe Cable: 2 meters
Total Record Capacity	50,000 data entries
Recording interval	*The shortest recording interval is 1 second, and the sampling recording interval can be set arbitrarily in seconds, minutes, hours, or days.
Display refresh	Real-time /Synchronous
Startup method	Start Now / Scheduled Start / Manual Start
Stop method	Until full / First-In-First-Out / Number of uses stopped / Timer ends
Alarm methods	Add "LCD display prompts," "LED flashing lights," and "buzzer alarm" to the display.
Power supply method	3.6V industrial lithium battery, lifespan approximately one year.
Recorder software	Simplified Chinese, Traditional Chinese, and English versions
communication	All-in-one USB data cable
Support System	Windows 7 and later versions
Size	83 mm (length ) × 52 mm (width) × 22 mm (height)
Waterproof rating	IP67 (meaning that the instrument or equipment can be completely submerged in water for a certain period of time without water entering it).
Work environment	-20℃～70℃ (whole unit)
LCD display	45mm×25mm

III. Attachments : One each of the following:
a reagent refrigerator-specific temperature gauge (including sensor and lithium battery), recorder software, and user manual.
