Specifications
- Accuracy: 0.015mm
- Operating Temperature: -1040°C
- Resolution: 0.020mm
Description

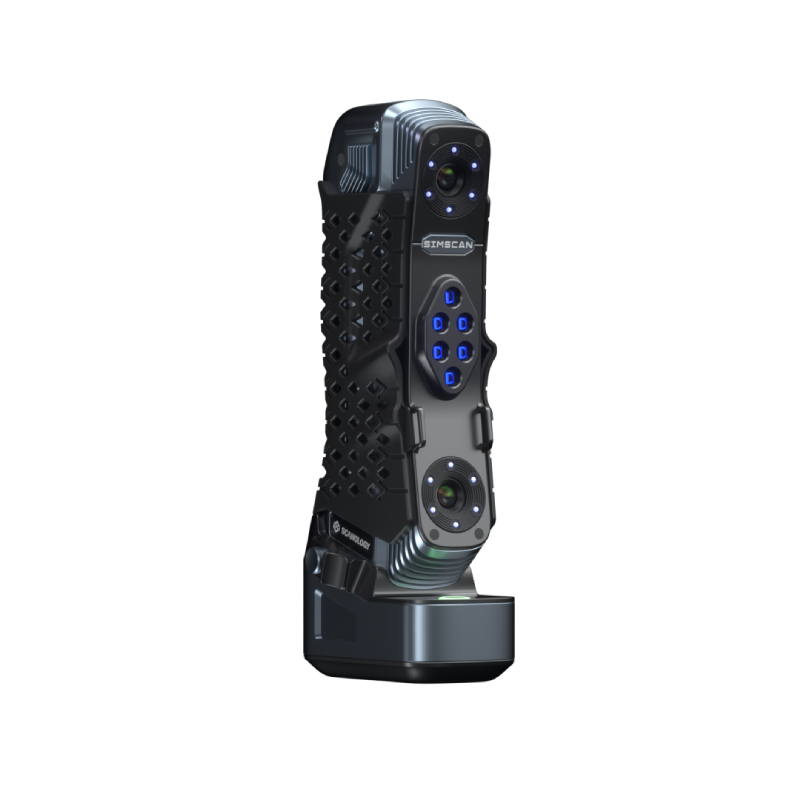

At Obsnap Instruments, we are committed to bringing the latest in metrology technology to our partners in Penang’s thriving industrial sector. We are excited to introduce the SIMSCAN-S Gen2—the next generation of handheld 3D scanning that combines ultimate portability with industrial-grade accuracy.
Compact Power, Unmatched Accuracy
Designed for engineers and quality control professionals who refuse to compromise, the SIMSCAN-S Gen2 fits in the palm of your hand yet delivers class-leading precision. Whether you are working in aerospace, automotive, or precision machining, this device is built to handle your most demanding GD&T-critical measurements.
Key Highlights:
-
Super High Accuracy: Achieve measurement accuracy of up to 0.015 mm, ensuring that every critical surface—from functional components to assembly-defining geometries—is captured with absolute confidence.
-
True Wireless Freedom: Weighing just 560g and featuring a magnesium-alloy housing, the SIMSCAN-S Gen2 allows you to scan anywhere. With Wi-Fi 6 wireless data transfer and an integrated battery base, you are no longer tethered to a workstation.
-
Ultra-Fast Data Acquisition: With 108 quad-crossed blue laser lines, it captures data at a staggering rate of 8,100,000 measurements/s, significantly reducing your inspection cycle time.
-
Scan Where Others Can’t: Thanks to its innovative short-baseline camera design, this scanner excels at reaching deep holes, narrow slots, and complex channels where other scanners fail.
-
ISO-Compliant Results: Compliant with the ISO 10360 standard, you can trust your data for high-stakes quality decisions and reverse engineering projects.
.png)

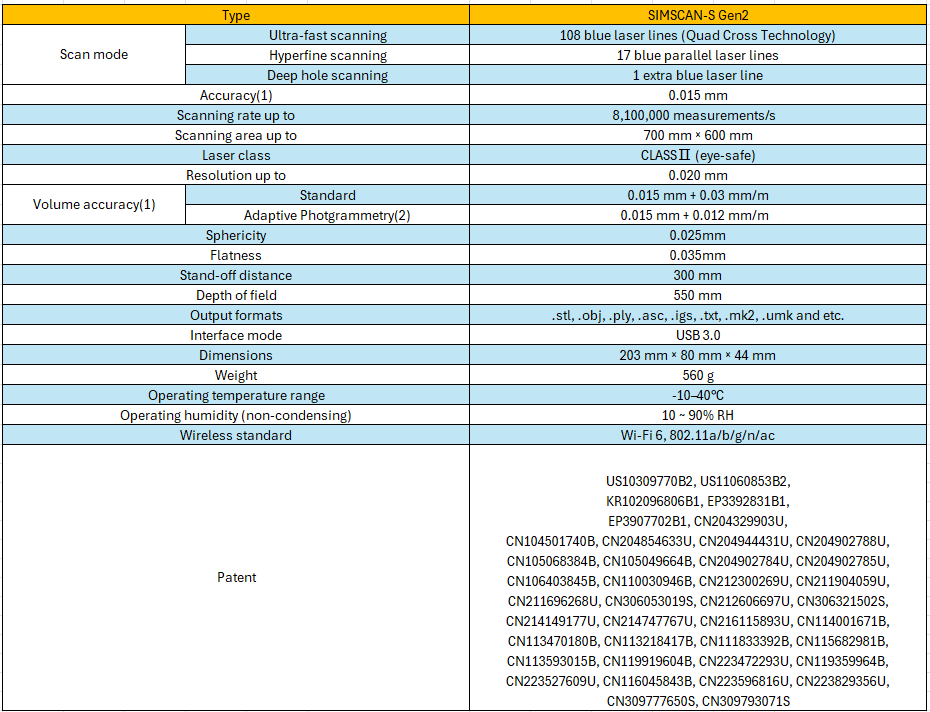

Technical Specification
.png)
(1) ISO 17025 accredited: Performance is evaluated based on ISO 10360-13 standard, VDI/VDE 2634 Part 3 and JJF1951 specification.
(2) Paired with high-precision scale bar.
