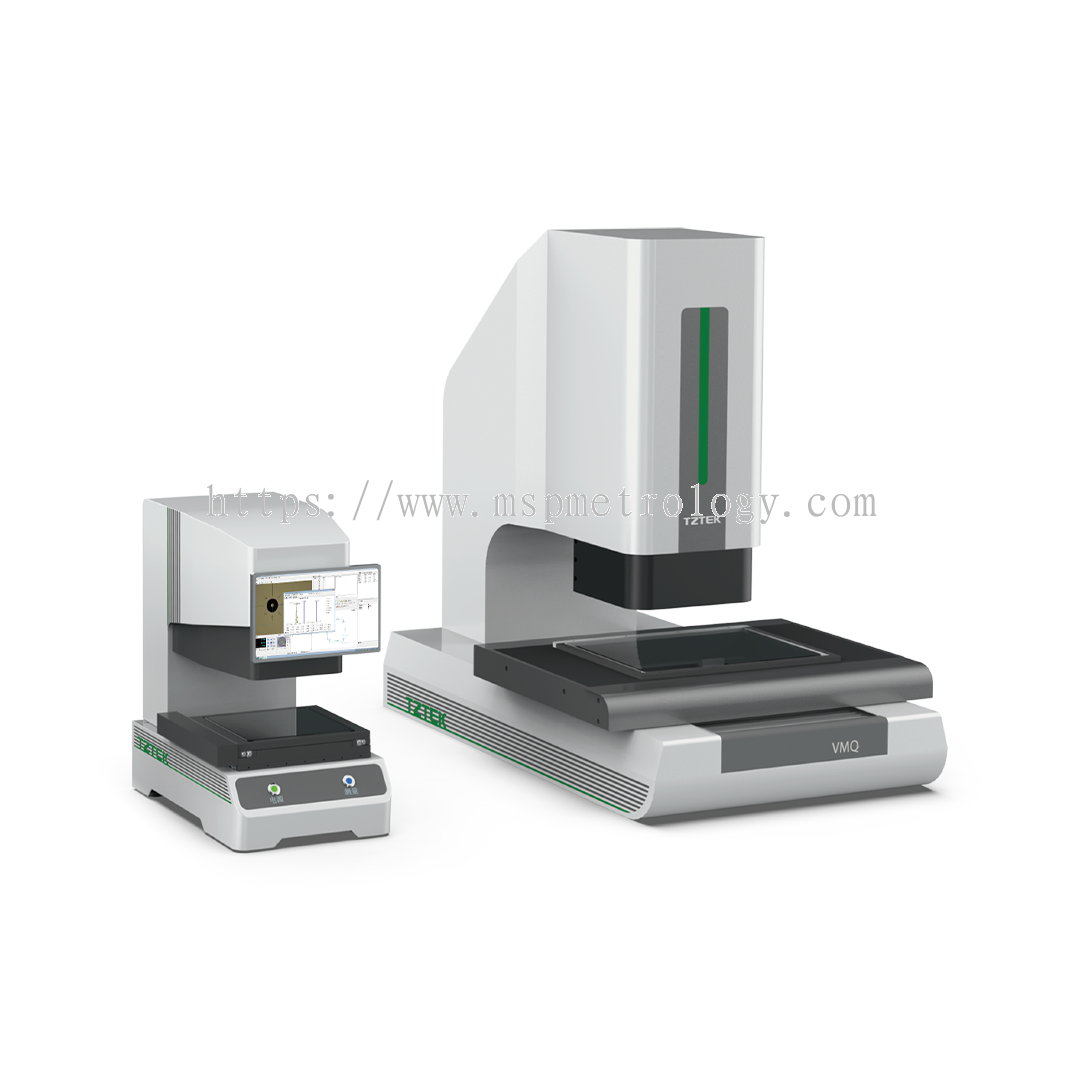

VMQ Quick Video Measuring Machine combines multiple technological achievements in the field of image detection, integrating advanced quick measuring concepts, and integrating wide field of view, large depth of field, and high accuracy.
VMQ Quick Video Measuring Machine combines multiple technological achievements in the field of image detection, integrating advanced quick measuring concepts, and integrating wide field of view, large depth of field, and high accuracy.
| Model | VMQ222 | VMQ322 | VMQ432 | VMQ-D432 | |
|---|---|---|---|---|---|
| Travel (mm) | 150 x 120 x 75 | 300 x 200 x 200 | 400 x 300 x 200 | 400 x 300 x 200 | |
| External Dimensions (mm) | 345 x 534 x 605 | 740 x 1040 x 1792 | 900 x 1280 x 1792 | 900 x 1240 x 1739 | |
| Mass (kg) | 45 | 400 | 450 | 475 | |
| Max. Stage Loading (kg) | 5 | 25 | 25 | ||
| Opticsl[1] | Dual telecentric lens with double FOVs | Lens1: high resolution automatic zoom lens Lens2: dual telecentric lens |
|||
| Measuring range (mm) | 200 x 200/125 x 125 | 300 x 200 | 400 x 300 | 400 x 300 | |
| Accuracy[2] (µm) | FOV(mm) | ф100 | 82×55 | Lens1: E2=(1.9+L/200) Ez=(2.8+L/200) Lens2: E2=(4.0+L/200) |
|
| Stage unmoving | 2.8 | ||||
| Stage moving[2] | E2=(4.0+L/200) | ||||
| FOV (mm) | 25X25 | 20X14 | |||
| Stage unmoving | 1.5 | ||||
| Stage moving[2] | E2=(2.5+L/200) | ||||
| FOV (mm)[1] | 8 x 5 | ||||
| Stage unmoving | 0.7 | ||||
| Stage moving | E2=(2.0+L/200) | ||||
| Illumination | Profile | Green LED telecentric | Green LED telecentric+ white LED cold brightness | ||
| Surface | Programmable 2 rings 4 segments LED cold light, each segment independently controlled | Programmable 6 rings 8 segments LED cold light, each segment independently controlled | |||
| Coaxial | Optional, LED cold light, 256 level adjustable brightness | LED cold light, 256 level adjustable brightness | |||
| Camera | High definition black &white industrial digital camera | High definition industrial digital camera | |||
| Drive system | 4-axis CNC servo control system | 5-axis CNC servo control system | |||
| Speed (mm/s) | XY | 200 | 500 | ||
| Z | 100 | 100 | |||
| Guide | High precise cross roller guide | High precise linear guide | |||
| Scale | 0.1 µm | 0.5 µm | |||
| The Min Unit (µm) | 0.1 | ||||
| Image Processing | Advanced TZTEK image processing method: 256 gray level, 201: sub- pixel processing technology | ||||
| Software | Vispec (VMQ Version) | ||||
| Environment | Temperature20°C±2°C,Humidity 30-80% | ||||
| Vibration<0.002 g, below 15 Hz | |||||
| Power | 200-240 vac, 50/60 Hz, 1 phase, 700 W | ||||
[1] Optional duel telecentric lens with triple FOVs, duel telecentric magnification 16-66x, triple FOVs magnification16-165x.
[2] L is the measured length in mm, determined by TZTEKs’ inspection method.
