MaxVision Super Large Travel Automatic Vision Measuring Machine

MaxVision is a super large travel automatic vision measuring machine that can reach up to 1700 x 1200 X/Y-axis travel. It is widely used in industrial that produce larger components and parts.

Features

The Special Features

Moving gantry structure, measurement workpiece is fixed
Four-axis CNC fully auto close loop control, auto measurement;
“00” grade “JINANQING”marble base and pillar, stable and reliable;
Imported open type linear scale, resolution is 0.001mm, high accuracy, great stability;
Imported P grade linear guide, precision grinding ball screw and AC servo motor, ensure accuracy stability of system position;
Imported high definition color industry camera, ensure clear observation and stable measurement requirement;
6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;
Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;
With proprietary fully auto measuring software iMeasuring 4.1, powerful function, simple operation;
Optional laser probe, it can also be customized according to customer request;
Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.

High Accuracy

Imported open type linear scale with resolution of 0.1µm for higher accuracy and greater stability

Imported P Grade Linear Guide

Imported P grade linear guide, precision grinding ball screw and AC servo motor to ensure accuracy stability of system position

6.5x Continue Auto Zoom Lens

Precision auto zoom, only need to make pixel calibration one time.

High Accuracy & Stable System Position

Imported open type linear scale with resolution of 0.1µm for higher accuracy and greater stability. Imported P grade linear guide, precision grinding ball screw and AC servo motor to ensure accuracy stability of system position. 6.5x continue auto zoom lens, precision auto zoom, only need to make pixel calibration one time.

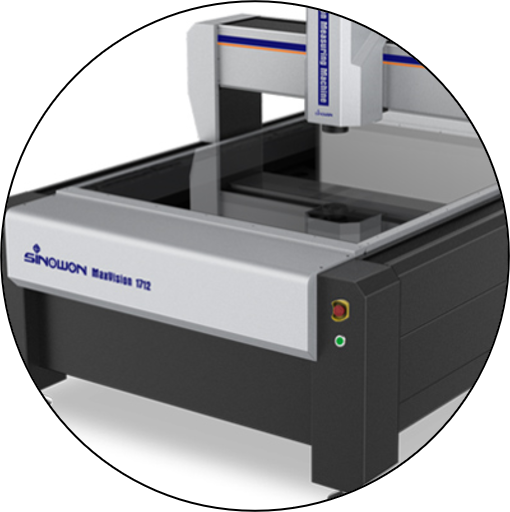

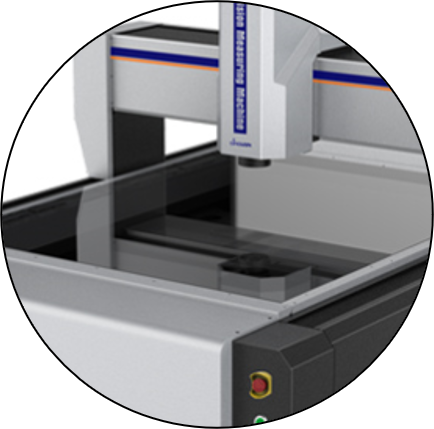

SUPER LARGE MEASURING MACHINE

MaxVision is a super large travel automatic vision measuring machine that can reach up to 1700 x 1200 X/Y-axis travel. It is widely used in industrial that produce larger components and parts.

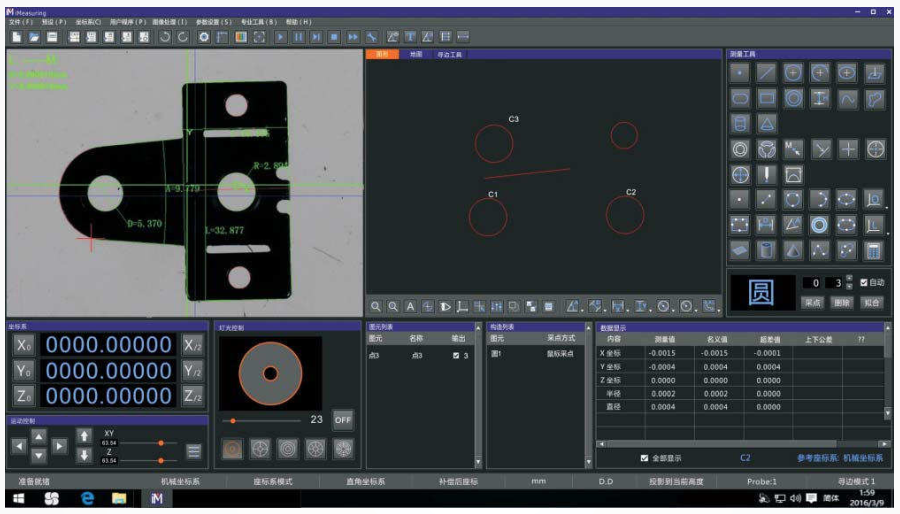

SINOWON iMEASURING 4.1

Professional multisensory 3D measuring software which is friendly operation, powerful function, high accuracy and stability, and simple maintenance that enhance the quality control situation.

Full Specifications

Product Name	Super Large Travel Automatic Vision Measuring Machine
Model	AutoVision 1008		AutoVision 1210		AutoVision 1512		AutoVision 1712
Code	526-210		526-220		526-230		526-240
X-Y axis Travel	1000 x 800 mm		1200 x 1000 mm		1500 x 1200 mm		1700 x 1200 mm
Z axis Travel	200 mm
X-Y-Z 3-axis Linear Scale(mm)	Imported open linear scale, resolution: 0.0001 mm
Guidance Mode	Imported P grade linear guide, double track double slider guide
Operation Mode	Joystick controller, mouse operation, automatic detection program
Measurement Accuracy	X-Y axis:≤4 + L/200µm
Measurement Accuracy	Z axis: ≤5+ L/200µm
Repeatibility	±5µm
Video System	High Definition 1/2″ color CCD camera, Image Navigation System
	6.5x automatic zoom lens
	Optical magnification: 0.7x – 4.5x, video magnification: 20x – 129x (21.5″ monitor)
Field-of-View(mm) (Diagonal* Horizontal* Vertical)	Lens magnification	0.7X	1X	2.0X	3.0X	4X	4.5x
Field-of-View(mm) (Diagonal* Horizontal* Vertical)	1/2″ CCD	11.43X9.14X6.86	8.00X6.40X4.80	4.00X3.20X2.40	2.67X2.13X1.60	2.00X1.60X1.20	1.78 x 1.42
	5-ring 8-division 0-255 grade continue adjustable
Software System	iMeasuring 4.1 Fully Auto Measuring Software
Working Environment	Temperature 20°C±2°C, humidity range <2°C/hr, humidity 30-80%, vibration<0.002g, <15Hz
Load Capacity	50kg

Contact us today to inquire about the MaxVision Super Large Travel Automatic Vision Measuring Machine and enhance your measurement capabilities.
