HVR100-FLIP

Available Displacement For Horizontal And Vertical

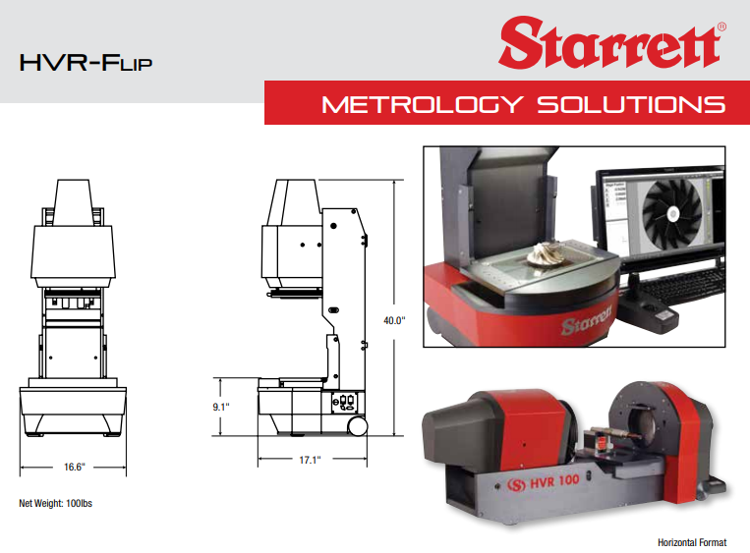

The HVR-Flip from Starrett is the latest in a line of video-based measurement systems. The HVR-Flip has the unique characteristic of being used in either a vertical or horizontal format offering tremendous versatility and value. Rapidly measure a single feature, an entire part, or multiple parts up to 3.65 x 3″ with the HVR-Flip’s large FOV. MetLogix™ M3 software allows for easy one-touch feature measurement and auto-detect part recognition. Features DXF import and export, graphic based “Part View” constructions and more. Optional software modules are available for profile fitting, wire insulation and thread measurement.

Features

FEATURES

• Rapidly measure parts up to 3.65 x 3″
• Working distance of 10″
• Measure a single feature, an entire part, or multiple parts
• MetLogix™ M3 software allows for easy one-touch feature measurement
• Auto-detect part recognition
• DXF Import – Electronic overlay for quick part comparison
• Export features to DXF
• Compare complex profiles with discreet data points and comparison to CAD
• Graphic based “Part View” constructions
• Geometric tolerancing
• Flexible report content and formatting
• Multi-language support
• Optional software modules:
  • Profile fitting
  • Wire insulation
  • Thread measurement
• System can be easily converted from a vertical format to a horizontal format measuring system
• Large FOV

Integrated with Powerful MetLogix Control System Software

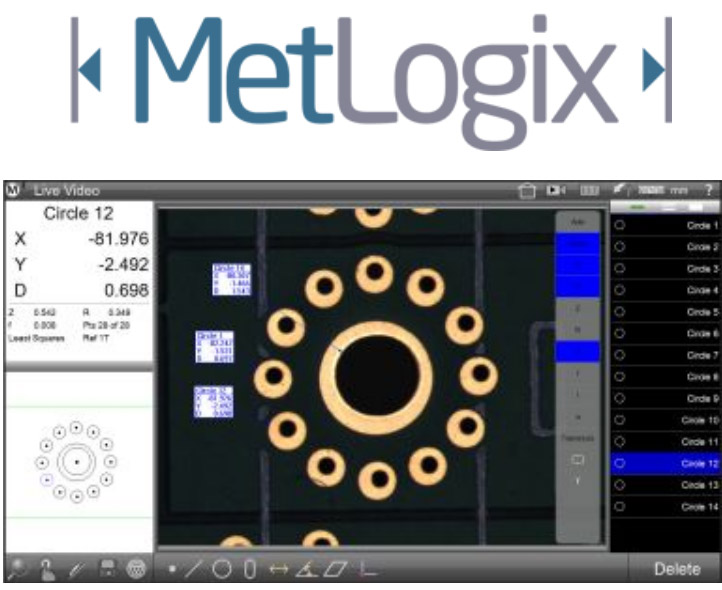

MetLogix™ M3 and optional DXF/FOV Best Fitting Software offer the best available technology for part comparison and measurement. Displayed on a 24″ touch-screen monitor, M3 software supports 3-axis measurements and 2D Geometrical constructs (such as points, lines, angles and rectangles).

Live video part images plus geometry image can be resized using pan and zoom, and measurements can be taken by simply tapping a feature on the screen. With the M3 DXF/FOV option pack, DXF CAD files can be imported over a network and be automatically compared to the actual part.

Contact us today to inquire about the HVR100-FLIP and enhance your video-based measurement capabilities.
