Two models available

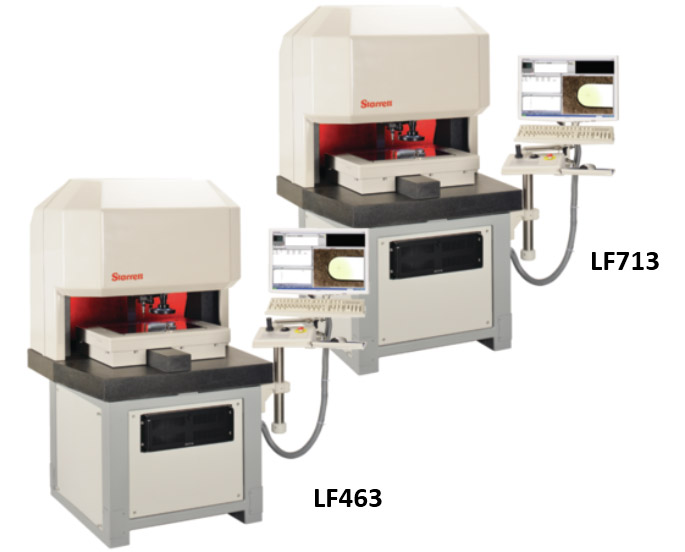

LFR series features two models available which are LF463 (X-Y-Z travel of 460mm x 305mm x 200mm) and LF713 (X-Y-X travel of 711mm x 610mm x 200mm).
LFR series features two models available which are LF463 (X-Y-Z travel of 460mm x 305mm x 200mm) and LF713 (X-Y-X travel of 711mm x 610mm x 200mm).
LFR series features two models available which are LF463 (X-Y-Z travel of 460mm x 305mm x 200mm) and LF713 (X-Y-X travel of 711mm x 610mm x 200mm).

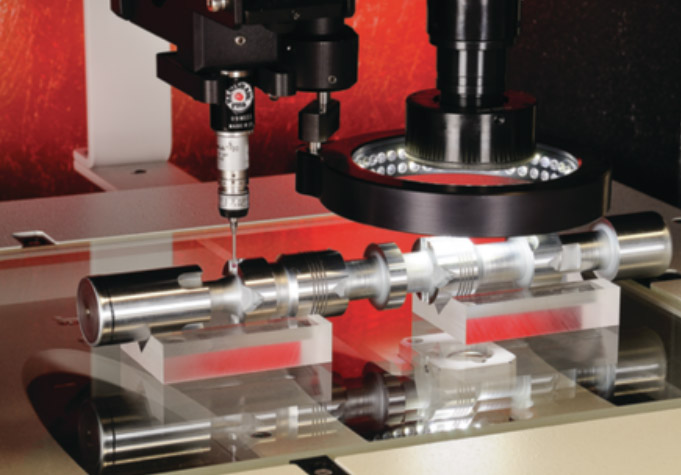

Transports are driven on air bearings by hi-speed (up to 30″ per second), zero maintenance, balanced line motors, or precision mechanical linear bearings, which are close-looped to precision hi-resolution scales in all three axes.

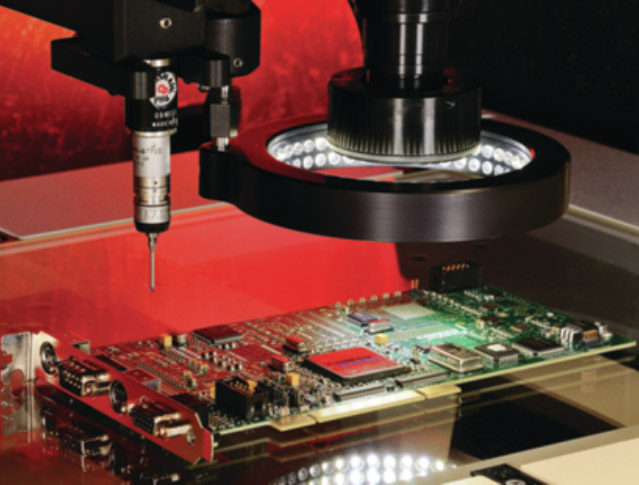

LF series features 3 LED light function with the application of the 12:1 Zoom Optics. They included the LED surface ring illumination, LED transmitted illumination, and LED coaxial illumination.

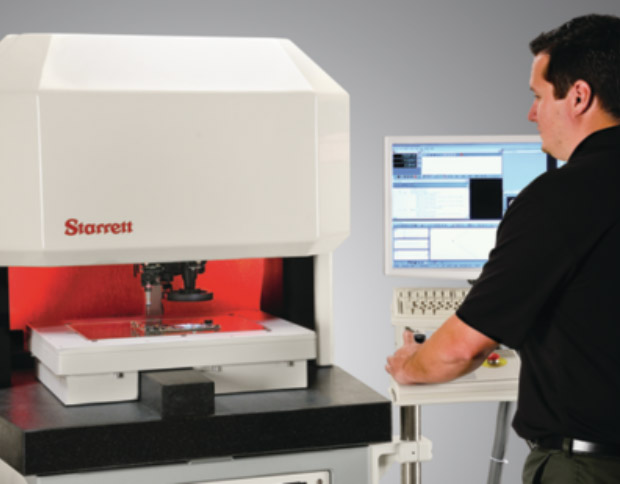

Massive granite base, bridge and mechanical or air-bearing ways for superior mcahine stability and precision. Also with the adjustable ergonomic workstation including a compact control panel and standard keyboard.
Transports are driven on air bearings by hi-speed (up to 30″ per second), zero maintenance, balanced line motors, or precision mechanical linear bearings, which are close-looped to precision hi-resolution scales in all three axes.
LF series features 3 LED light function with the application of the 12:1 Zoom Optics. They included the LED surface ring illumination, LED transmitted illumination, and LED coaxial illumination.
Massive granite base, bridge and mechanical or air-bearing ways for superior mcahine stability and precision. Also with the adjustable ergonomic workstation including a compact control panel and standard keyboard.

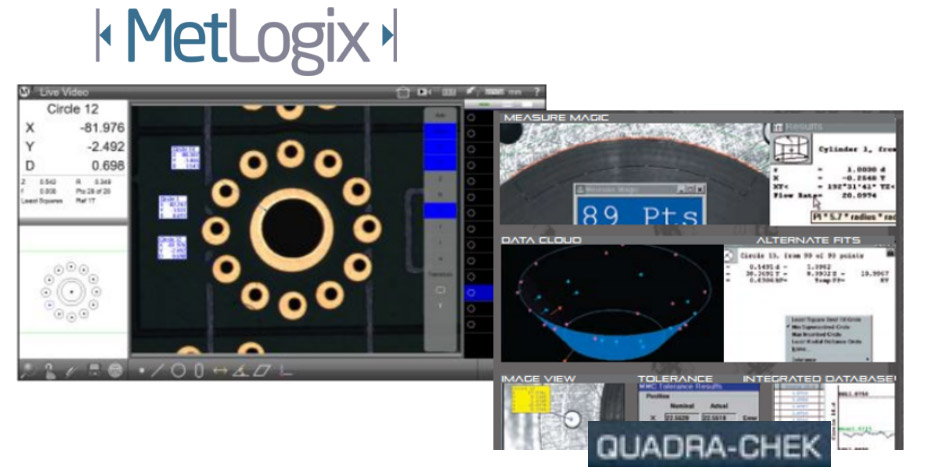

User can choose to suit up with the powerful control panel software from MetLogix, M3 or the more-advanced and powerful software technology from Quadra-Chek, QC5300
| Feature/Series | LF713 | LF463 |
| System Type | Floor Standing | Floor Standing |
| Part View | Vertical | Vertical |
| X-Y-Z Travel(in) | 28″ x 24″ x 8″ | 18″ x 12″ x 8″ |
| X-Y-Z Travel (mm) | 711 x 610 x 200 | 460 x 305 x 200 |
| Z Axis Measuring | Standard | Standard |
| CNC | Standard | Standard |
| X-Y Accuracy(µm) | E2= 2.5µm + 5L/1000 | E2= 2.5µm + 5L/1000 |
| Z Accuracy(µm) | E1= 2.5 µm + 5L/1000 | E1= 2.5µm + 5L/1000 |
| Scale Resolution | 0.1 µm | 0.1 µm |
| Multi-Sensor Compatible | Yes | Yes |
| Base | Granite | Granite |
| Control System / Software | M3 or QC5300 | M3 or QC5300 |
| Display | 21″ Touchscreen PC or 24″ Monitor | 21″ Touchscreen PC or 24″ Monitor |
| Zoom Optics- Standard | 6.5:1 | 6.5:1 |
| Zoom Optics-Optional | 12:1 | 12:1 |
| Digital Video Camera | 1 MP Color | 1 MP Color |
| Surface Ring Illumination | LED | LED |
| Transmitted Illumination | LED | LED |
| Coaxial Illumination | LED | LED |
| Auxiliary Lenses(Optional) | 0.5x, 1.5x, 2.0x | O0.5x, 1.5x, 2.0x |
| Machine Pedestal and Point of Control Cart/Arm | Standard | Standard |
| Video Pixel Calibration Standard | Standard | Standard |
Contact us today to inquire about the Starrett LF Series and enhance your measurement capabilities.
