Starrett Manual Vision Measuring System HDV Series

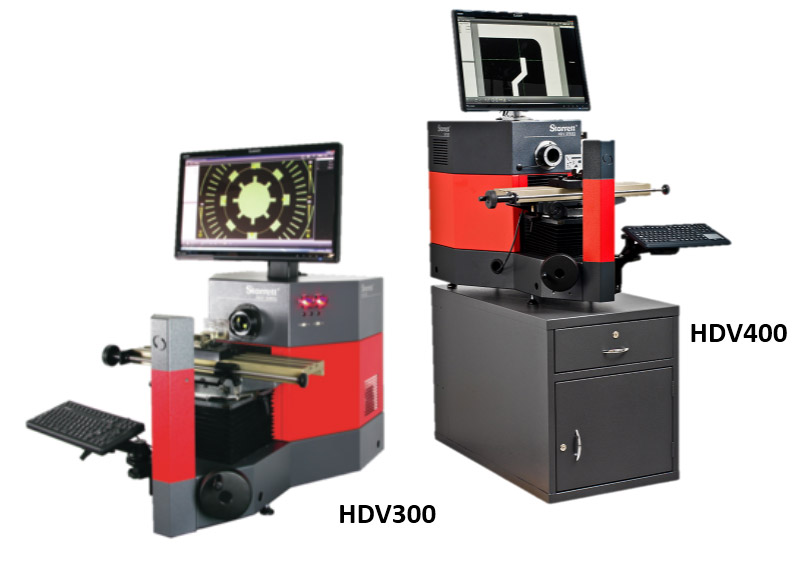

Two models available

HDV series features two models available which are HDV300 (X-Y travel of 300mm x 150mm) and HDV400 (X-Y travel of 400mm x 150mm).

HDV series features two models available which are HDV300 (X-Y travel of 300mm x 150mm) and HDV400 (X-Y travel of 400mm x 150mm).

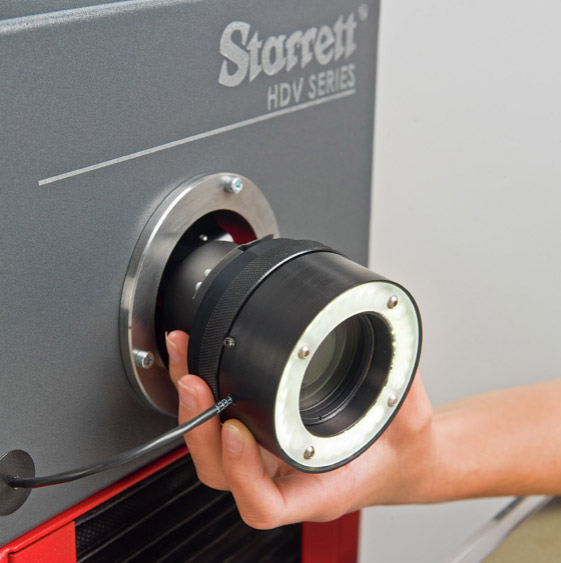

Interchangeable Lens Mounting System

The heart of the system centers on a uniquely designed interchangeable lens mounting system coupled to a hi-resolution color digital video camera (patent pending). Available with a choice of seven telecentric lenses for micron-level resolution and optical distortion as low as 0.001% for accurate Field-of-View (FOV) measurements.

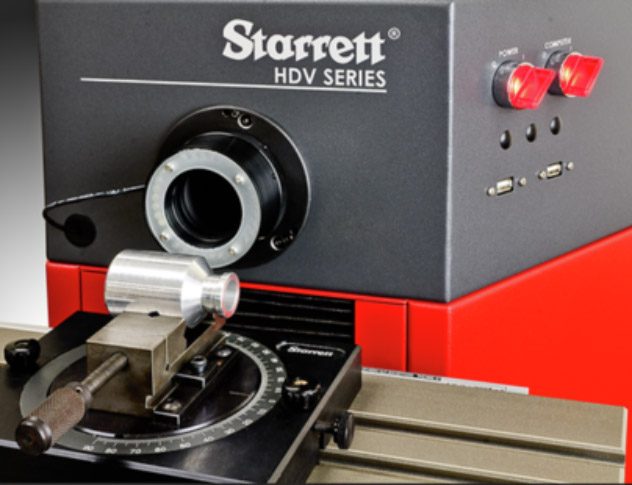

High Resolution Image

Combination of 5MP color camera (2448 x 2058 pixels) with the LED illumination for surface and profile lighting to produce high resolution image for higher accuracy of measurement.

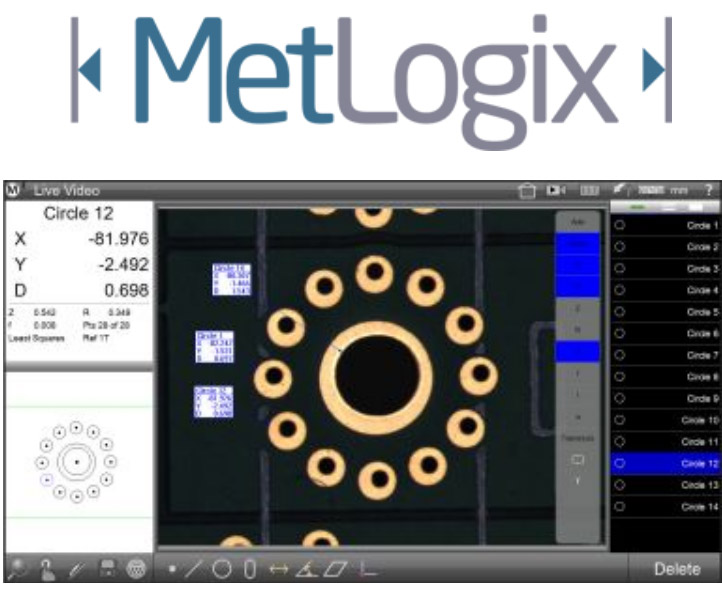

Integrated with powerful metlogix control system software

HDV series are suit up with the powerful control system software from Metlogix, M3. The M3 software has an advance functions like DXF importing and CAD comparison, auto edge detection, and works with active part views and live video feeds.
