LINSHANG - Ultrasonic Thickness Gauge
Brand : Linshang
Model : LS215
Products Descriptions :

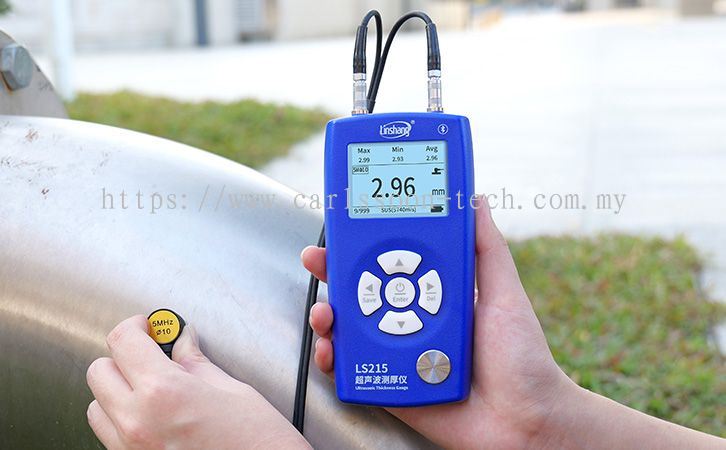

LS215 ultrasonic thickness gauge adopts the pulse echo measurement principle to perform nondestructive testing on steel, aluminum, copper, plastics, ceramics, glass, and other sound-conductive materials. With a display resolution up to 0.01 mm, the LS215 meets the accuracy requirements verified by the national metrology institute. Four probes are available—standard, micro-diameter, coarse-crystal, and high-temperature—which can be freely selected based on application needs.
Specifications :
| Parameters | Values |
| Resolution | 1-100mm：0.01mm 100-320mm：0.1mm |
| Sound Velocity Range | 1000~19999 m/s |
| Display | 240 * 160 dot matrix LCD |
| Units | mm/inch |
| Power | 2pcs of 1.5V AA alkaline battery |
| Host Size | 142*72*28 mm |
| Weight | About 230g |
| Operation Temperature Range | -10~60℃，0~85%RH（No condensation） |
| Storage Temperature Range | -10~60℃，0~85%RH（No condensation） |
| Probe | Standard Probe | Micro-diameter Probe | Coarse Crystal Probe | High Temperature Probe |
| Probe Model | 5MHZφ10 | 7MHZ PT-06 | 2MHZ ZT-12 | 5MHZ GT-12 |
| Application | Measure conventional workpieces | Measure curved surfaces and small workpieces |
Cast iron and some materials with large crystal particles |
Measure high temperature workpieces |
| Minimum measuring area | φ10mm | φ6mm | φ12mm | φ12mm |
| Probe size | φ18*26mm | φ15*25mm | φ18*28mm | φ43*48mm |
| Measuring Range (45#steel) |
1-320mm | 0.75-80mm | 3-200mm | 3-200mm |
| Accuracy (H is the standard value) |
H<10mm: ±0.05 H≥10mm: ±0.5%H |
H<10mm: ±0.05 H≥10mm: ±0.5%H |
H<10mm: ±0.1 H≥10mm: ±1%H |
H<10mm: ±0.05 H≥10mm: ±0.5%H |
| Exposure temperature | -10~60℃ | -10~60℃ | -10~60℃ | -10~500℃ |
| Pipe measurement lower limit(45# steel) |
φ20*3mm | φ20*2mm | φ30*4mm | φ30*4mm |
