ZADETECTOR Solar-powered gas detector: 马来西亚的首选 MTM Precision Sdn Bhd

详情

Detected gas	Combustible/toxic gas
Detection method	Natural diffusion type
Power supply method	Solar power supply
Battery specification	3.6V/10000mAh

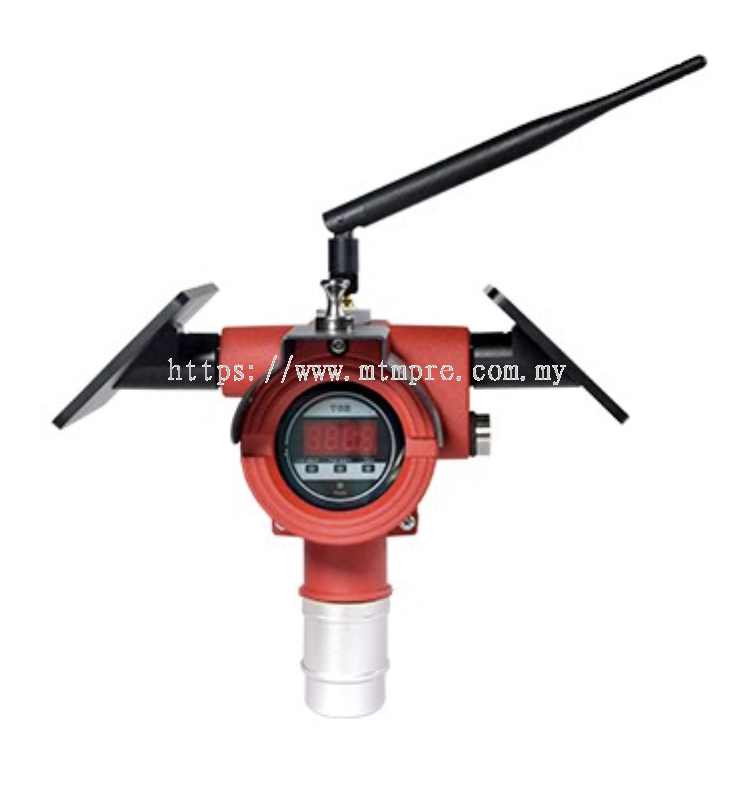

The solar gas detector adopts high-performance sensors and a new generation of electronic technology. The detector can detect more than 300 kinds of combustible and toxic gases, and is applicable to outdoor places such as chemical industry, petrochemical industry, metallurgy, agriculture, etc., where combustible, toxic and harmful gases are generated.

The gas detector is powered by solar energy and does not need to be provided with an additional power supply. It can also directly upload to the Internet of Things platform to monitor the on-site data in real time.

Functions Features

Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Detected gas	Combustible/toxic gas
Detection method	Natural diffusion type
Power supply method	Solar power supply
Battery specification	3.6V/10000mAh
Solar energy	2X1W
Camera	30W pixels
Sensitivity	Level 1
Response time	< 30s
Preheating time at startup	60s
Flame detection delay	3S
Ambient temperature	- 10℃ - 55℃
Relative humidity	< 93% RH
Explosion-proof method	Flameproof type
Explosion-proof grade	Ex d IIC T6 Gb
Protection grade	IP67
Indicator light	Green indicates early warning, red indicates alarm, blue indicates data upload, and yellow indicates fault
Pressure limit	86KPa - 106KPa
Application place	Used in dangerous places with explosive combustible gas of class IIA - IIC and temperature group of T1 - T6

Common Gas Parameter listing
Gas detected	Measuring Range	Optional Range	Resolution Rat	Response Time
LEL -combustible gas	0-100%LEL	0-100%VOL（Infrared or catalytic ）	1%LEL/1%vol	≤10s
carbon monoxide	0-1000PPm	0-500/2000/5000PPm	0.1/1PPm	≤10s
TVOC	0-100PPM	0-100PPM	0.1PPm/1PPM	≤15s
hydrogen	0-100%LEL	0-1000PPM	1%LEL/1PPM	≤15s
natural gas	0-100%LEL	0-100%LEL	1%LEL	≤10s
Oxygen-O2	0-30%VOL	0-30%、0-100%VOL	0.1%vol	≤10s
ozone	0-10PPm	0-20、100PPm	0.01PPm/0.1PPM	≤15s
hydrogen sulfide-H2S	0-100PPm	0-50、200、1000PPm	1/0.1PPm	≤10s
Methane-CH4	0-100%LEL	0-100%VOL	1%LEL/1%vol	≤10s
fluorine	0-10PM	0-1、10PPM	1/0.1PPm	≤15s
hydrogen chloride	0-20PPm	0-20/50PPm/100PPM	0.01/0.1PPm	≤15s
Nitrogen-N2	0-30%VOL	0-30%VOL、100%VOL	0.1%LEL/1PPM	≤10s
hydrogen	0-100%LEL	0-1000PPm	1%LEL/0.1PPm	≤15s
chlorine	0-20PPm	0-10、100PPm	0.1PPm	≤15s
ammonia gas	0-100PPm	0-50、500、1000PPm	1/0.1PPm	≤15s
oxynitride	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
methanal	0-20PPm	0-50、100PPm	1/0.1PPm	≤15s
sulfur dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
nitric oxide	0-250PPm	0-500、1000PPm	1PPm	≤15s
nitrogen dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
phosphine	0-20PPm	0-20、100PPm	0.1PPm	≤15s
acrylonitrile	0-100PPM	0-100PPm	0.1/1PPm	≤15s
carbon dioxide	0-5000PPm	0-1%/5%/10%VOL(Infrared )	1PPM/0.01%VOL	≤15s
hydrogen fluoride	0-10PPm	0-1、10、50、100PPM	0.01/0.1PPm	≤15s
Xylene/methylbenzene	0-20PPm	0-5、10、50、100PPm	0.01/0.1PPm	≤15s
oxirane	0-100PPm	0-100PPm	1/0.1PPm	≤15s
