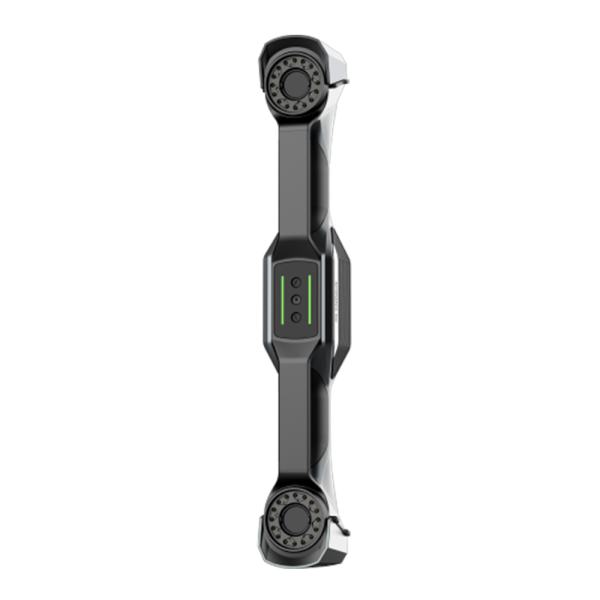

SHINING 3D FreeScan UE Nova FreeScan Series is a large-scale, wireless metrology-grade 3D scanner by MSP Metrology (M) Sdn Bhd from SHINING 3D China.
FreeScan UE Nova sets a new standard in 3D scanning with its unmatched field of view, enabling highly efficient capture of large objects and significantly enhancing portability, productivity, and versatility.
With an extra-large FOV of 2.6 × 2.2 m and a maximum scanning distance of 2.6 m, it is ideal for large-scale projects.
Utilizing SHINING 3D’s patented video-based photogrammetry without coded markers.
50 laser lines for rapid scanning, enabling fast data capture and significantly reducing scanning time.
Offers the flexible field of view depending on 3 selectable working range, adapt to different on-site operation conditions.
Automatically adjusts mesh resolution based on the object’s curvature, ensuring clearer and more detailed features.
Compatible with various materials, including normal, black and reflective surface.
.png "Wide-Range Laser Scan Vast and Fast")

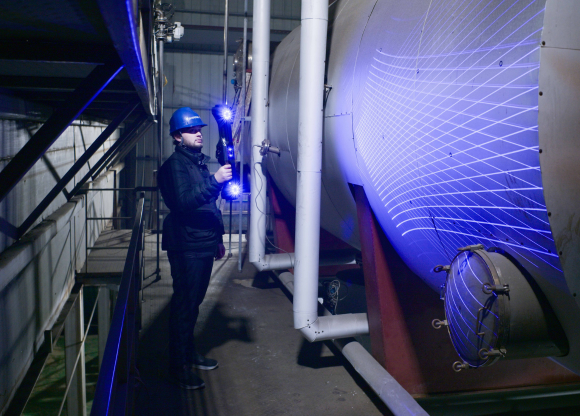

FreeScan UE Nova offers expansive coverage, delivering unparalleled efficiency and flexibility.
50 Laser Lines for rapid scanning, enabling fast data capture and significantly reducing scanning time.

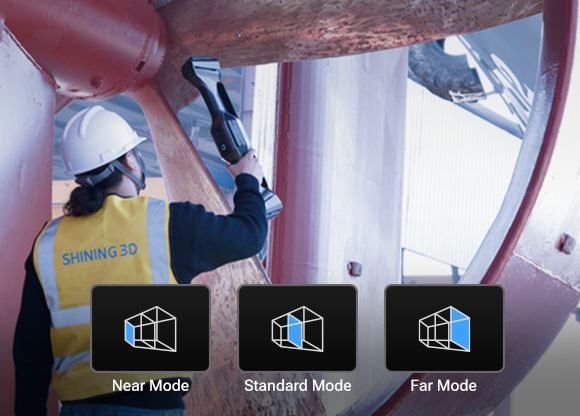

FreeScan UE Nova offers the flexible field of view depending on three selectable working range, adapt to different on-site operation conditions.

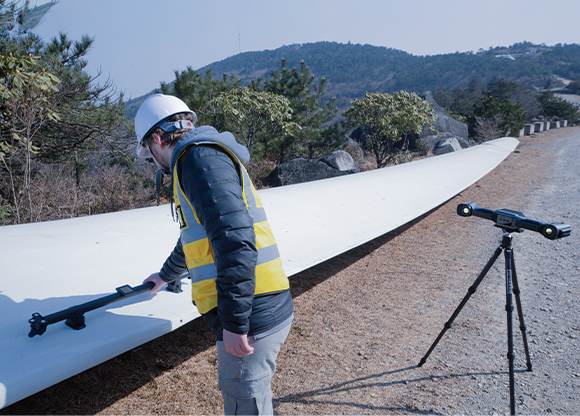

Utilizing SHINING 3D’s patented video-based photogrammetry (VPG) without coded markers, it integrates with a calibration rod for real-time marker verification, delivering volumetric accuracy of 0.072 + 0.012 mm/m for more efficient and reliable data acquisition.

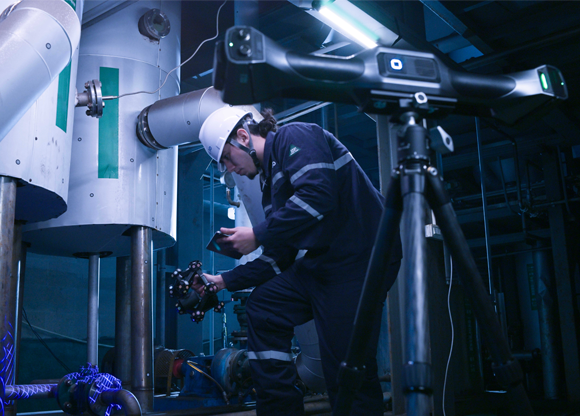

Elevate your capabilities and tackle even the most complex work environments with FreeScan Trak Nova. Click below to discover more!
At SHINING 3D, we don’t just provide devices – we deliver customized solutions, global support, and a commitment to your success. From intuitive tools to calibrated accuracy, we’re here to empower your work.
Automatically adjusts mesh resolution based on the object’s curvature, ensuring clearer and more detailed features.
Users can directly access the quality of scanned markers during photogrammetry and check data completeness during scanning by observing it.
Integrated inspecttion module, certified by PTB, for reliable, high-quality full-size inspection.
Compatible with various materials, including normal, black and reflective surface.
| Technical Data | |||
|---|---|---|---|
| Volumetric accuracy with VPG | 0.072 + 0.012 mm/m | Flexible FOV | Up to 2600 x 2200 mm |
| VPG | Marker-free photogrammetry | Scan Speed | 50 laser lines for rapid scanning |
| Working Range | Near Mode (300 ~ 800 mm), Standard Mode (600 ~ 1500 mm), Far Mode (1200 ~2600 mm) | Maximum Scanning Distance | 2.6 m |
| Large-scale scanning coverage | FOV of 2.6 × 2.2 m | Laser Lines | 50 Laser Lines |
| Integrated Wireless Modules | Real-time data transmission with high frame rates and stability | Swappable Batteries | Detachable and hot-swappable batteries |
| Built-In Computing Modules | Rapid and efficient processing | Material Adaptability | Compatible with various materials, including normal, black and reflective surface |
| Inspection Module | Integrated inspecttion module, certified by PTB | Acceptance test | VDl/VDE 2634 Part3 (certificated in ISO 17025 certificated accuracy lab) |
FreeScan UE Nova is designed for large-scale, wireless metrology-grade 3D scanning applications.
Yes, although UE Nova has a maximum data capture range of 2.6 meters, the software offers three selectable working ranges to adapt to different environments: Near (300 ~ 800 mm), Standard (600 ~ 1500 mm), and Far (1200 ~ 2600 mm). This flexibility allows it to function effectively in narrow spaces.
The maximum object size that UE Nova can scan depends on your PC’s performance. To accommodate larger measurements, multiple projects can be set up and merged, effectively extending the scanning capability.
Both wired and wireless modes have equivalent data transmission bandwidth under full operating conditions, ensuring consistent scanning speed in both modes.
The UE Nova is designed for outdoor scanning and comes with lens filters to enhance its performance in outdoor environments.
Contact us today to inquire about the SHINING 3D FreeScan UE Nova® FreeScan Series and enhance your 3D scanning capabilities.
