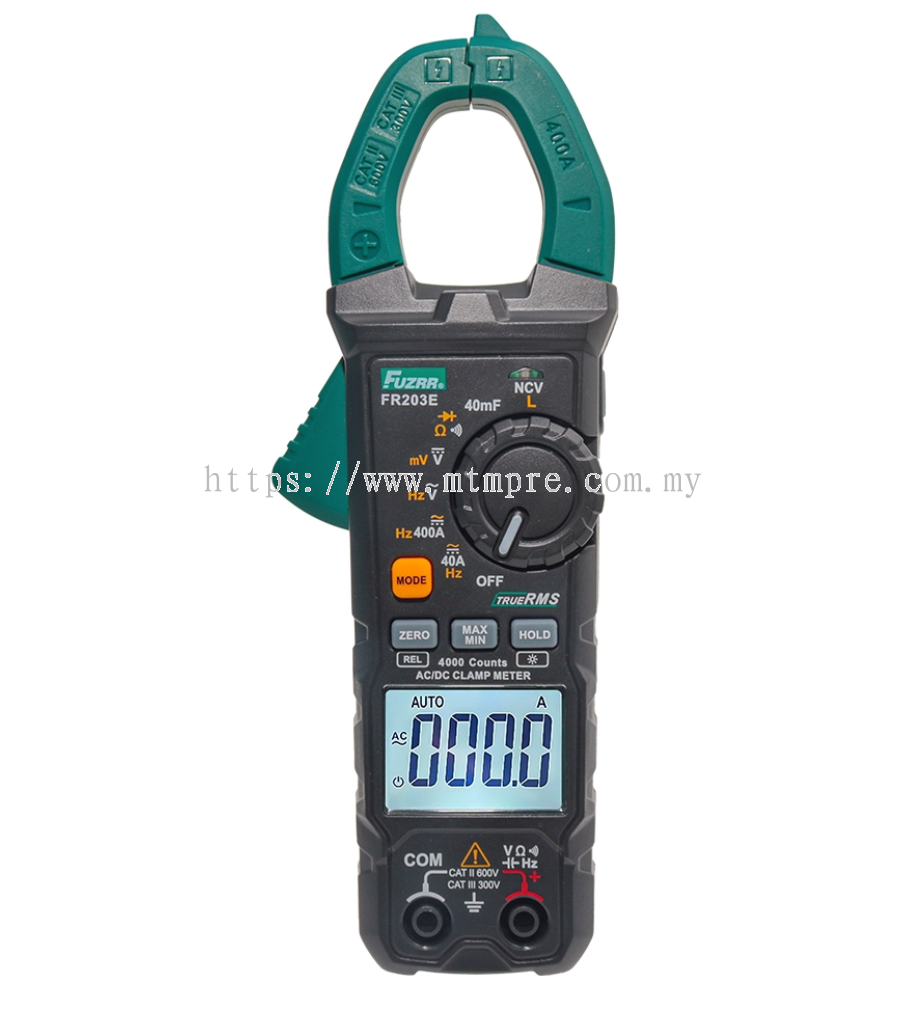

New technology digital clamp meter, hand-held non-slipergonomic design, with multi-function, high precision, highperformance, anti-drop, safety and stability, etc., can accuratelymeasure AC/DC current,AC/DC voltage, high voltage alarm,frequency , continuity, diode, resistance, capacitor, NCv and Livewire detection, etc., and has misoperation circuit protection,suitable for electrical maintenance and repair of professionalelectricians, and is a must-have for factory and distributioncontrol system maintenance.
Electrician power distribution technology installation and maintenance. Industrial construction, factory production and distribution system installation, maintenance and repair.
| Function / Model | FR203E | FR204E | Accuracy |
|---|---|---|---|
| DC Current (A) | 40A / 400A | 60A / 600A | ±(2%+5) |
| AC Current (A) | 40A / 400A | 60A / 600A | ±(2%+5) |
| DC Voltage (V) | 600V | 600V | ±(0.5%+3) |
| AC Voltage (V) | 600V | 600V | ±(0.8%+3) |
| LowZ AC Voltage (V) | – | 600V | ±(1.5%+5) |
| ACV / Bandwidth (Hz) | 400Hz | 1kHz | – |
| ACA / Bandwidth (Hz) | 60Hz | 60Hz | – |
| Frequency (ACV Hz) | 40kHz | 60kHz | ±(0.5%+5) |
| Resistance (Ω) | 400Ω~400kΩ | 600Ω~600kΩ | ±(1%+5) |
| 4MΩ~40MΩ | 6MΩ~60MΩ | ±(2%+5) | |
| Capacitance (F) | 40nF / 400uF | 60nF / 600uF | ±(4%+5) |
| 40000uF | 60mF | ±(8%+5) | |
| Temperature (℃) | – | (-50℃~1000℃) | ±(1.5%+4) |
| Temperature (! ) | – | (-58! ~1832! ) | ±(2%+5) |
| FEATURES | |||
| Display Counts | 4000 | 6000 | |
| ACV LowZ | – | ● | |
| Jaw Opening | Φ28mm | ||
| Auto Range | ● | ||
| True RMS | ● | ||
| Continuity / Diode | ● | ||
| Auto power off | ● | ||
| Backlight / Torch | ● | ||
| Battery | AAA 1.5V × 2 | ||
| Category Ratings | CAT III 300V / CAT II 600V | ||
