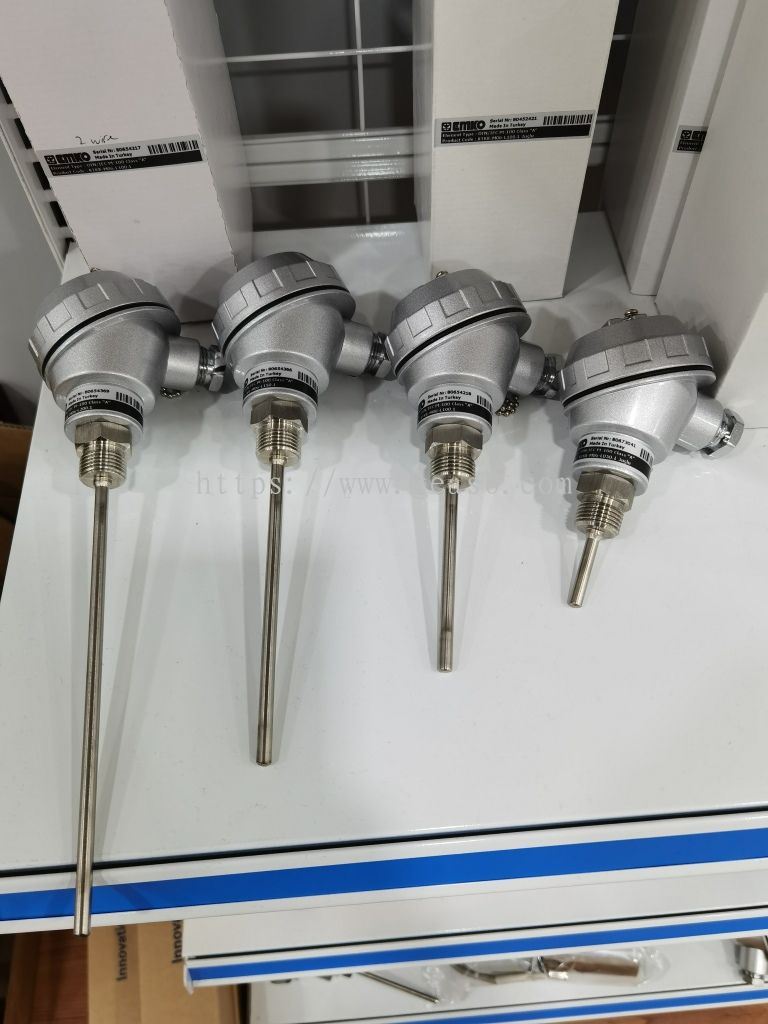

The Emko RTKR series is the specific product line that features a robust industrial terminal head (often referred to as a "big head") and optioning for a high-accuracy DIN EN60751 Class A Pt100 sensing element.
Core Technical Specifications
The standard configuration for this heavy-duty industrial assembly includes the following core components:
| Feature |
Specification Details |
| Sensing Element |
1x Pt100 RTD resistance thermometer |
| Accuracy Class |
Class A (Conforming to DIN EN60751) |
| Temperature Range |
-50°C to +500°C |
| Enclosure Head |
Large aluminum/die-cast connection head for termination |
| Thermowell/Tube |
Polished AISI 304 Stainless Steel (high corrosion resistance) |
| Process Connection |
G1/2 inch male thread mounting |
| Probe Diameter |
6 mm |
Standard Length Variations
Depending on your immersion depth requirements, the RTKR class is widely distributed in three standard probe lengths:
- 50 mm Length: Part Number RTKR-M06-L050.1
- 100 mm Length: Part Number RTKR-M06-L100.1
- 150 mm Length: Part Number RTKR-M06-L150.1
Why Choose the Class A Connection Head Model?
- Precision Accuracy: Class A elements provide a tight tolerance (±0.15°C at 0°C), which is critical for food processing, chemical, and pharmaceutical sectors.
- Transmitter Ready: The spacious "big head" housing allows you to easily install an integrated 4-20mA temperature transmitter block inside the terminal cap if you need a scaled current output over long distances.
- Environmental Protection: The terminal box prevents moisture, dust, and mechanical stress from degrading the raw wire connections inside.
Are you looking to replace an existing sensor, or do you need help setting up this Pt100 with a specific temperature controller or 4-20mA transmitter?
