SANBO/WP -EY253 LED WEATHER-PROOF: Top Choice in Selangor, Malaysia, Kuala Lumpur (KL), Shah Alam ELM Lighting Sdn Bhd

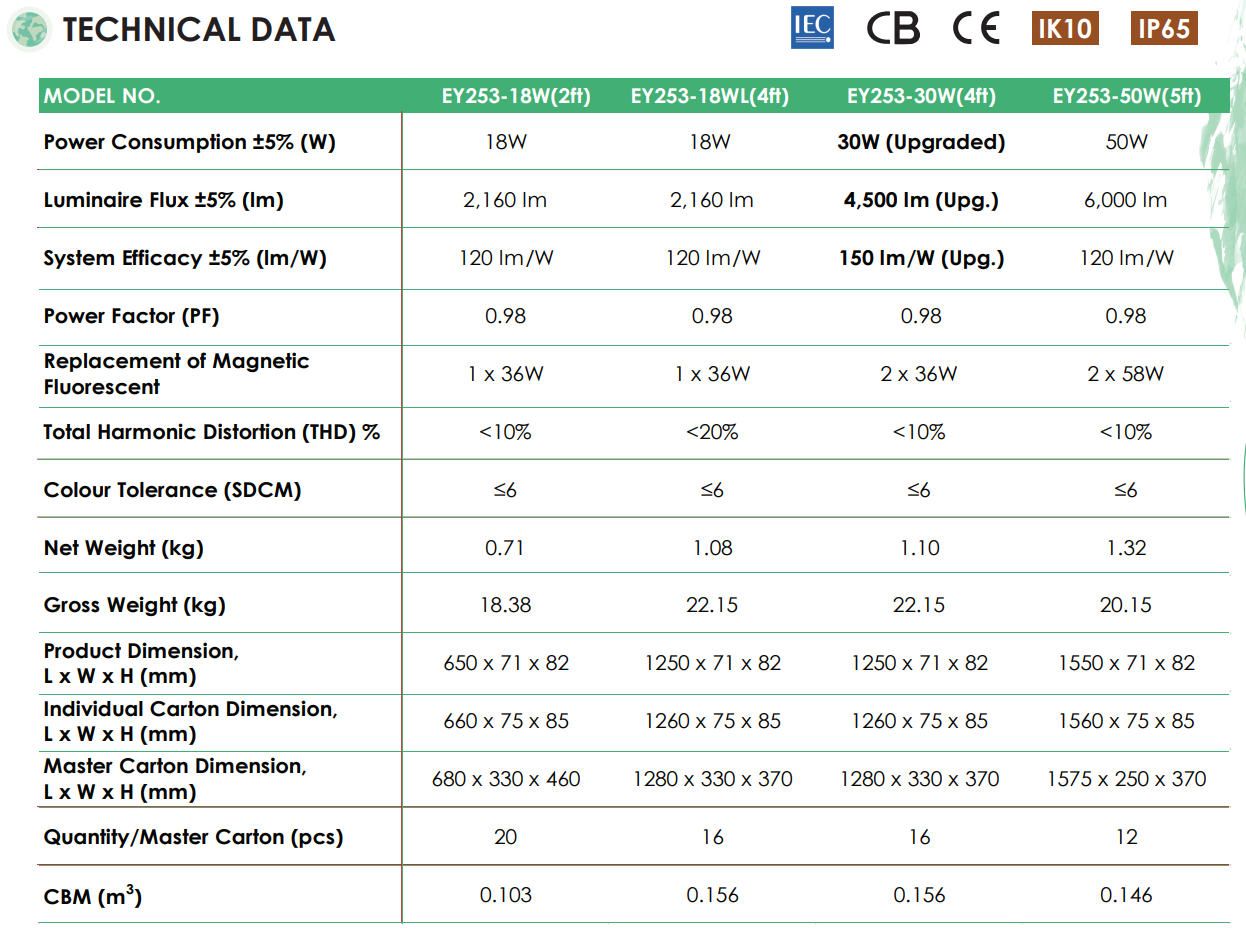

Specifications

Wattage Range: 18W, 30W & 50W
Input Voltage: 200 - 240Vac (50/60Hz)
Power Factor: 0.98
Insulation Class: Class I
LED Driver: Flicker Free - OSRAM OT/FT
Optional Features / Accessories: - Series Connection Double End Plug-in Version-EY253-36W-SC - Motion sensor - DALI / 1-10V Dimming Control
Operating Temperature: -30C to +40C
LED Type: SMD 2835 with TM21 and LM80
Correlated colour temperature (K) ：: Standard 4000K / 5000K (other upon request)
Color Rendering Index (CRI): RA > 80 RA > 90 upon request
Life Time Residual Flux: (L70) > 50,000 hours @Ta= 40C
Optical System: ~120degree Opal PC Extrusion Diffuser
Housing Material: PC Extrusion and PC Side Cover UL-94 Fire Retardant Grade UV stabilized Polycarbonate
Ingress Protection (IP): IP 65
Impact Protection (IK): IK08
Type Test Certified (Luminaire): CB Scheme IEC 60598-1, EN 60598-1, IEC & EN 605928-2-1, IEC/EN 62471 EN 62493
EMC Certified: EN 61000-3-2, EN 61000-3-3, EN 55015, EN 61547
LED Compliance Test: IESNA LM-80 TM-21
Ingress Protection Test: Accord to IEC 60598-1 (IP65)
Impact Resistance Test: IEC 62262 ( IK08)
RoHS: IEC 62321
Application: Carpark, Staircase, Canopy, Garden Shed, Walkway, Corridors, Factory, Warehouse, Underpass, VBC
